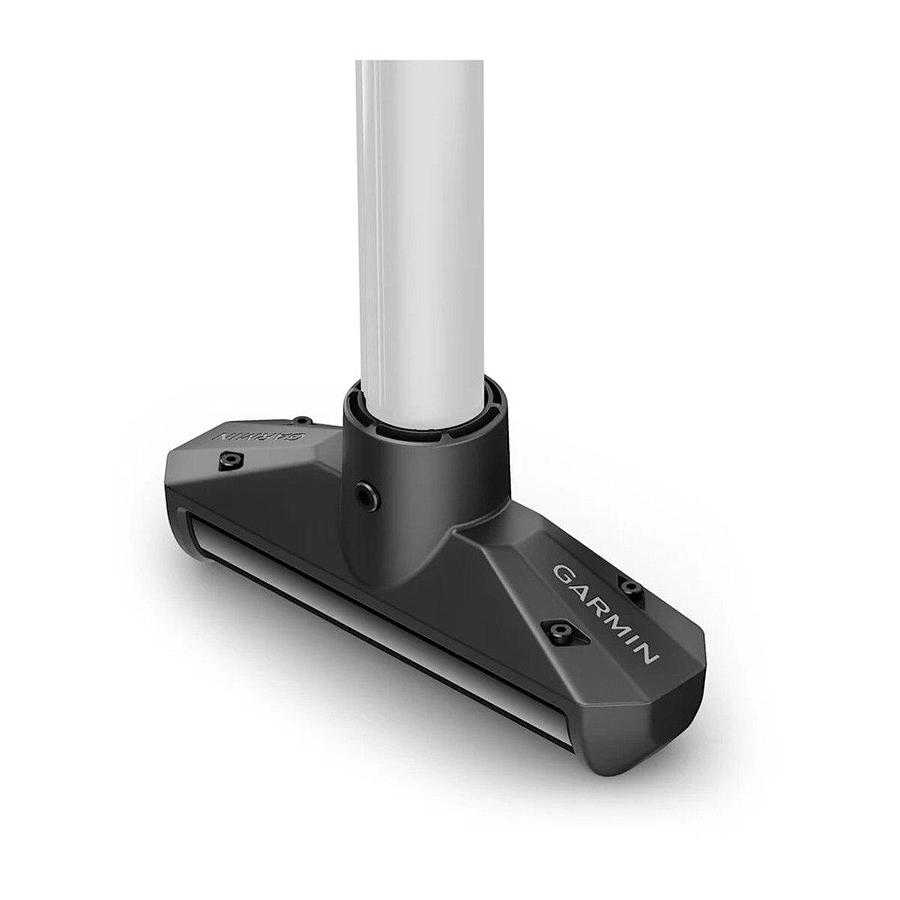

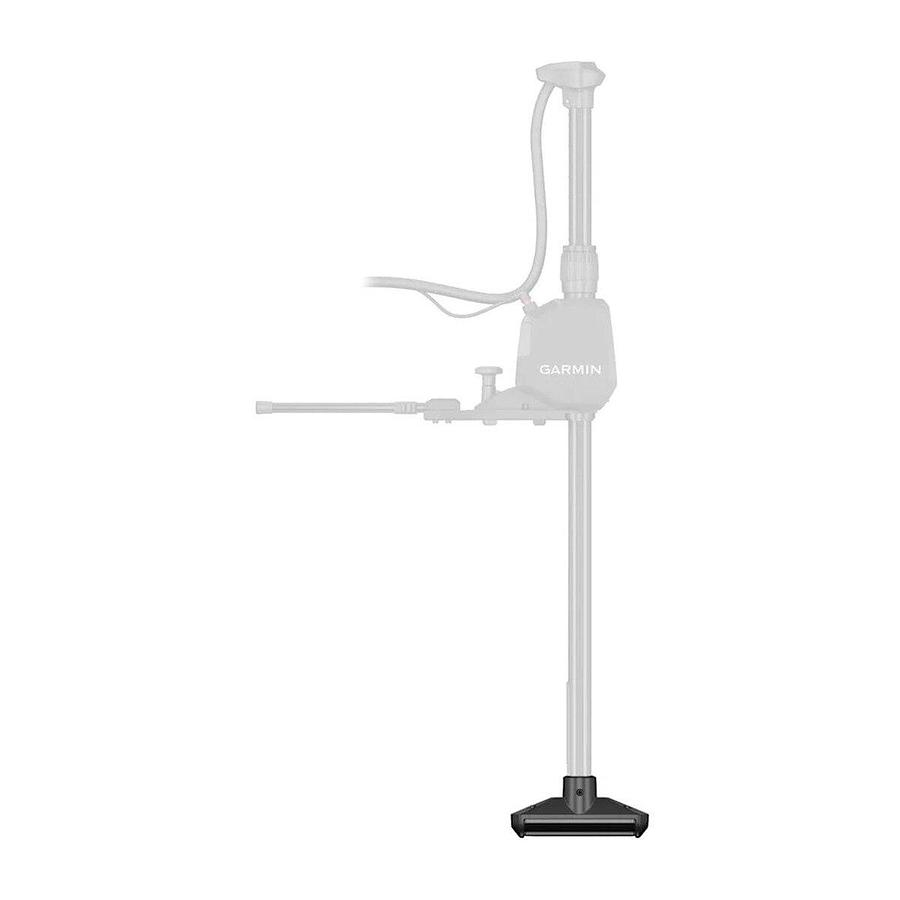

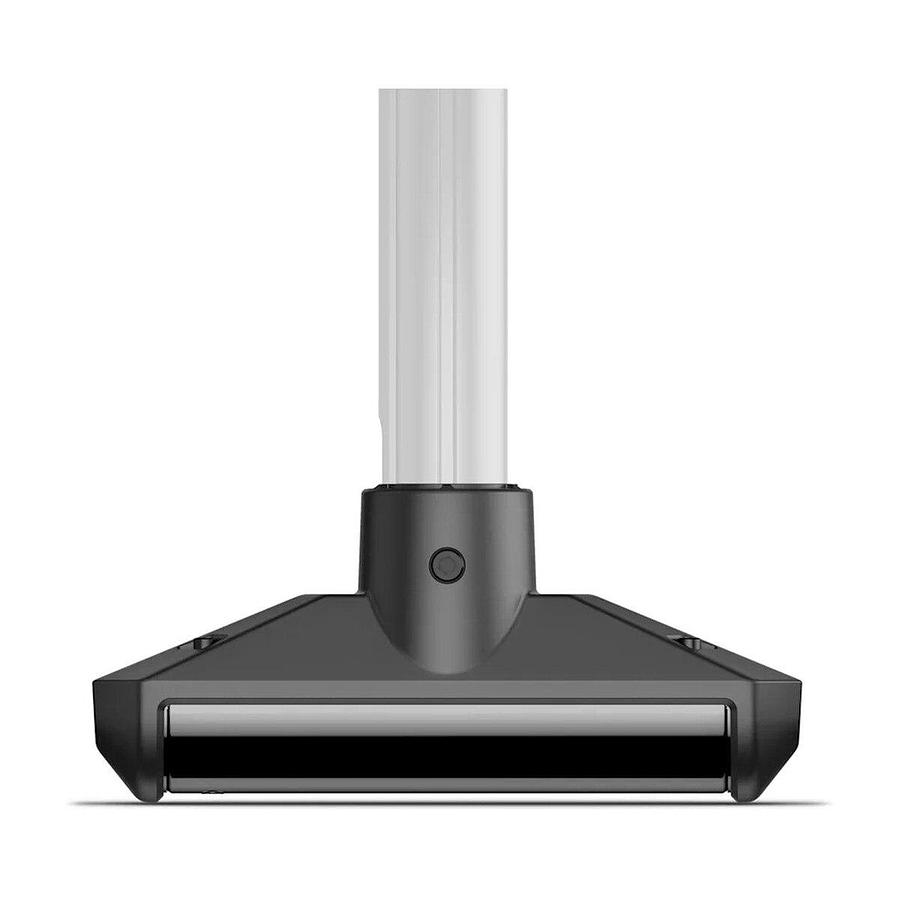

Garmin GT360UHD Transducer for Spy Pole

Garmin GT360UHD Transducer for Spy Pole

Model: 010-03012-10

CAPTURE CRISP, CLEAR 360-DEGREE IMAGERY

SEE A BIRD'S-EYE VIEW OF WHAT’S BENEATH THE SURFACE

PAIR WITH YOUR COMPATIBLE GARMIN CHARTPLOTTER

GET A LIVE WINDOW INTO 3D IMAGERY WITH LIVESCOPE™ SONAR

TRUE MOTION TECHNOLOGY INTEGRATES WITH GPS TO KEEP SCANS TRUE TO LOCATION

See the underwater world like never before with the GT360UHD transducer. Mount it on Spy™ pole (sold separately) to captureOneVü™ sonar, 360 degrees of bird’s-eye imagery around your boat in 2D and 3D views — then fish that area without having toconstantly rescan. GT360UHD seamlessly integrates with GPS through True Motion technology, so your sonar scans stay true tolocation as your boat moves through the water. Combine with your LiveScope™ transducer to overlay your live sonar onto the detailedimagery for an all-new 3D view.

Specifications

Transducer frequency	OenVu/SideVu: 455 kHz, 800 kHz, 1070 kHz
Transducer power	500 W
Transducer beamwidth	Oneu/SideVu 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
Transducer maximum depth	500 ft range
Transducer cable length	20.3 ft (6.2 m)
Transducer depth/speed/temperature	Depth and Temperature
Transducer number of pins	12
Dimensions (with mount; LxWxH)	216 mm (8.5") x 58 mm (2.3") x 97 mm (3.8")
Transducer frequency	455 kHz, 800 kHz, 1070 kHz

What's in the Box:

GT360UHD 12-pin transducer

GT360UHD transducer mount for Spy™ Pole

LiveScope™ adjustable perspective shaft mount

Dogbone stabilizer

Mounting hardware

Documentation
