Garmin Spy Pole 42in Motorized Pole Mount
Description

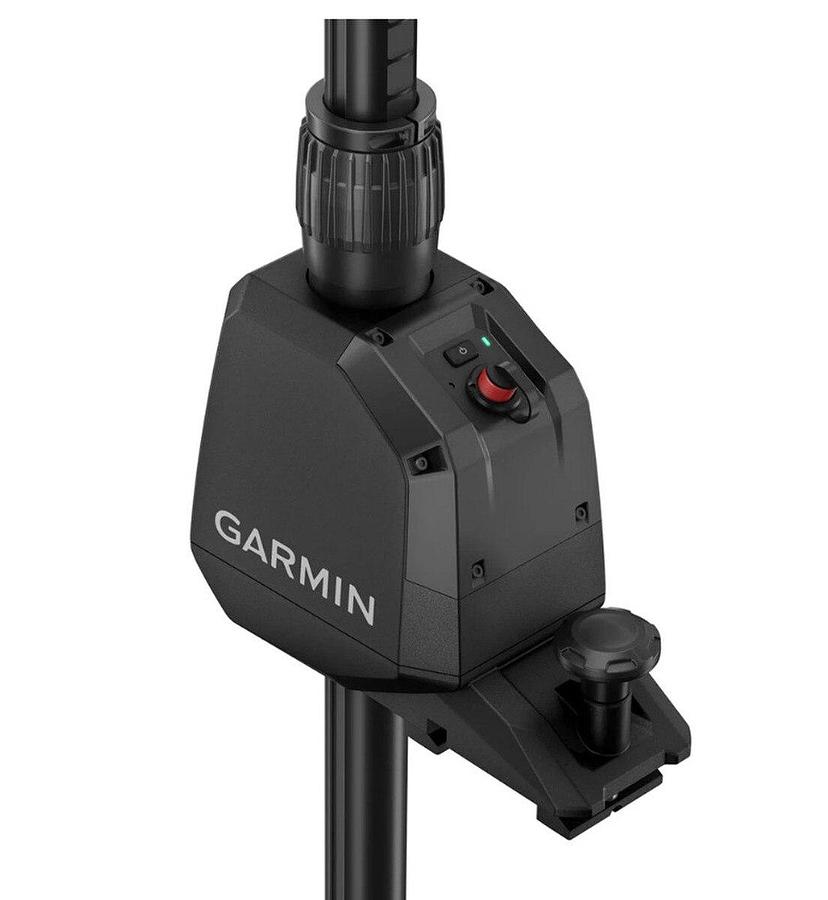

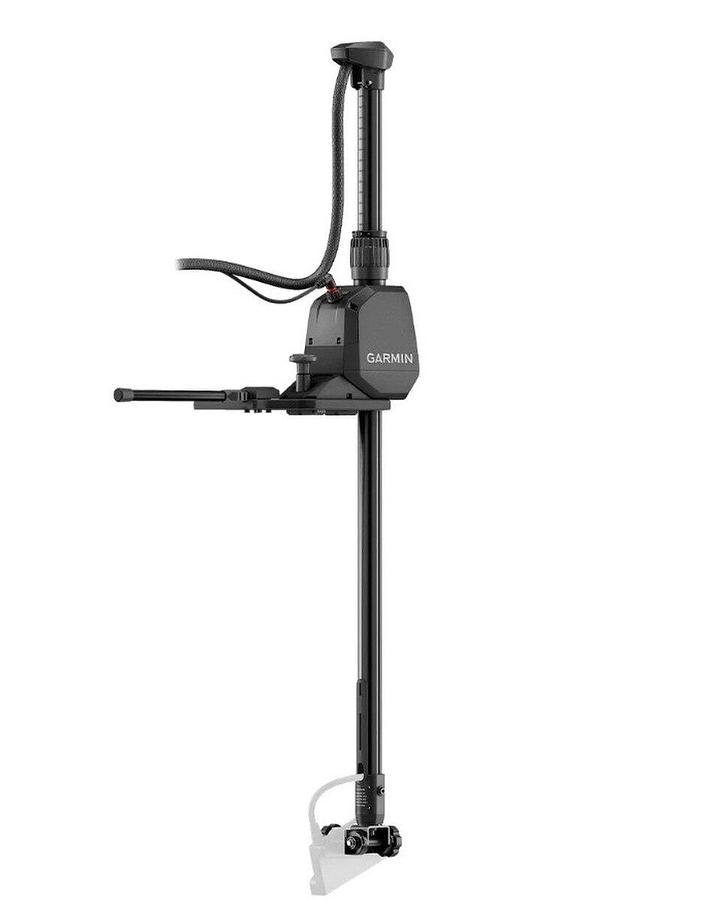

Garmin Spy Pole 42in Motorized Pole Mount
Model: 010-03012-00TAKE FULL COMMAND OF YOUR UNDERWATER VIEW: Mount your transducers to Spy pole, the revolutionary motorized sonar control, to precisely and wirelessly maneuver LiveScope™ and GT360UHD transducers.
INTUITIVE POSITIONING: Keep your boat where you want it and have full control of your LiveScope sonar from a range of control modes, including SpyLock™ point locking technology, SpyScan™ search mode and SpyLink™ control mode.

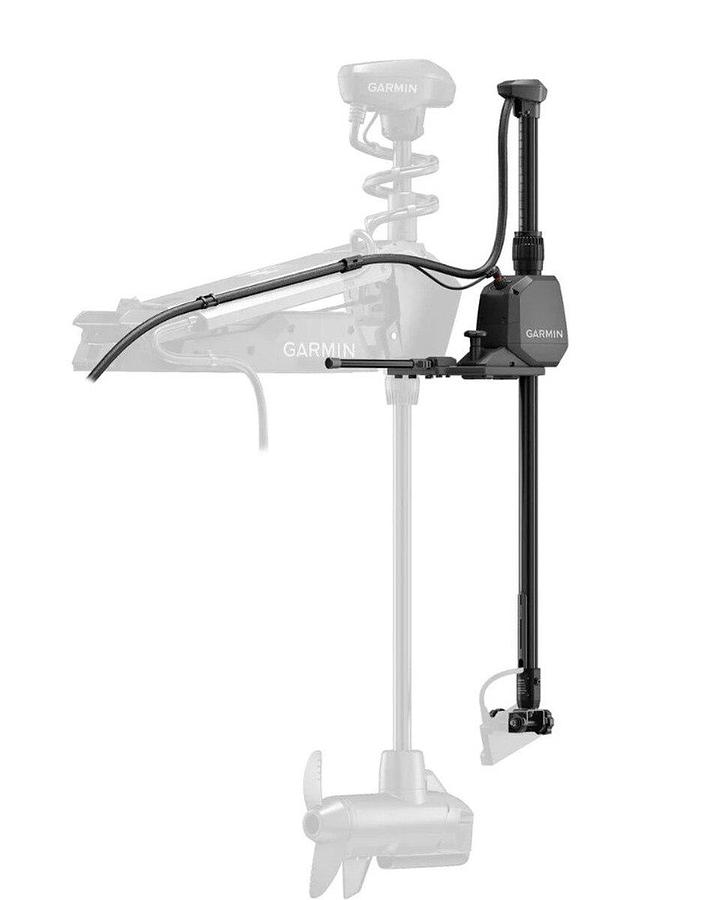

MULTIPLE MOUNTING OPTIONS: Easily mount Spy pole to your Force or Force Pro trolling motor — or mount it directly to your boat’s deck and enjoy smooth dismount with a quick-release system.
CONTROL AT YOUR FINGERTIPS: Attach the included remote to your rod or use it as a handheld to maneuver Spy pole with a simple turn of the wrist or the press of a button.
FOOT CONTROL: Use the included low-profile, easy-to-use foot control to position Spy pole, keeping your hands free to fish.
CHARTPLOTTER INTEGRATION: Configure and control Spy pole with your compatible Garmin chartplotter.
ONEVU SONAR: Mount the GT360UHD transducer to see OneVu sonar with True Motion technology. Add LiveScope to unlock an additional live overlay in 3D mode.
Specifications| General | |
| For use in | freshwater, brackish water and saltwater |
| Mount style | quick-release, reversible |
| Electric steering | Yes |
| Shaft length (from shaft cap to shaft end) | 42in |
| Adjustable shaft depth | Yes |
| Water rating (components above water) | IPX7 |
| Warranty | 3-year, limited lifetime on shaft |
| Mounting location | Force, Force Pro (included); Deck and Gunnel (accessories required) |
| Deck stabilizer rod | Yes (included) |
| Dogbone stabilizer | Compatible, required with 2 or more transducers (not included) |
| Electrical Features | |
| Power Input | Wired 2 m (6.6 ft) cable |
| Power usage | 18 W typical; 70 W max |
| Fuse | 8 A |
| Transducer Support | |

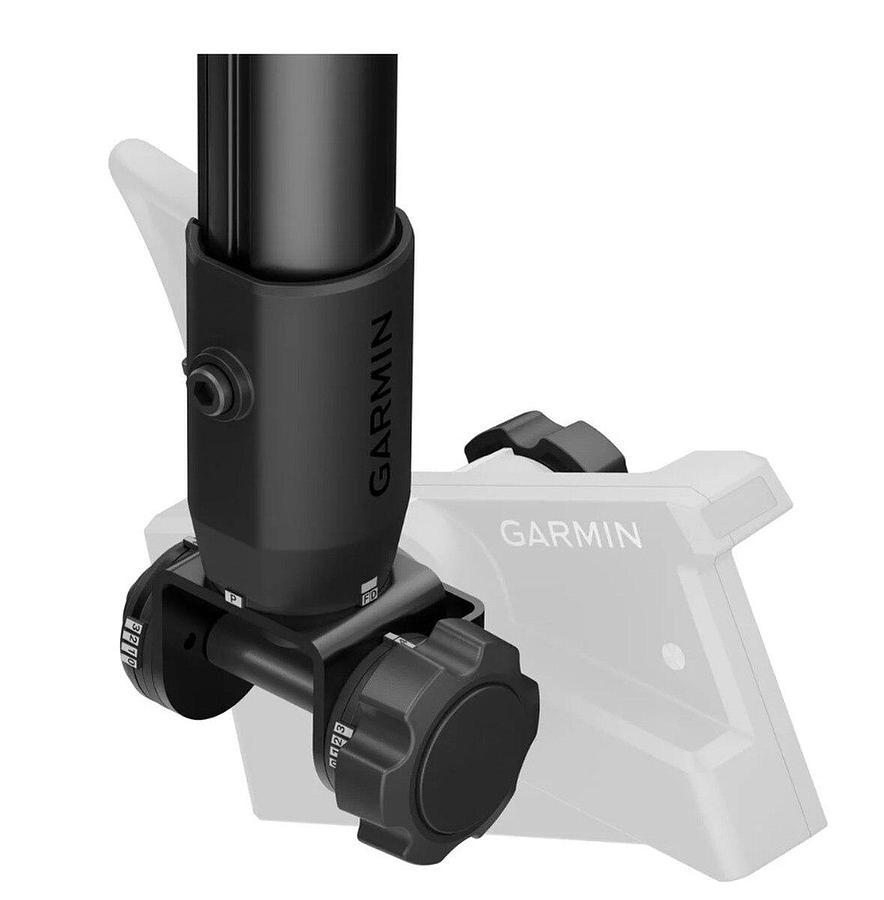

| LiveScope adjustable perspective bottom mount | Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5° |
| Supported LiveScope transducers | LVS32, LVS34, LVS62 (max of one with internal cable routing) |
| OneVu scanning transducer support | Yes |
| Internal cable routing | Yes |
| Quick-release cable kit | Yes |
| Connections | |
| Compatible chartplotters | Wireless |
| Compatible Force trolling motors | Wireless |
| Control accessories | Wireless |
| Maximum connections | 5 gesture remotes1 foot control1 heading sensor1 trolling motor1 chartplotter network |

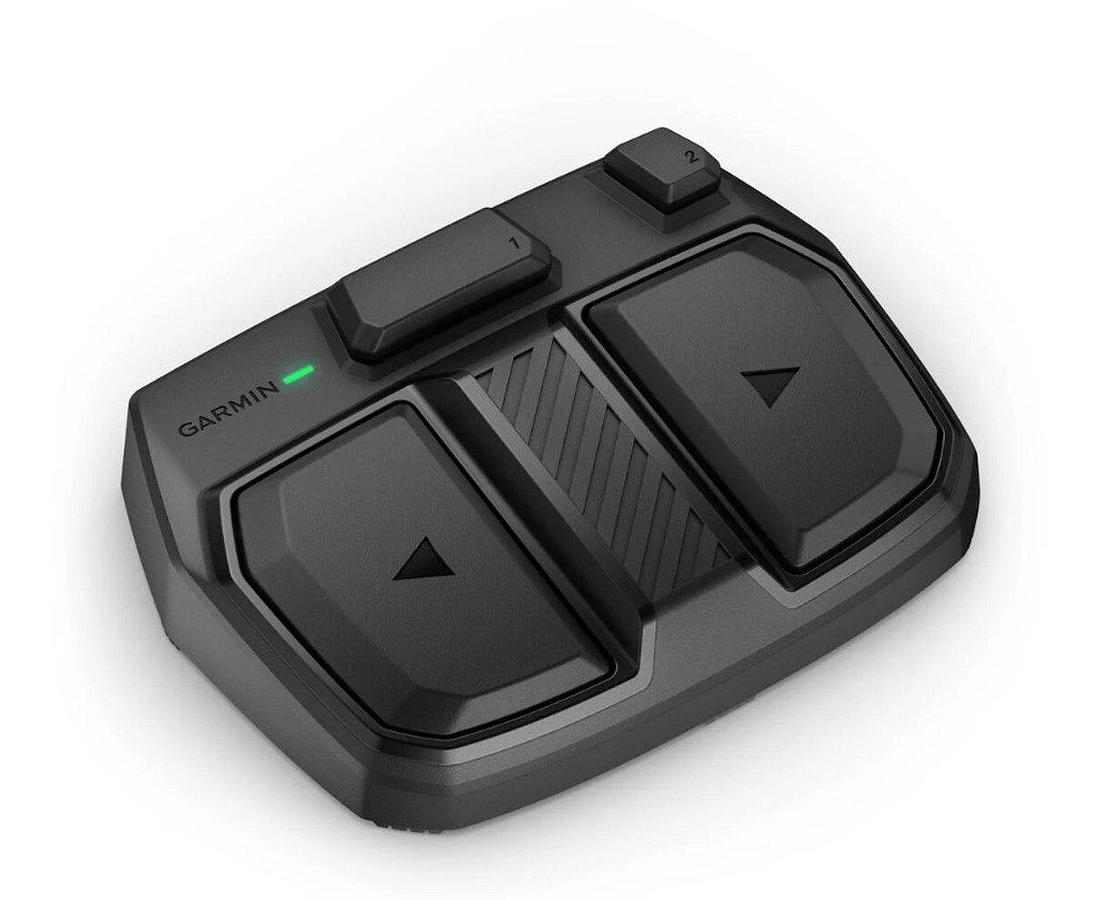

| Foot Control | |
| Dimensions | 7.8" x 5.8" x 1.8" |
| Wireless communication | Yes |
| Power supply | 2 AA batteries (not included) |
| Battery life (typical use) | 1 full season |
| Water rating | IPX7 |
| Programmable buttons | Yes (2) |
| Status indication | LED light |
| Quick-release mount | Yes |

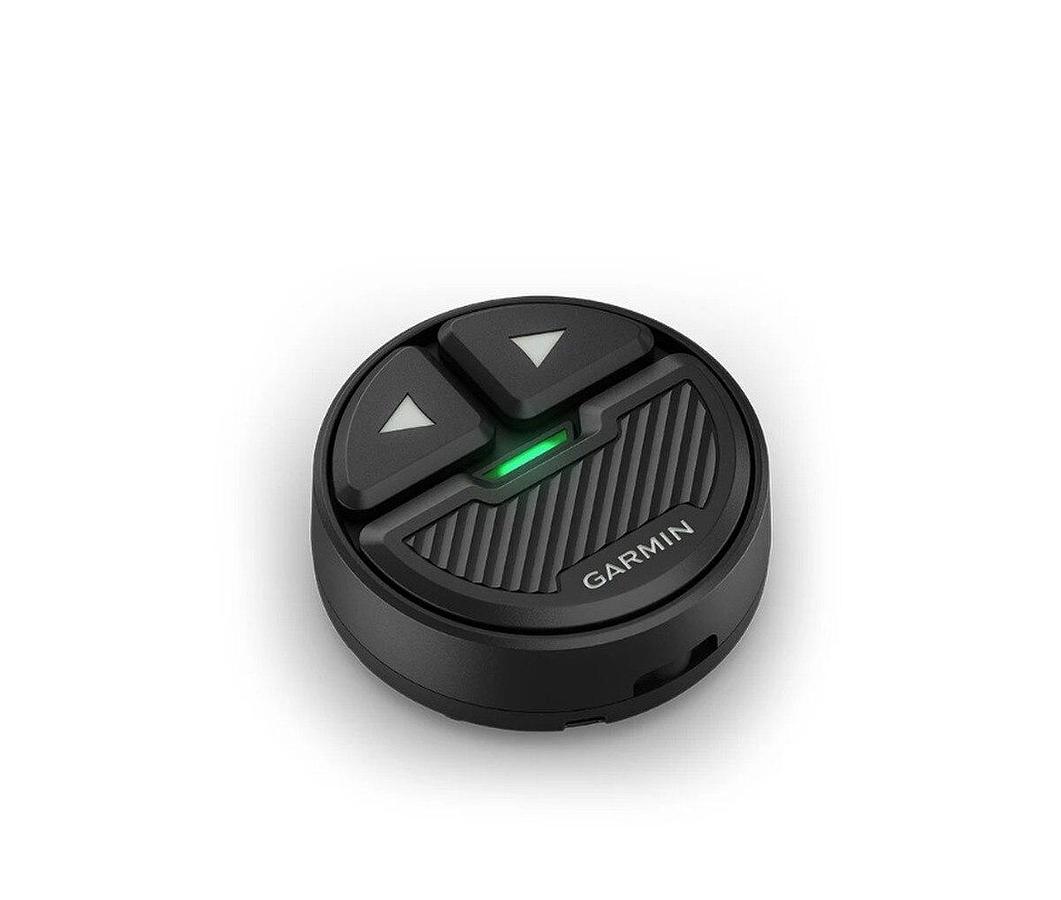

| Gesture Remote | |
| Dimensions | 1.25" diameter x 0.5" thickness |
| Wireless communication | Yes |
| Power supply | CR2032 battery (included) |
| Battery life (typical use) | 1 full season |
| Water rating | IPX7 |
| Programmable buttons | Yes (3) |
| Status indication | LED light |
| Quick-release mounting options | 2 rod, hat, handheld with lanyard |
| Floats | Yes (with handheld only) |
| Steering | Yes (swing and twist) |
| Heading Sensor | |
| Dimensions | 3.5" x 2.0" x 1.0" |
| Wireless communication | Yes |
| Voltage | 10 V-45 V |
| Power input | Wired, 2 m (6.5 ft) cable |
| Power usage | 0.1 W typical; 1 W max |
| Fuse | 1 A |
| Water rating | IPX7 |
| Status indication | LED light |
| Input Voltage | 10 V-45 V |
What's in the Box:
Specifications
| Manufacturer | Wintron Electronics |
| Condition | New |
| Stock Number | GAR0100301200 |
