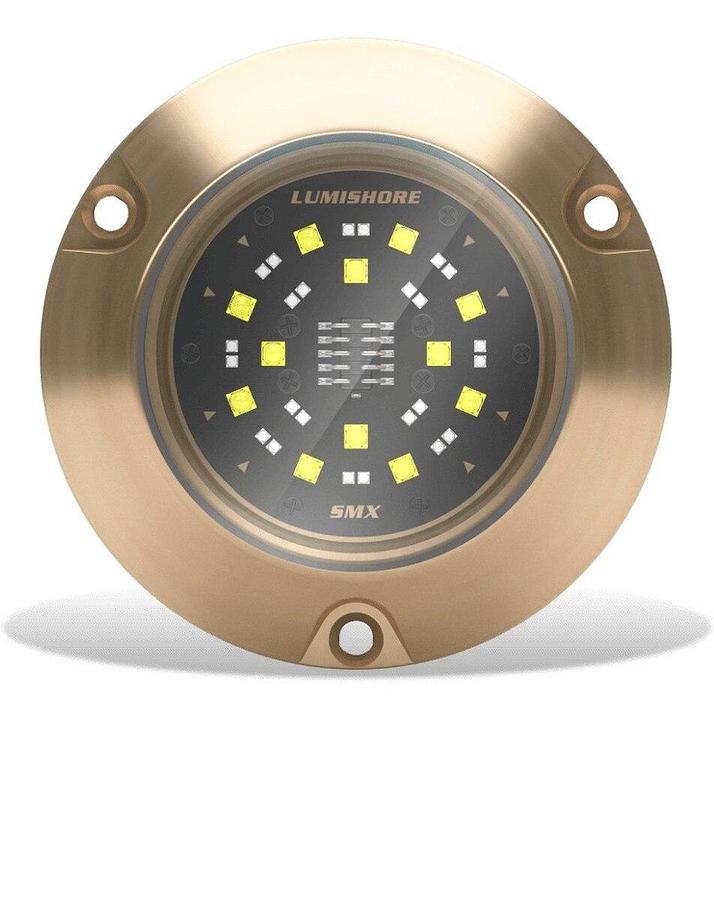

Lumishore ECLIPSE SMX54 Surface Mount Blue/White LED

Model: 60-0534 / 010-04505-00

2-lights-in-1 (blue and white) in a single high-powered bronze surface mount fixture without sacrificing brightness; both colors run at full power!

Lumishore's SMX54 delivers 7,500 fixture lumens in a wide 90 deg beam of light.

Control the SMX54 with a standard on/off switch, SUPRA i-Connect Hub & Switch or ECLIPSE Command Center.

Suitable for stepped hulls, transoms, and hull sides of nearly any type of boat.

Specifications
AVAILABLE LED COLORS

DUAL COLOR (BLUE & WHITE)
LUMENS	16,875
VERIFIED FIXTURE LUMENS (WHITE)	7,500
NUMBER AND TYPE OF LED	White - 12×5W / Blue -24×3W
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	90 deg
DRIVER	MULTI-CHANNEL INTERNAL DRIVER
SUPPLY VOLTAGE	12/24 V DC
MAX CURRENT DRAW	5.9A / 2.8A
HOUSING TYPE	MARINE GRADE BRONZE / GLASS LENS
USER CONTROL OPTIONS	ON/OFF SWITCH, I-CONNECT HUB & SWITCH OR ECLIPSE COMMAND CENTER
LIGHTS SYNCHRONIZED	YES
COLOR FADE CYCLE	YES
FADE w/BRIGHTNESS ADJUST	YES (NOT WITH ON/OFF SWITCH)
FIXED STROBES	YES
STROBE w/SPEED ADJUST	YES (NOT WITH ON/OFF SWITCH)
SYSTEM MEMORY	YES (NOT WITH ON/OFF SWITCH)
Warranty	3 YEARS
