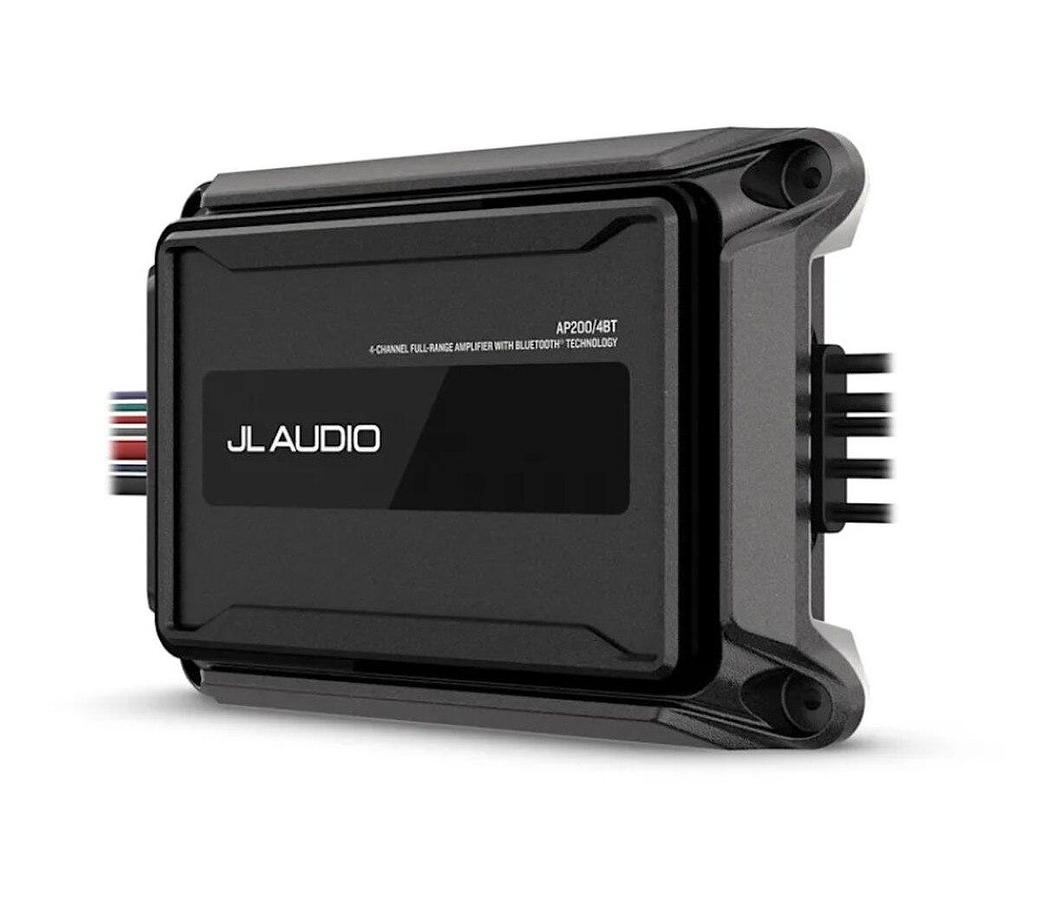

JL Audio AP200/BT Amplifier with Bluetooth and Remote

JL Audio AP200/BT Amplifier with Bluetooth and Remote

Model: 010-03431-00

CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.

STREAM ON THE GO: This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface- or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski or overland vehicle.

RUGGED DESIGN: The included remote is IPX7-rated and the amplifier is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

POWER THE MOMENT: With this tough and ultracompact 4 channel amplifier featuring Bluetooth(R) technology, you can enjoy every note from every part of your boat.

Specifications
Channels

4 Channel
Physical dimensions (Height)	1.85in (47 mm)
Physical dimensions (Width)	7.28in (185 mm)
Physical dimensions (Depth)	4.90in (125 mm)
Operating voltage	9-16 VDC
Water and dust rating	IP67
Operating temperature range	4 deg to 149 deg F (-20 deg to 65 deg C)
Warranty	3 years
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD)	40 W x 4/100 W x 2 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD)	50 W x 4
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	Greater than 70 dB
Frequency response (+0, -1dB)	20 Hz-20 kHz
Input voltage range @ RCA inputs	Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Current consumption (Standby)	Less than 1mA
Current consumption (Idle)	Less than 700-750mA
Fuse rating	35A
Recommended fuse type(s)	AFS, AGU or MaxiFuse
Min. copper power/Ground wire gauge	4 AWG wire
Protection circuits	Input under/over voltageOver temperatureOutput short circuit

What's in the Box:

4 channel amplifier with BLUETOOTH technology

Remote controller

Surface mounting cup with four mounting screws

Four amplifier mounting screws

Flush mounting kits

Flush mounting template for the remote controller

Waterproof gasket for the remote controller

Documentation
