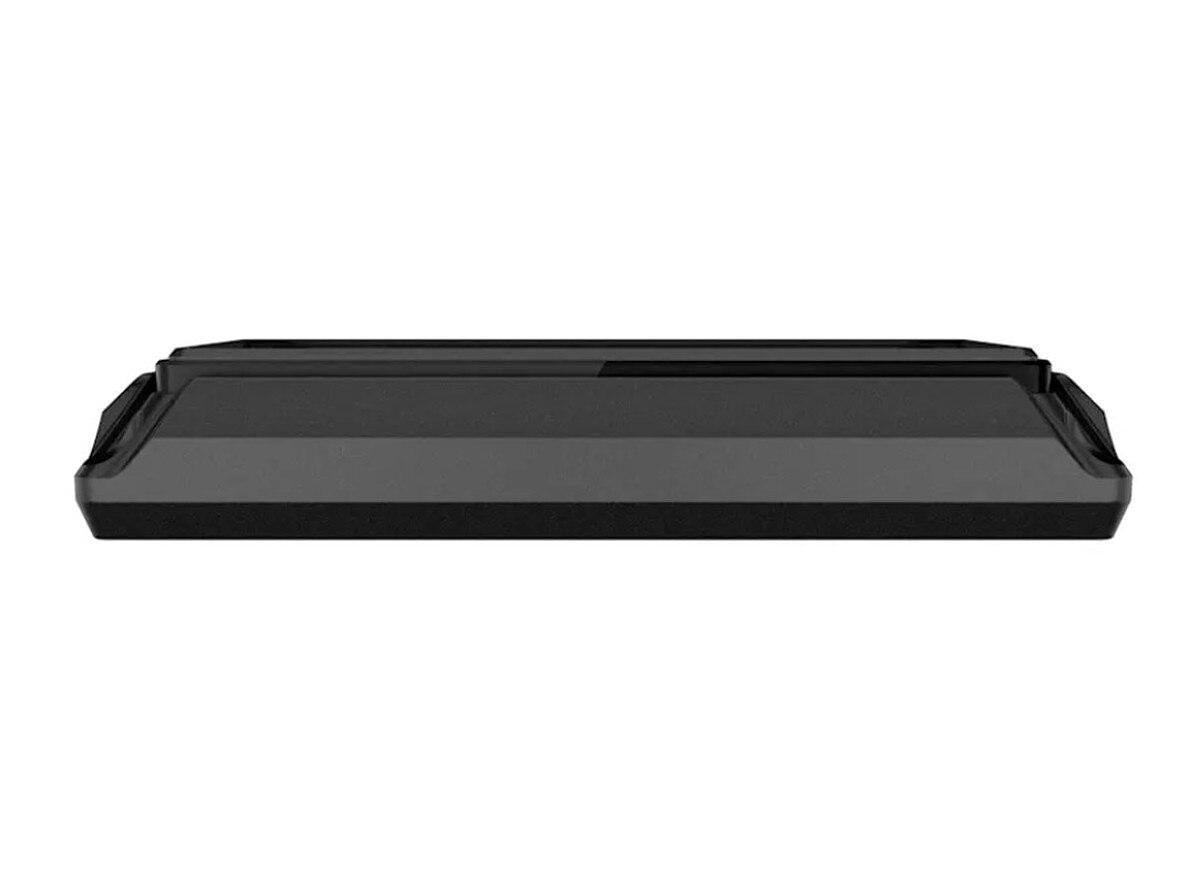

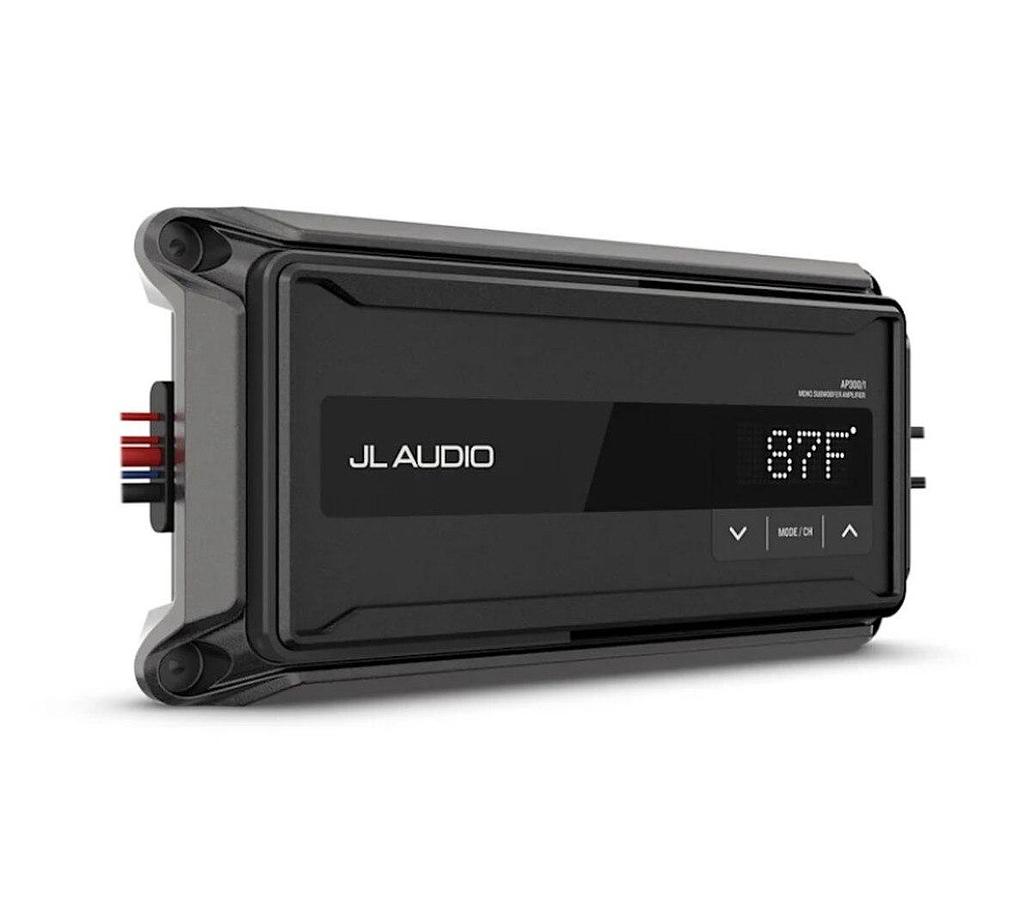

JL Audio AP300/1 Amplifier 300 Watt Monoblock

JL Audio AP300/1 Amplifier 300 Watt Monoblock

Model: 010-03428-00

300-WATT MONOBLOCK AMPLIFIER: This monoblock amplifier is specifically designed to power a subwoofer.

EASY TUNE FEATURE: For additional optimization, pair with a Fusion(R) stereo with built-in DSP, and download the Fusion(R) Audio app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.

CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.

RUGGED DESIGN: These amplifiers offer superior levels of durability and are built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

With these tough and ultracompact amplifiers, you can enjoy every note from every part of your boat.

Specifications
Channels

Monoblock
Physical dimensions (Height)	1.86in (47 mm)
Physical dimensions (Width)	10.43in (265 mm)
Physical dimensions (Depth)	4.90in (125 mm)
Operating voltage	9-16 VDC
Water and dust rating	IP67
Operating temperature range	4 deg to 149 deg F (-20 deg to 65 deg C)
Warranty	3 years
Audio
Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD)	200 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD)	350 W x 1
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	Greater than 70 dB
Frequency response (+0, -1dB)	10 Hz-500 Hz
Input sensitivity @ RCA inputs	Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Current consumption (Standby)	700-750mA
Fuse rating	35A
Recommended fuse type(s)	AFS, AGU or MaxiFuse
Min. copper power/Ground wire gauge	4 AWG wire
Protection circuits	Input under/over voltageOver temperatureOutput short circuit

What's in the Box:

JL Audio AP amplifier

Four mounting screws

Documentation
