Garmin ECHOMAP UHD 94sv Reman US and Canada GN+ with GT54 Transducer
Description
Garmin ECHOMAP 94sv UHD Combo US and Canada GN+ with GT54 Transducer - Remanufactured

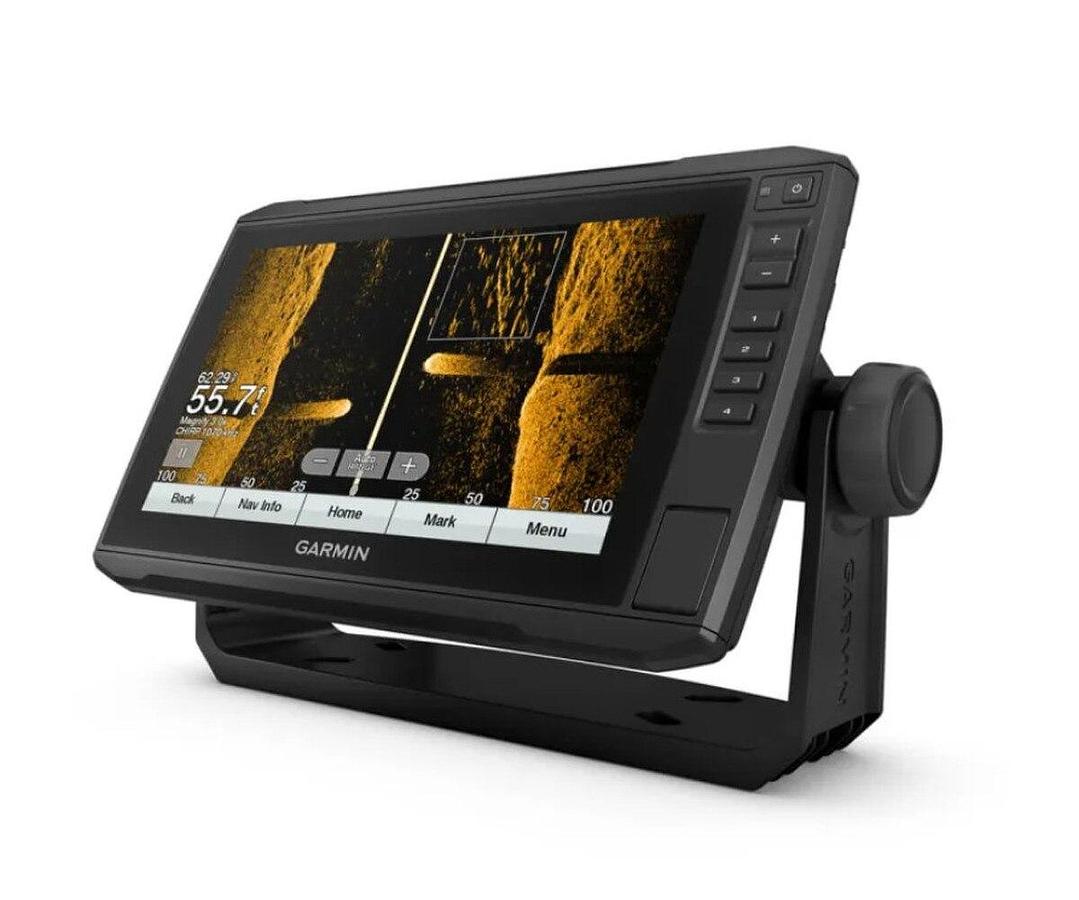

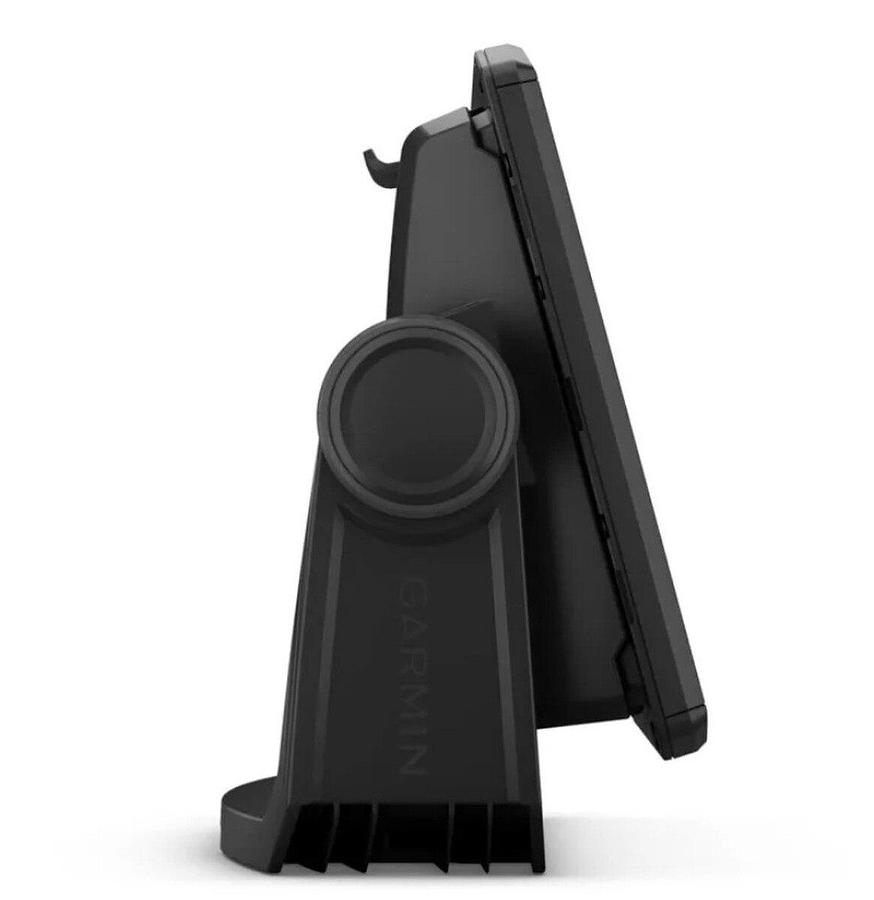

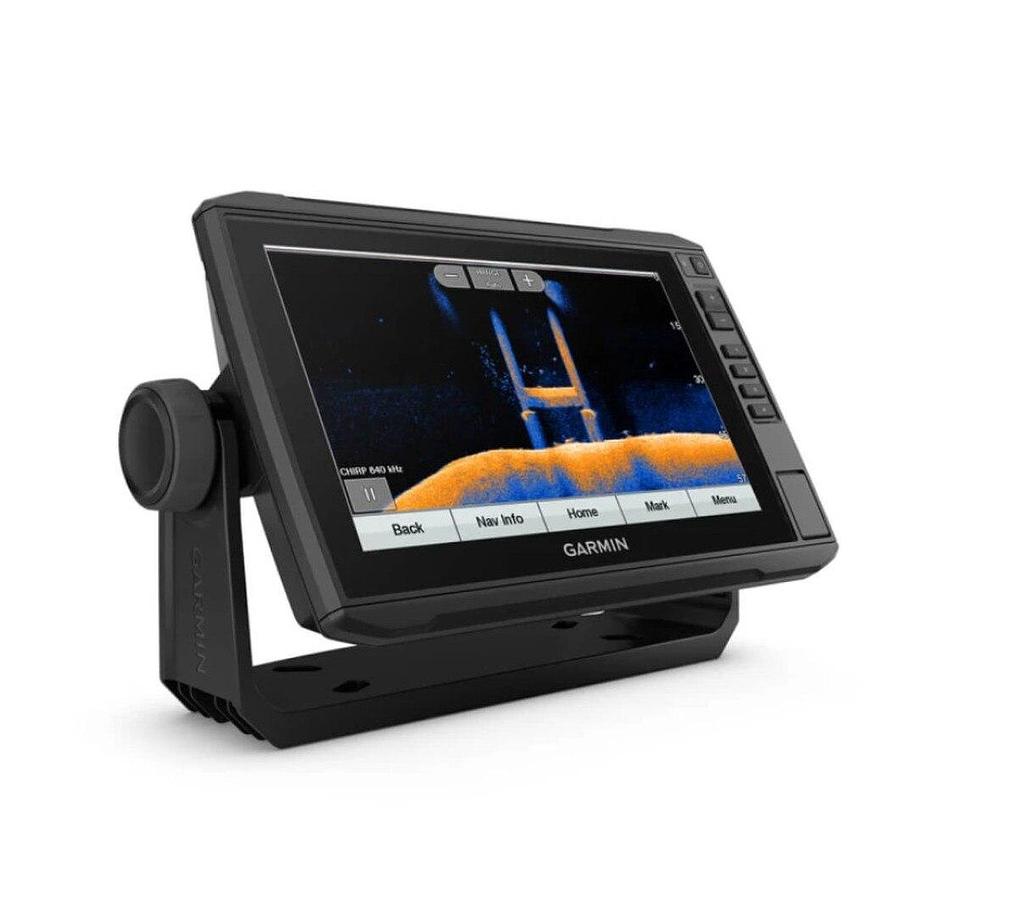

Model: 010-N2343-51The sunlight-readable 9 in touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScopeTM scanning sonar system, which lets you see all around your boat in real time.
Select the transducer bundle to add a GT54 transducer for Ultra High-Definition ClearVü and SideVü scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics(R) data. Maps cover more than 17,000 lakes with up to 1 feet contours.
Create personalized fishing maps on-screen with 1 feet contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin ConnectTM.
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information - such as sonar, user data and charts - among them (7 in and 9 in models only).
Connect to autopilots, digital switching, weather, FUSION-LinkTM audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications1, software updates, Garmin QuickdrawTM Community data and more.
Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.
SpecificationsPhysical dimensions
| 11.4in x 6.5in x 2.4in (28.2 x 16.4 x 6.0 cm) | |
| Display size | 7.8in x 4.8in; 9in diagonal (19.9 x 11.3 cm; 22.9 cm diagonal) |
| Display resolution | 400 x 800 pixels |
| Display type | WVGA display |
| Weight | 2.3 lbs (1.0 kg) |
| Water Rating | IPX7 |
| Power consumption | 18W |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Bail or flush |
| Receiver | 5 Hz |
| Garmin Marine NetworkTM ports | 1 PanoptixTM port |
| Maps & Memory | |
| Preloaded maps | US and Canada GN+ |
| Accepts data cards | 1 microSDTM card; 32 GB maximum size |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Garmin Sonar compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| GCVTM Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Sailing Features | Yes |
| Sonar Features & Specifications | |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Transmit power | 500 W (RMS) / 4,000 W (peak to peak) |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes with CHIRP (built-in) |
| SideVü | Yes with CHIRP (built-in) |
| Maximum depth | 2,300 ft @ 77 kHz, freshwater |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Sonar history rewind | Yes |

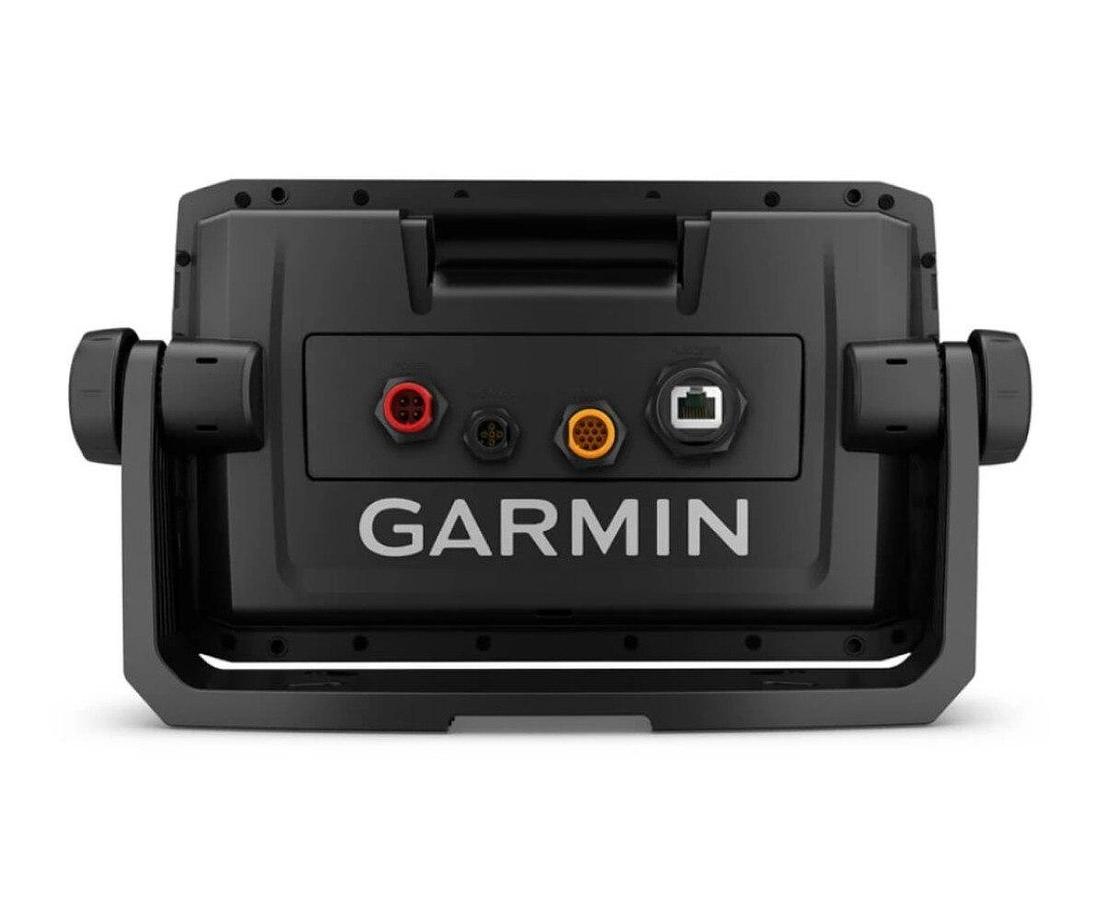

| Connections | |
| NMEA 2000(R) compatible | Yes |
| Transducer pin numbers | 12 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | None |
| Video output ports | None |
| Wireless connectivity | Yes |
What's in the Box:
Specifications
| Manufacturer | Wintron Electronics |
| Condition | New |
| Stock Number | GAR010N234351 |
