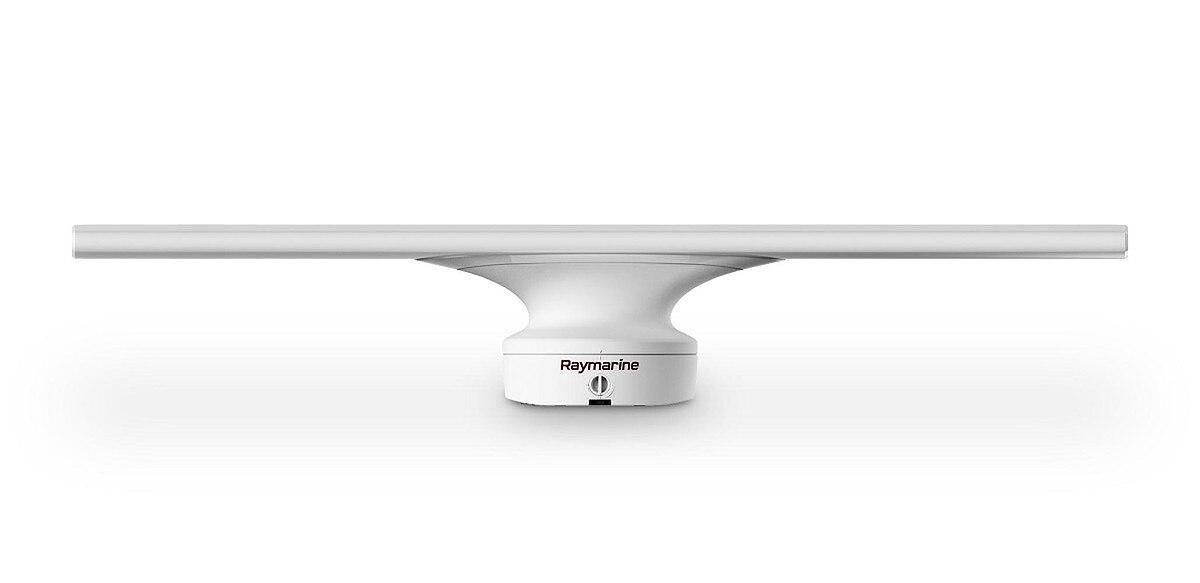

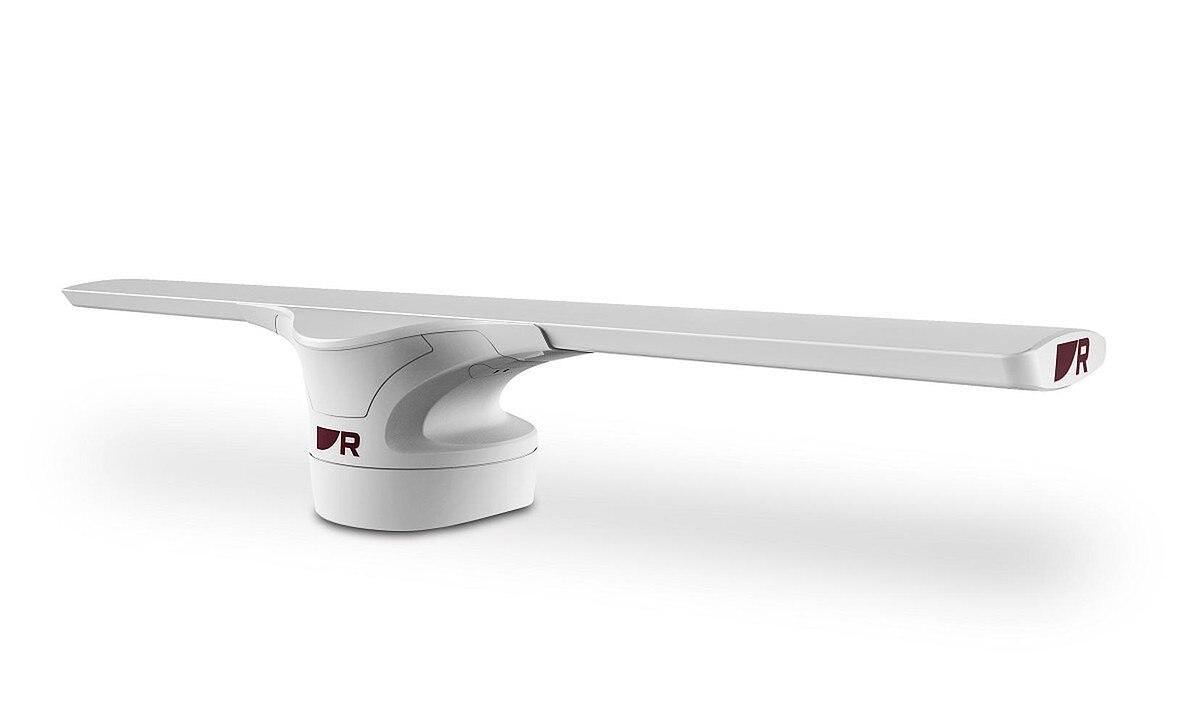

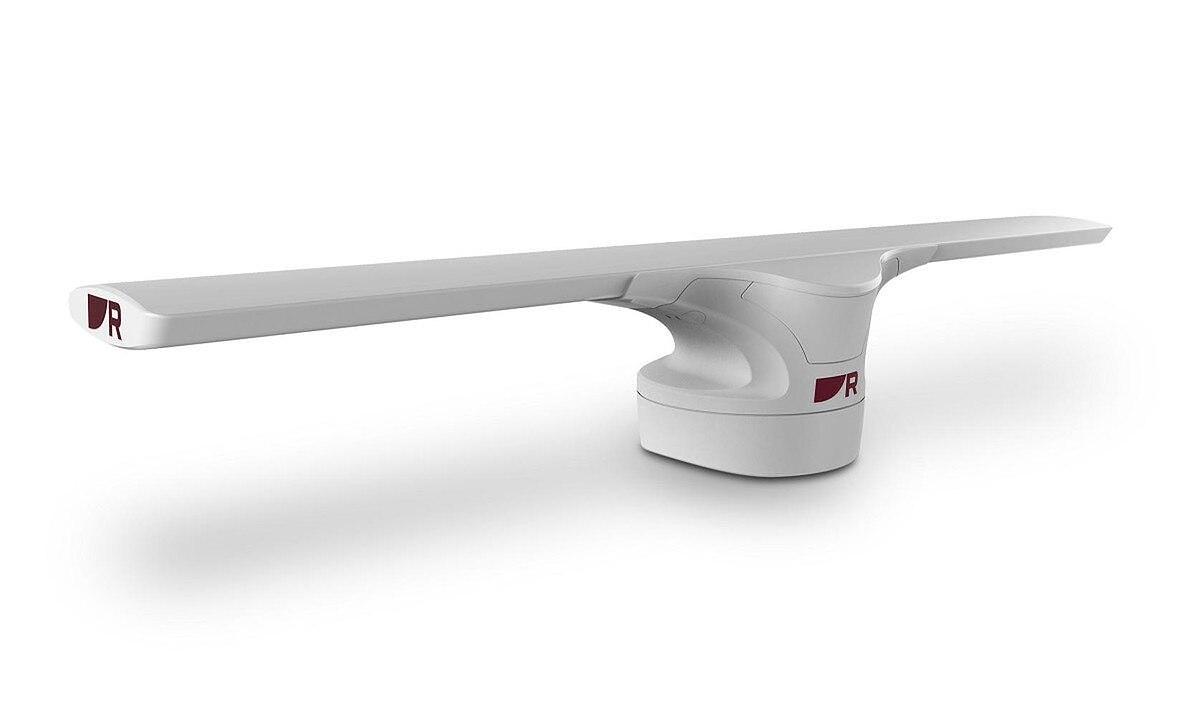

Raymarine 55 Watt Cyclone With 6ft Antenna 15m Cables

Raymarine 55 Watt Cyclone Radar with 6 feet Antenna

Model: T70493

Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar

At 13.1 inches (335 mm) tall, Cyclone's lower profile allows greater flexibility of boat architecture and more adaptable installation options.

Innovative pedestal design conceals cable connections for a cleaner installation

Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time

Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.

Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the sameadvanced ARPA technology trusted by the United States Coast Guard.

RangeFusionTM technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.

Performance tuned for locating sea birds

Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshestconditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusionTM technology and high speed 60 rpm imaging.

Specifications
Supply voltage (Using VCM100)

Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc /Maximum: 31.2 V dc
Power consumption (typical)	70 Watts
Power consumption (max)	170 Watts
Power consumption (standby)	28 Watts
Maximum range scale	72 nm
Boot up time	40 seconds
Standby to transmit	less than 5 seconds
Waterproof rating	IPX6
Operating temperature range	-25 degC to +55 degC (-13 degF to 131 degF)
Humidity	Up to 93% at 40 degC (104 degF)
Maximum wind speed	100 Kts
Power connection	1x Power connector
Data connection	1x RayNet connector
Transmitter frequency	9370, 9400, 9430 MHz (User Selectable)
Peak power output	55 Watts
Receiver characteristic	Linear
Receiver noise	Less than 5 dB

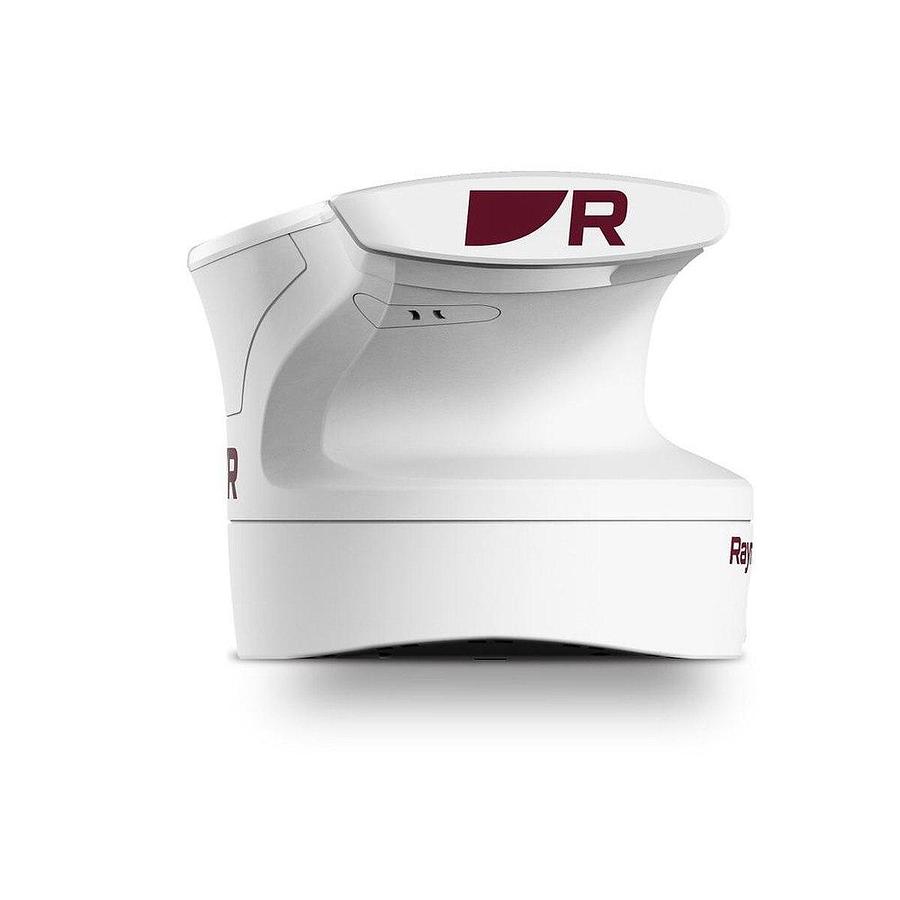

Pedestal
Dimensions	388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)
Weight	16 Kg
Antenna
Beamwidth (vertical)	25 degree
Beamwidth (horizontal)	1.32 degree
Polarization	Horizontal
Rotation speed	12, 24, 36, 48, 60 rpm
Length	1945 mm / 76.57 in
Weight	12 Kg / 26.45 lb

What's in the Box:

E70620 55 watt pedestal

E70630 6 feet Antenna

A80653 15m Power cable

A8058 15m Data Cable

InstallationManual

DataSheet
