Airmar TM265C-LH Transducer With Navico 7-Pin & Y MMC

Airmar TM265C Low/High CHIRP Transom Mount Transducer with Navico 7-Pin & Y-cable Mix-N-Match Cable

Model: TM265C-LH-BL2

8 Internal Broadband Ceramics

Depth & fast response water temperature sensor

Urethane housing and stainless steel mounting bracket

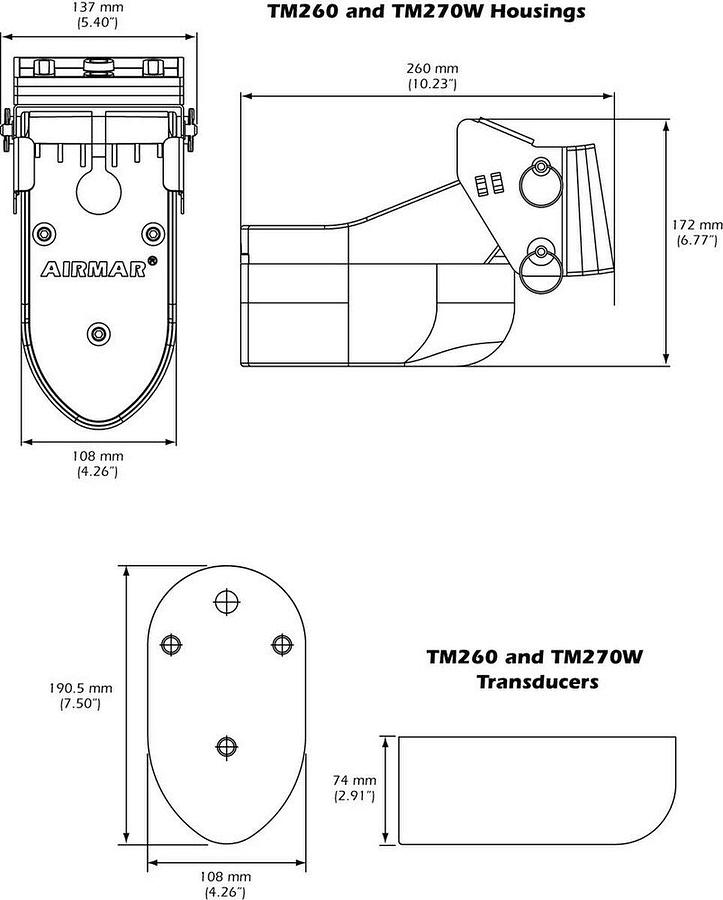

Can retrofit to existing TM258 & TM260 bracket

Exclusive Xducer ID(R) technology

Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.

Specifically designed for small boats (25 feet-40 feet), the TM265LH Chirps across the following bandwidths:

LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz

Specifications
Low frequency

42-65 kHz (25 deg to 16 deg beamwidth)
High frequency	130-210 kHz (10 deg to 6 deg beamwidth)
Boat Size	8 m to 12 m (25 feet to 40 feet)
Boat type	Outboards, I/O
Hull type	Fiberglass, Wood, Metal
Hull Deadrise	Up to 28 deg
Acoustic Window	Urethane

What's in the Box:

TM265CLH-MM

Transom Mount Hardware

MMC-BL2

DataSheet

OwnersManual
