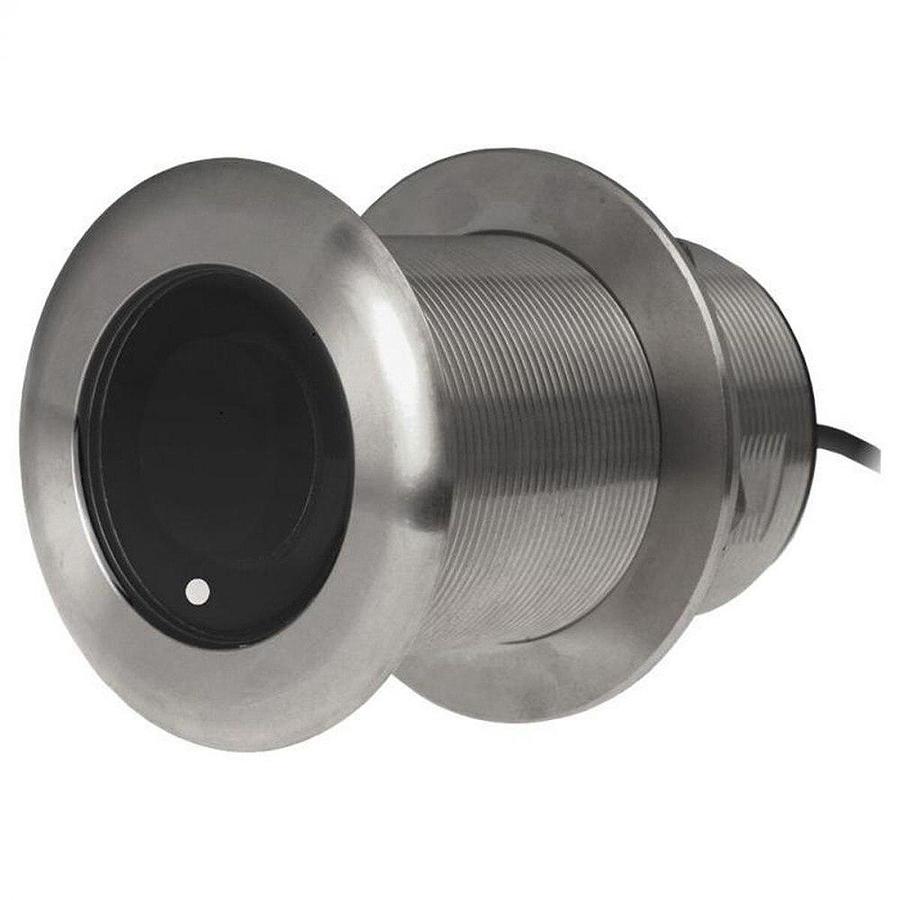

Airmar SS175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Furuno 12-Pin MMC

Airmar SS175MW Medium Ultra-Wide 12 deg Tilted ElementTM Thru-Hull - With MMC-12F Furuno 12-Pin Mix-N-Match Cable

Model: SS175C-12-MW-12F

Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise

Depth and fast-response water-temperature sensor

1 kW with depth tracking down to 400 m (1,300#39;)

Medium frequency: 60-100 kHz

57 deg to 73 deg beamwidth (port/starboard)

16 deg average fore/aft

40 kHz of total bandwidth from one transducer

Medium frequency for superior mid-depth performance and excellent fish-target separation

Low-profile, thru-hull housing yields good resolution at speed when installed properly

Exclusive Xducer ID(R) technology

AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted ElementTM Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar's new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR's most popular Tilted Element housings which includes a ceramic element fixed at a 20 deg, 12 deg or 0 deg angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

Specifications
Power Rating

1 kW
Max Deadrise Angle	24 deg
Housing	Stainless Steel
Functions	Depth, Temperature
Hull Material	All hull materials
Max Vessel LOA	Up to 11 m (36 feet)
Hole Size	95 mm (3-3/4)
Mounting Style	Tilted Element Thru-Hull
Acoustic Window	Urethane
Cable-Length	9 m (30 feet)
Max Depth	400 m (1300 feet)
Medium Frequency	60-100 kHz
Medium Frequency Beamwidth	57 deg to 73 deg (Port/Starboard) X 16 deg average (Fore/Aft)
Single or Dual Frequency	CHIRP-Ready Single-Band
Water Temperature	-10 deg to 40 degC (14 deg to 104 degF)
Weight	2.7 kg (6 lb.)

What's in the Box:

SS175C-12-MW-MM Medium CHIRP 12 deg Tilted Element

MMC-12F Furuno 12-Pin Mix-N-Match Cable

"
