Airmar B785C Bronze Transducer Medium CHIRP With Raymarine 11-Pin

Airmar B785C Triducer Medium CHIRP with Raymarine 11-Pin Mix-N-Match Cable

Model: B785C-M-11R

Depth & fast-responDepth and fast-response water-temperature sensing

600 W of power

Medium frequency: 80 to 130 kHz

24 deg to 16 deg beamwidth

Maximum depth of 274 m (900 feet)

50 kHz of total bandwidth from one transducer

Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth

Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation

Recommended for use on planing or displacement hull

Bronze housing with High-performance Fairing for optimal performance at higher speeds

Patented Xducer ID(R) technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

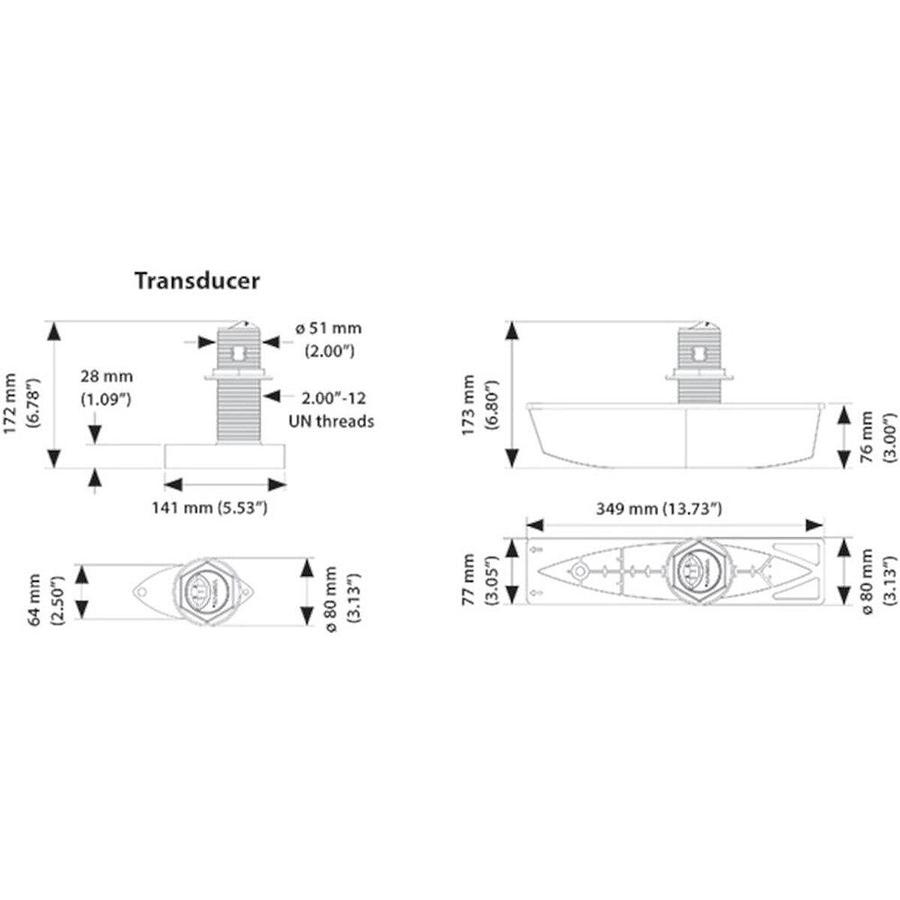

Specifications
Cable-Length

9 m (30ft)
Acoustic Window	Urethane
Connector	Airmar 12-Pin (MMC)
Deadrise Range	Up to 24 deg with fairing
Display Connector	Raymarine 11-Pin
Frequency Band	Medium 80-130 kHz
Hole Size	51 mm (2in)
Housing Material	Bronze
Max Depth	274 m (900ft)
Medium Frequency Beamwidth	24 deg-16 deg
Power Rating	600 W
Single or Dual Frequency	CHIRP-Ready Single-Band
Usable Shaft Length	121 mm (4.75)

What's in the Box:

B785C-M-MM Triducer

Fairing Block

Anti-rotation Bolt

MMC-11RHM cable

"
