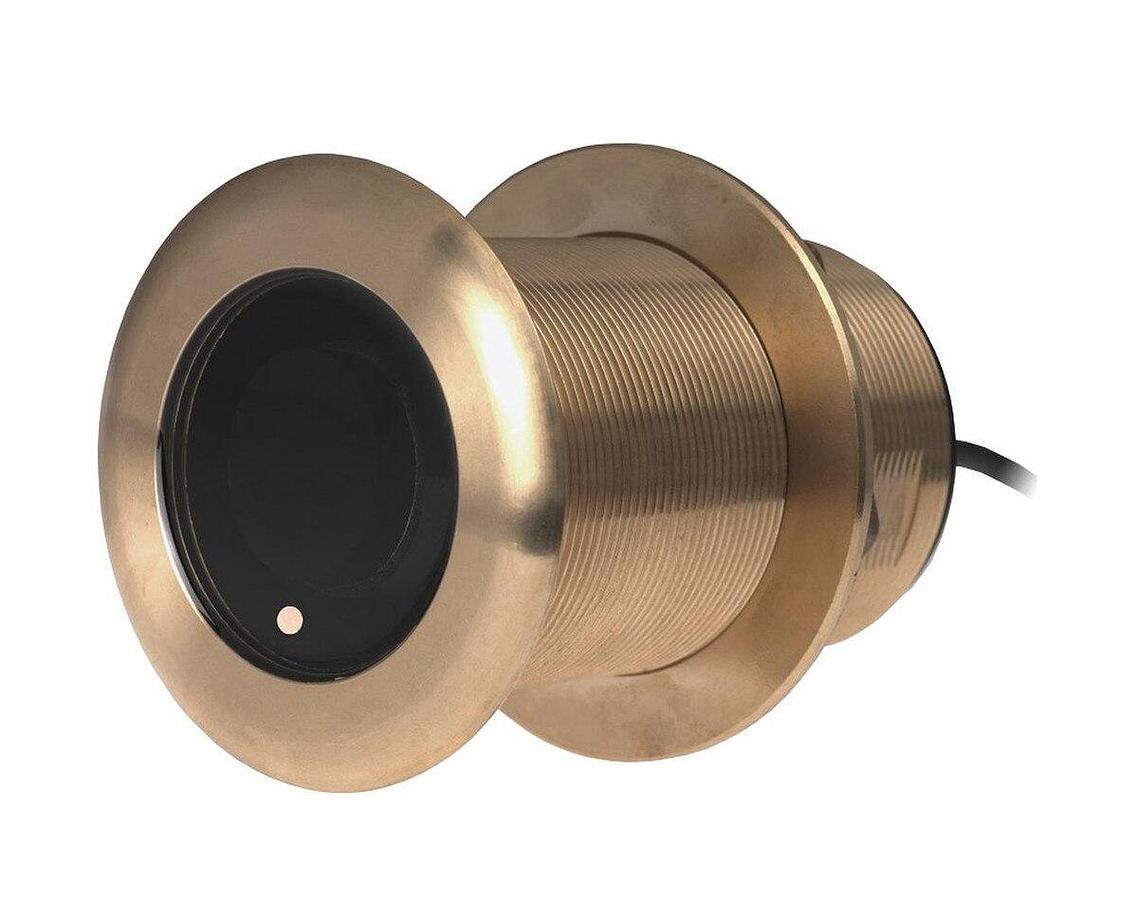

Airmar B75C-20-H 20d Tilt With Humminbird 9-Pin MM Cable

Airmar B75C 20 deg tlted element High CHIRP Bronze Thru Hull with 9-Pin Humminbird Mix-N-Match Cable

Model: B75C-20-H-HB

Depth & fast-response water-temperature sensor

80 kHz of total bandwidth from one transducer

Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth

Exclusive Xducer ID(R) technology

Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen

Specifications
CHIRP Frequency

130 kHz to 210 kHz
Beamwidth	15 deg to 9 deg
Element tilt	20 deg
Deadrise	16 deg to 24 deg
Maximum depth	700ft

What's in the Box:

B75C-20-H-MM

MMC-HB

DataSheet

OwnersManual
