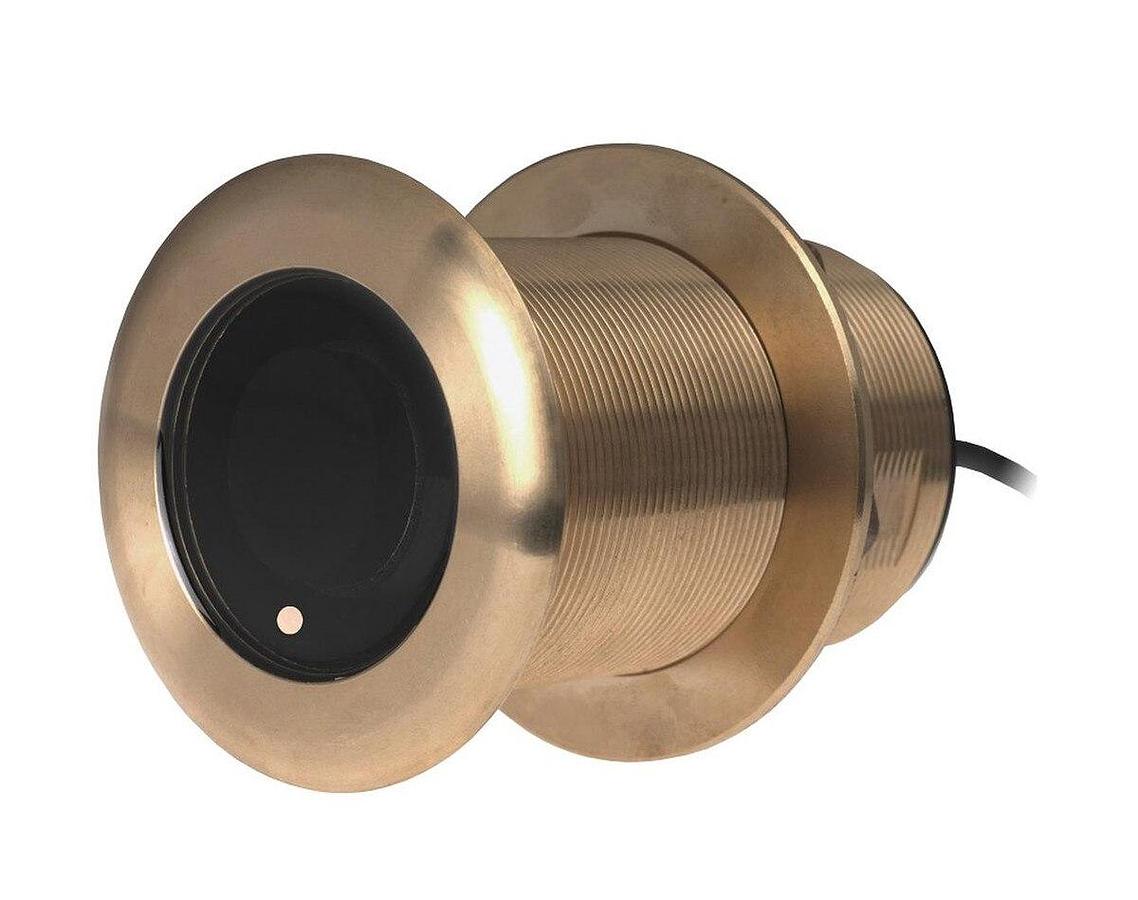

Airmar B75C-20-M 20d Tilt With Bare Wire MM Cable

Airmar B75C 20 deg Tited Element Medium CHIRP Bronze Thru Hull with Bare Wire Mix-N-Match Cable

Model: B75C-20-M-0

Depth & fast-response water-temperature sensor

50 kHz of total bandwidth from one transducer

Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Provides the ability to sound deeper than the high frequency, along with better resolution than the low frequency

Wider beam than the high frequency, achieving more coverage under the boat and greater opportunity to find fish

Clear images at higher boat speeds

Specifications
CHIRP Frequency

80 kHz to 130 kHz
Beamwidth	24 deg to 16 deg
Element tilt	20 deg
Deadrise	16 deg to 24 deg
Maximum depth	900ft

What's in the Box:

B75C-20-M-MM

MMC-0

DataSheet
