Airmar B75C-12-M 12d Tilt Medium CHIRP Garmin 8-Pin Cable

Airmar B75C-12-M 12d Tilt Medium CHIRP with Garmin 8-Pin Mix-N-Match Cable

Model: B75C-12-M-8G

Depth & fast-response water-temperature sensor

Medium-CHIRPS from 80 kHz to 130 kHz, 24 deg to 16 deg beamwidth

Hull Type: Fiberglass or wood

50 kHz of total bandwidth from one transducer

Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth

Bronze transducer housing

Boat Size: Up to 8 m (25 feet)

Exclusive Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications
Cable-Length

9 m (30 feet)
Deadrise Range	8 deg to 15 deg
Frequency Band	Medium CHIRP
Hole Size	70 mm (2-13/16)
Housing Material: BronzeHousing Material	Bronze
Power Rating	600 W
Retractable housing	No
Tilt Angle	12 deg
Transducer Functions	Depth

DataSheet

OwnersManual

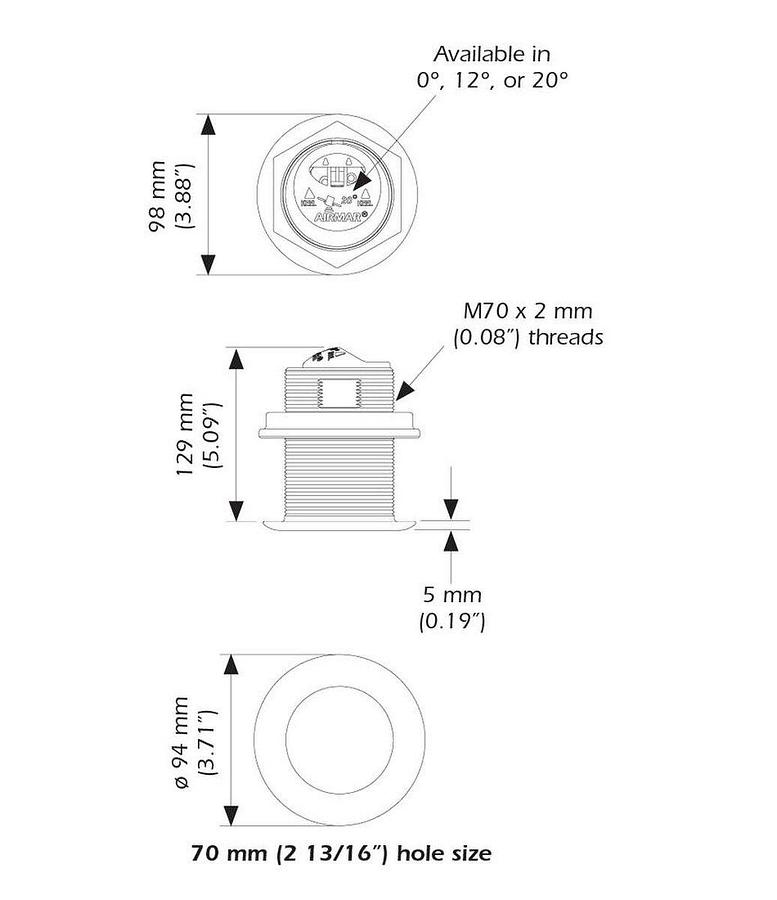

Dimensions
