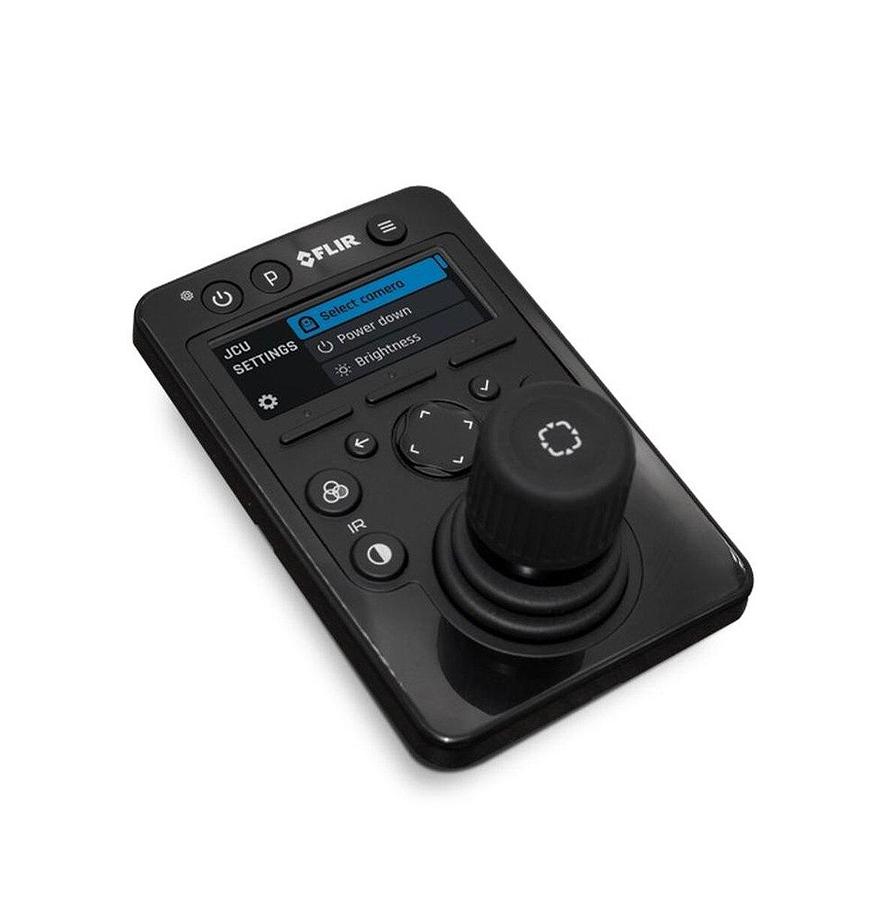

FLIR JCU4 Joystick Control Unit with 3m Cables

FLIR JCU-4 remote Joystick Controller with Accessories

Model: E70695

Rugged, low profile 3-axis joystick for precision camera control in all conditions

The 2.9 in color LCD and keypad simplify camera operation and offer easy access to the joystick setup menus

Dimmable color LCD and back lit keypad preserves the operator's vision during nighttime operations

3 custom keys for quick access to user-defined camera functions.

Pair the JCU-4 with a FLIR marine camera and marine monitor to create a complete camera viewing and control solution

Add the JCU-4 to an integrated chartplotter and camera system for a dedicated tactile camera control alternative.

The JCU-4 provides confident control of FLIR marine thermal and visible cameras. Pan, tilt, zoom, and control all the camera functions with JCU-4's ergonomic keypad and responsive joystick control. Our premier FLIR joystick controller, the JCU-4 pairs seamlessly with FLIR marine thermal cameras and provides the operator a dedicated tactile camera control solution.

Designed by mariners, for mariners the JCU-4 is perfect for those who actively navigate using thermal technology and require dependable and intuitive control of their FLIR camera.

Specifications
Width

93.66 mm (3.69 in)
Height	146.66 mm (5.77 in)
Depth	63.36 mm (2.49 in)

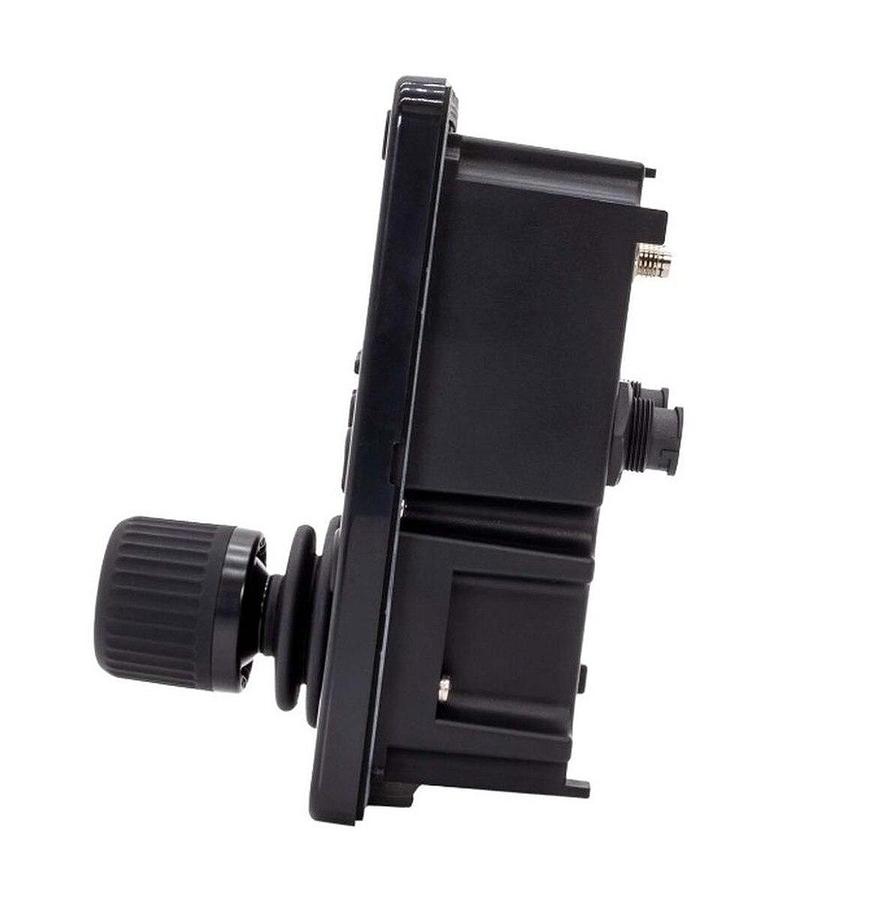

Depth (including joystick)	113.30 mm (4.46 in)
Power
PoE class	Class 2
Nominal supply voltage	PoE: 48 V dc Alternate power: 12 V / 24 V dc
Operating voltage range	PoE: 44 V to 57 V dc Alternate power: 8 V to 32 V dc
Power consumption	5 W Max with full keypad illumination
Network

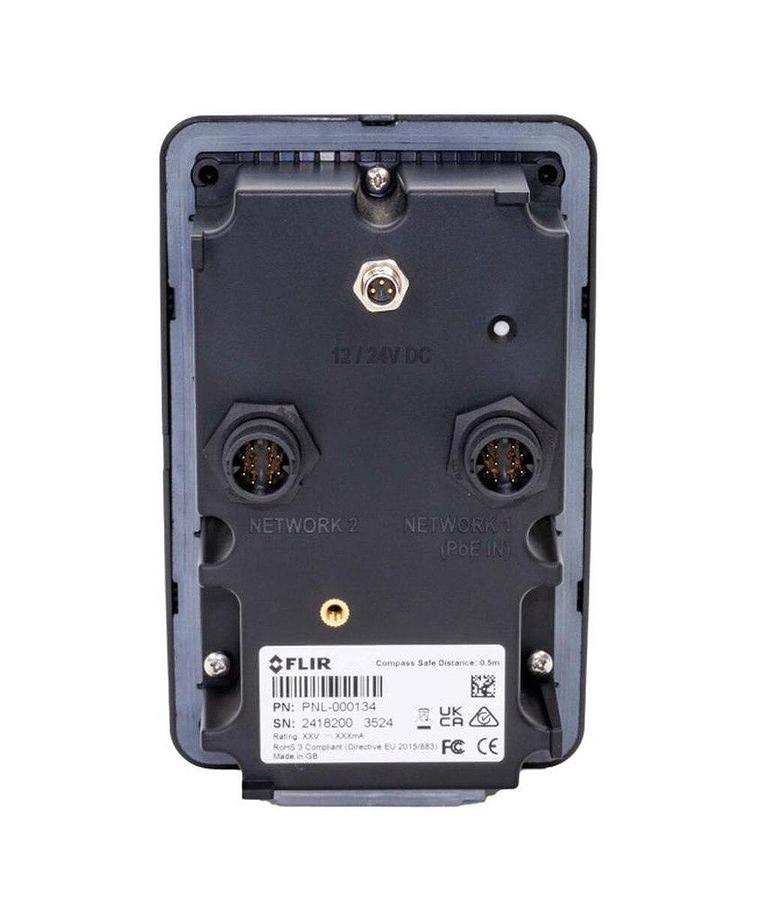

Network connection ports	1x 10/100/1000 Mbits/s RayNet (Ethernet) 1x 10/100/1000 Mbits/s PoE RayNet (Ethernet)
Display
LCD Size	2.9 in
LCD Type	IPS TFT LCD
Active area	26.51 mm x 67.68 mm
Brightness / Luminance	600 nits / 600 cd/m2
Viewing angles	80 + / 80 +
Resolution	376 (H) x 960 (W) pixels (RBG)
Contrast ratio	1:1500
Environmental
Operating temperature	-25 oC to +55 oC (-13 oF to 131 oF)
Storage temperature	-30 oC to +70 oC (-22 oF to 158 oF)
Relative humidity	Maximum 93% @ + 40 degC (104 degF)
Waterproof rating	IPx6

What's in the Box:

JCU-4 (includes 4x screws and 4x mounting plates pre-fitted).

Front cover.

Weather cover.

Documentation pack.

Right-angled RayNet (Ethernet) to RJ45 adapter cable, 3 m (9.84 ft).

Right-angled 3-pin power cable, 3 m (9.84 ft).

DataSheet
