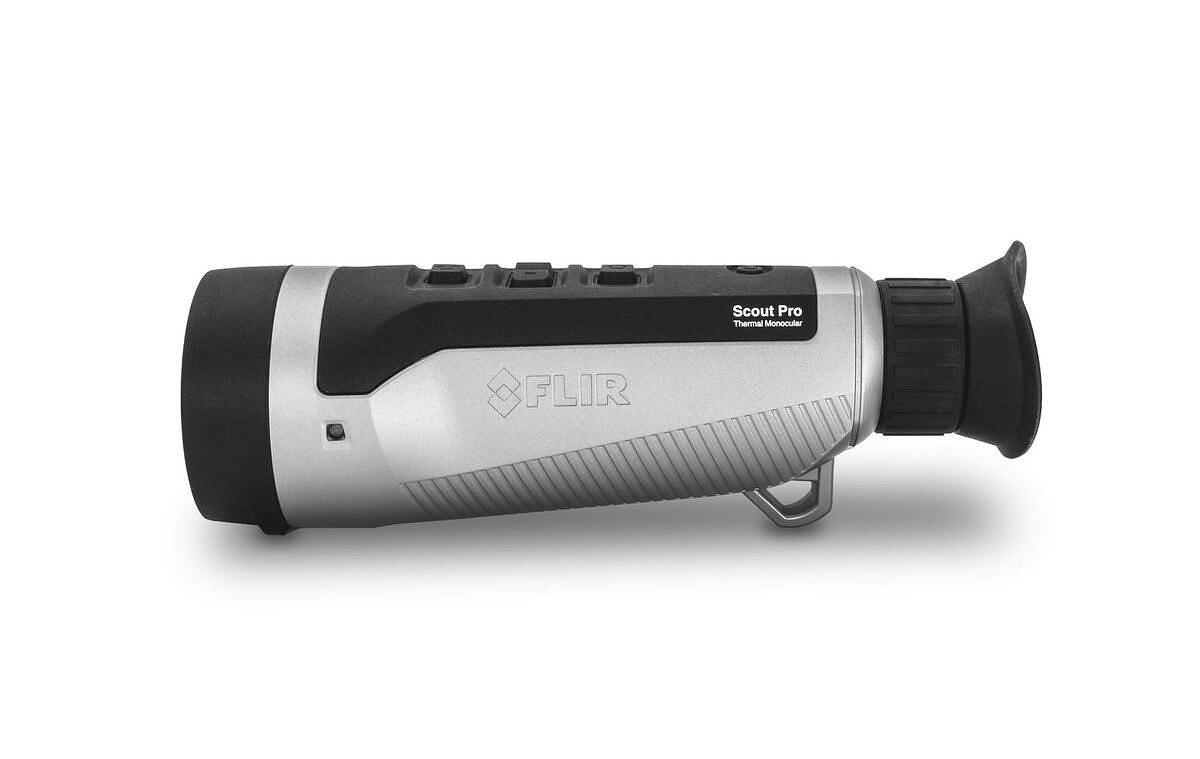

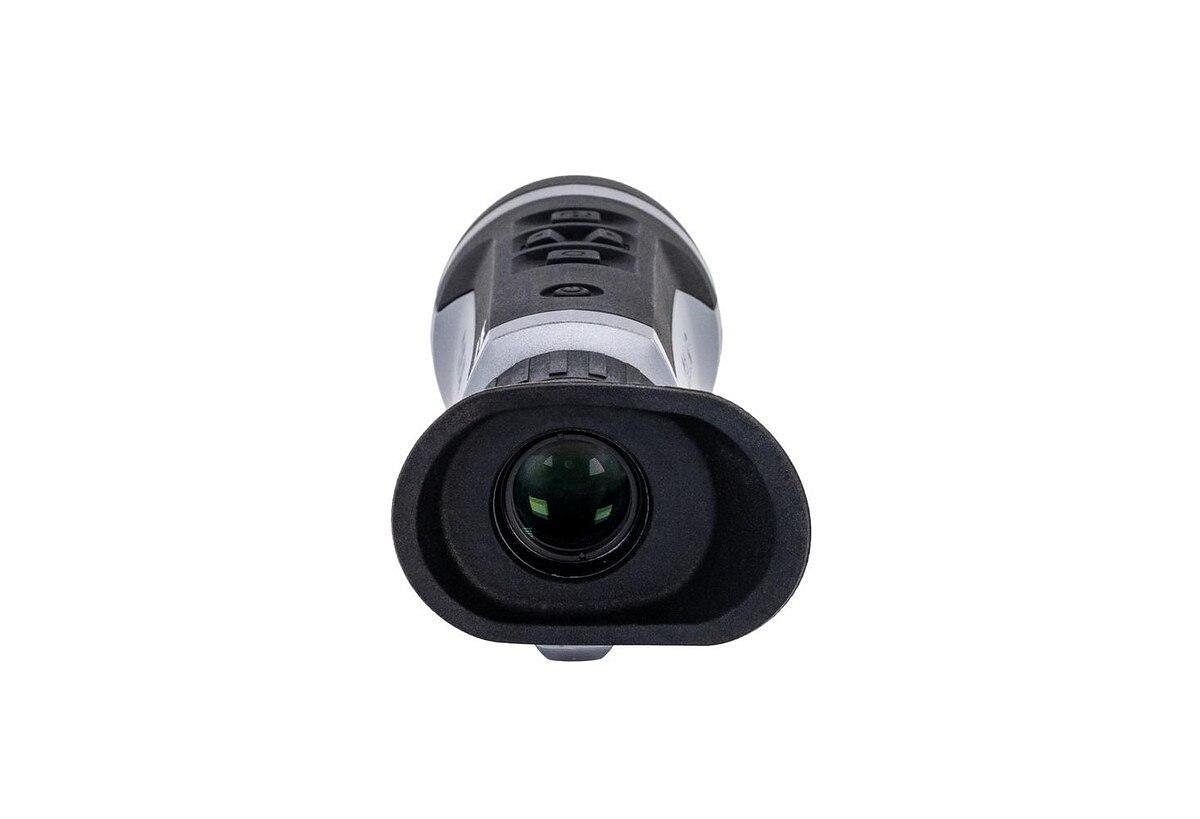

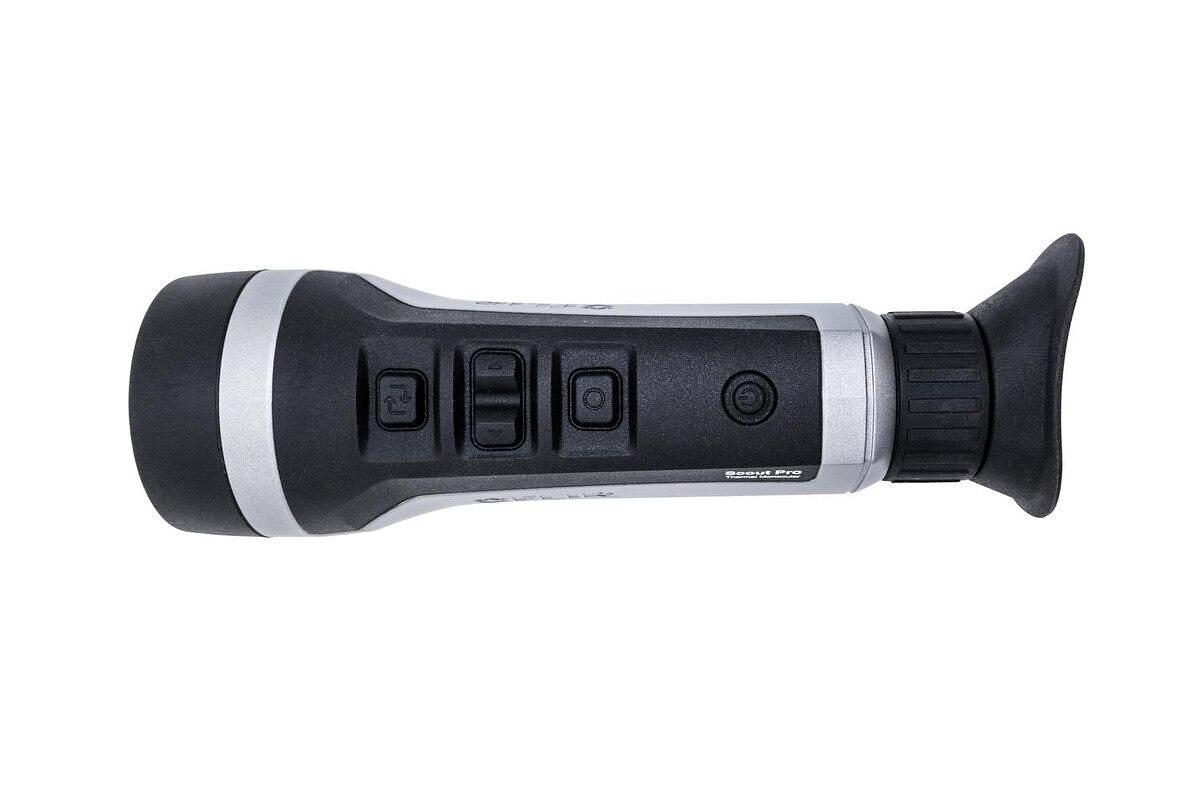

FLIR Ocean Scout Pro Marine Thermal Monocular

FLIR Ocean Pro Marine Thermal Monocular

Model: 15002-0202

Up to 500 m visibility, even in the dark

Wide 32 deg field of view for maximum coverage and fasterarea sweeps

Rugged and reliable with IP67 rating and 2 m drop protection

Easy-to-use menu, requiring minimal training

Wireless video streaming through Scout Pro App (iOS only)

Navigate at night with confidence

Avoid obstacles, floating debris and navigate safer

Locate navigation aids

Find people or pets in the water

FLIR Ocean Scout Pro provides exceptional imagery by day or night using a high-resolution 640 x 480 thermal sensor with a fast 30 Hz refresh rate and high-resolution viewfinder. Combined, these features give Ocean Scout Pro outstanding long-range performance with the ability to detect a human-sized target at 500-meters. A wide 32 deg field of view enables rapid area scanning, locating people in the water, or spotting navigation aids and hazards.

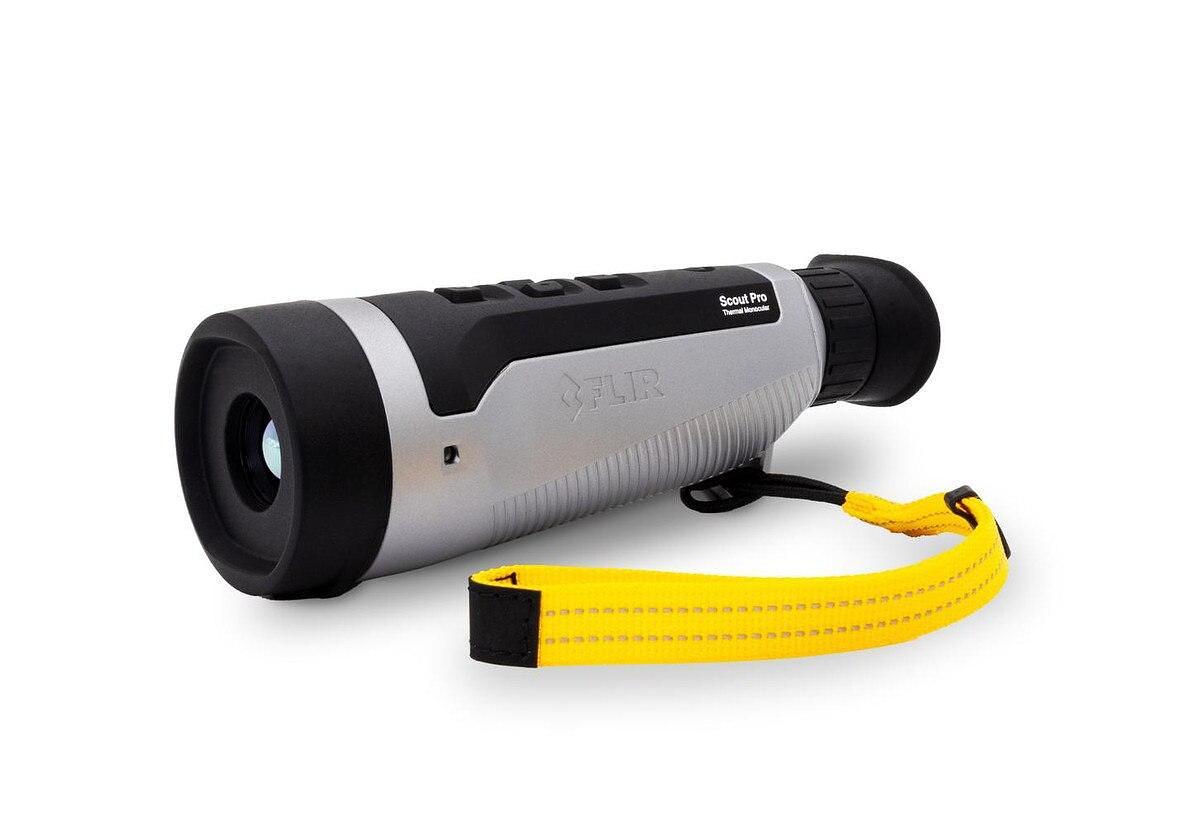

The Ocean Scout Pro includes a tactical storage pouch compatible with MOLLE webbing, USB-Ccharge/interface cable, wrist lanyard, two rubber eyecups, and a quick start guide. An internal lithium-ion battery provides up to 6 hours of runtime. The USB-Ccable provides charging and enables file transfer to a connected PC.

Specifications
Field of View (FOV)

32 deg
Focal length	19 mm
F-number	f/ 1.0
Focus	Fixed focus
Human detection range	500 m (540 yards)
Minimum focus distance	4 m (13 ft)
Detector frame rate	30 Hz
Display frame rate	60 Hz
Thermal sensitivity, NETD	Less than 38 mK @ 30 degC (86 degF)
Detector Resolution	640 × 480, vox microbolometer
Image processing	FLIR proprietary Digital Detail EnhancementTM
Color (housing)	Silver
Drop rating	2 m (6 ft 7 in)
IP rating	IP67
User interface
Zoom	2x, 4x, 6x, 8x
Modes	White Hot, Black Hot, Sepia, and Heat
Disable radio and Wi-Fi	Physical On/Off switch
Image presentation
Built-in display	XGA 1024 × 768
Video	XGA 1024 × 768
Power
Batttery life	Up to 6 hours
Battery type	Internal Li-Ion cell
Charging time	2 h at 80%
Physical
Size (L x W x H)	19.2 cm × 6.4 cm × 6.4 cm (7.5 in × 2.5 in × 2.5 in)
Weight (incl. battery)	498 g (1 lb 2 oz)
Tripod mounting	UNC 1/4-20
Image storage
Media gallery	Scout Pro App (iOS only)
Storage media	Embedded flash
Image storage capacity	Greater than 1000
Image storage mode	IR
File formats	Standard JPEG
Video recording	Yes
Non-radiometric IR video recording	MPEG4 AVC (ITU-T H.264)
Storage capacity	16 GB
Video streaming	Yes
Non-radiometric IR video streaming	Wi-Fi/RTSP (MPEG4 AVC (ITU-T H.264))
USB streaming	UVC (YUV422 no overlay)
Wireless connectivity
Bluetooth	BLE
Streaming	Wi-Fi
Warranty and service
Warranty	support.flir.com/oceanscout-pro
