Raritan 88 Series Iceamaker Built-in Flange, Free Standing 120V
Model: 88B515-1
UPC: 85462034404
Improved controls for more efficient operation.Cabinet and door built to last in harsh marine environments.Removable ice bucket stores up to 11 lbs of crescent ice (1/2 in W x 3/4 in H x 2-1/2 in L)No drain required makes it easy and inexpensive to install.Only requires a 1/4 in outside diameter water line.Does not require additional hinge clearance for door swing.Includes flange.No additional side space required for ventilation.Water Pressure Operating Range 20-120 All ventilation from front, limited vent in back of unit. No additional clearance required around the sides. Adjustable rubber leveling feet Water supply Inlet size 1/4 in OD and requires 3/4 space behind the unit for clearance Water supply inlet located in lower right of rear opposite of the power cordSpecificationsElectrical requirements
| 115V/60Hz with USA plug |
| Volatage range | 104V~127V |
| Maximum amp fuse | 15amps |

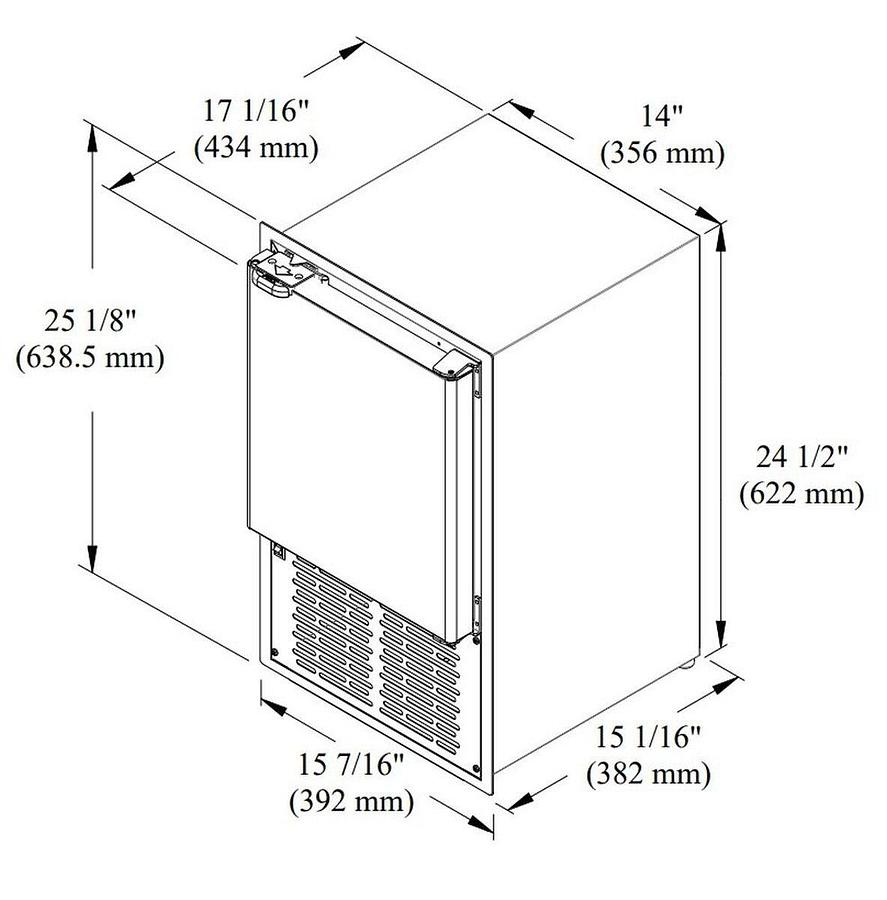

| Dimensions |
| Body | 24 1/2 H x 14 W x 17 1/16 in D |
| Flange | 25 7/16 in H x 15 1/2 in W |
"
OwnersManual
