Garmin GT24UHD-TM Ultra HD Transom Mount Transducer

Garmin GT24UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

Model: 010-12908-00

One transducer provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar

High wide CHIRP traditional sonar provides remarkably clear target separation and definition

See incredibly detailed images of fish and structure up to 200 feet below your boat with 800 kHz ClearVü sonar

Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts

The GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 - all in one transducer.

Ultra High-Definition scanning sonar shows you incredibly detailed images of fish and structure up to 200 feet below your boat with 800 kHz ClearVü scanning sonar. It's easy to install with included transom and trolling motor mounts so you can start fishing faster.

1For use with GPSMAP(R) 8400xsv/8600xsv chartplotter/sonar combos

Specifications
Traditional CHIRP

CHIRP High Wide (150-240 kHz)
Ultra High-Definition ClearVü	0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü	NA
SideVü	NA
Power
Traditional CHIRP	350 W
Ultra High-Definition ClearVü	350 W
Ultra High-Definition SideVü	NA
SideVü	NA
Beamwidth
Traditional CHIRP	Adjustable from 16 deg to 24 deg in 1 deg steps
Ultra High-Definition ClearVü	0.94 deg x 60 deg
Ultra High-Definition SideVü	NA
SideVü	NA
Maximum depth
Traditional CHIRP	800 feet
Ultra High-Definition ClearVü	200 feet
Ultra High-Definition SideVü	NA
SideVü	NA
Other
Sensors	Depth and Temperature
Number of pins	8-pin (blue connector)
Cable length	20 ft.
Supported deadrise/Transom angles	0 deg-70 deg degree transom

What's in the Box:

GT24UHD-TM transducer

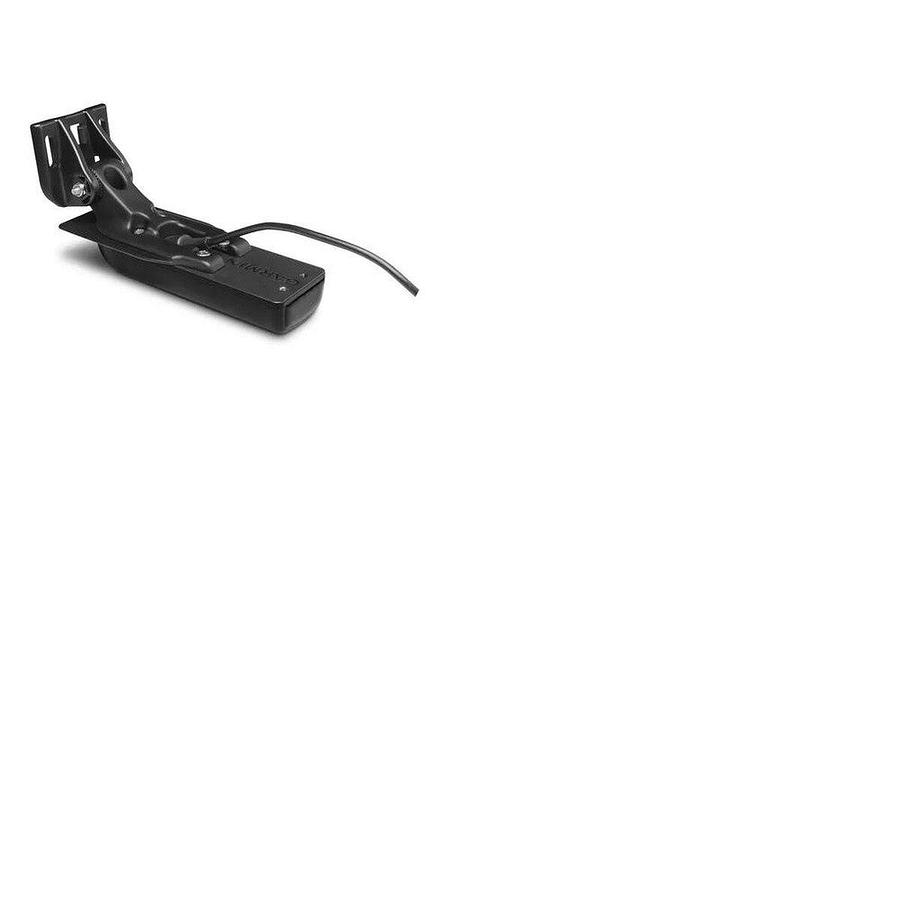

Transom mount

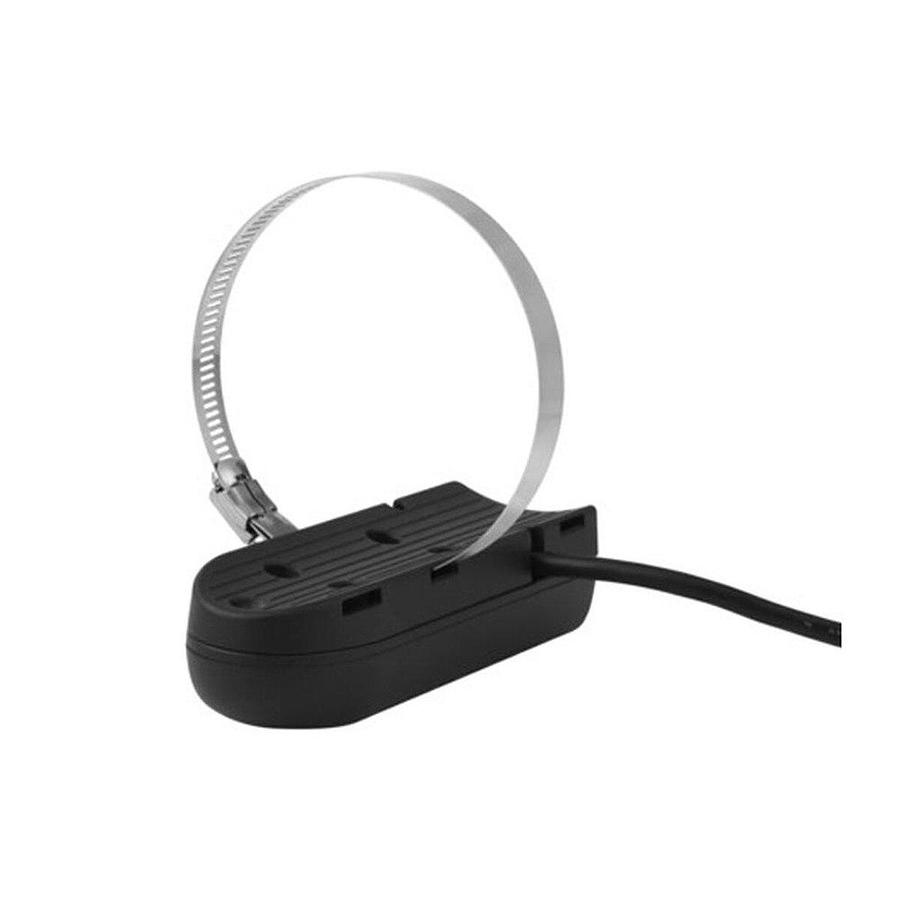

Trolling motor mount

Mounting hardware

Documentation
