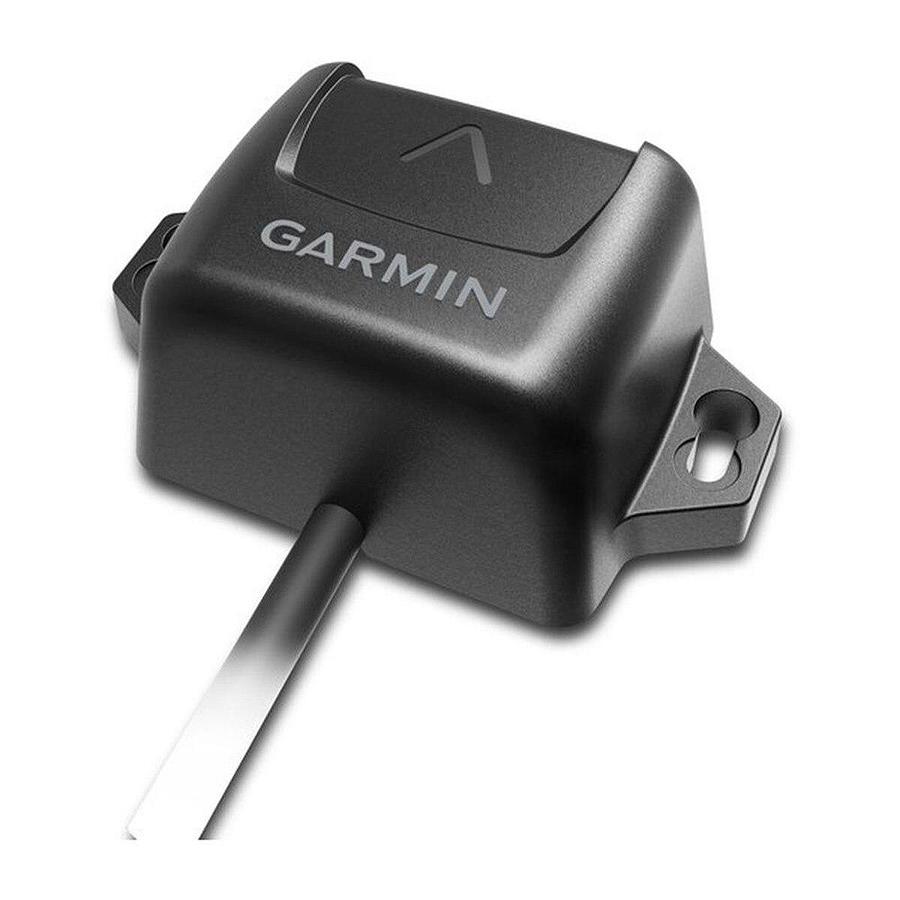

Garmin Steadycast Heading Sensor

Garmin SteadyCast Heading Sensor

Model: 010-11417-10

Ensures bow orientation on your chartplotter matches your heading

Heading accuracy of plus or minus 3 degrees

Easy NMEA 2000(R) plug-and-play interface

Simple 2-step calibration process

9-axis MEMS technology allows installation in any orientation located away from magnetic interference

SteadyCast heading sensor is a simple, easy-to-install solution that provides fast calibration and premium heading accuracy. It aligns your boat bow to its actual orientation so you know where you are casting according to your chartplotter screen.

Its heading output rate at 10 Hz and accuracy of plus or minus 3 degrees ensures your chart orientation and boat heading line match up with reality, even at trolling speeds or when dead in the water.

You can also be confident your heading information will remain accurate, even in rough water.

SteadyCast heading sensor installs easily with NMEA 2000(R) plug-and-play interface and a simple 2-step precision calibration process for compatible Garmin chartplotters. Basic calibration for displays other than Garmin is also supported. Its 9-axis MEMS technology allows installation in any orientation located away from magnetic interference, and it's built to withstand bilge environments.

Specifications
Default heading output

10Hz
Output heading	±3 degree accuracy
Water rating	IPX7
LEN	2
Input Voltage	9-32vDC
Dimensions	(LxWxH): 3.4 x 2.1 in x 1.3 in (86.3 x 52.9 x 33.7 mm)

InstallationManual
