Garmin Force Pro Trolling Motor 57in Shaft Built-in GT56UHD-TR

Garmin Force(R) Pro Trolling Motor Black 57in Trolling Motor with Built-In GT56UHD-TR Transducer

Model: 010-03011-10

Trolling motor with legendary power and performance

Multiband GPS provides superior positioning accuracy when in anchor lock, heading hold or while following a route

Includes two props: high efficiency and weedless

Wireless integration with your Garmin chartplotters allows you to create routes and control steering, thrust level, anchor lock positioning and more

Easy installation with the scissor-style mount, which includes a durable pull cable and dual gas springs for easy deployment and stowing

Get brilliant UHD scanning sonar with the included GT56UHD transducer

Clear sonar returns with extremely low levels of noise

Don't spook the fish; motor is extremely quiet above and below the water

Auto forward feature pre-aligns the motor so it's forward facing upon deployment

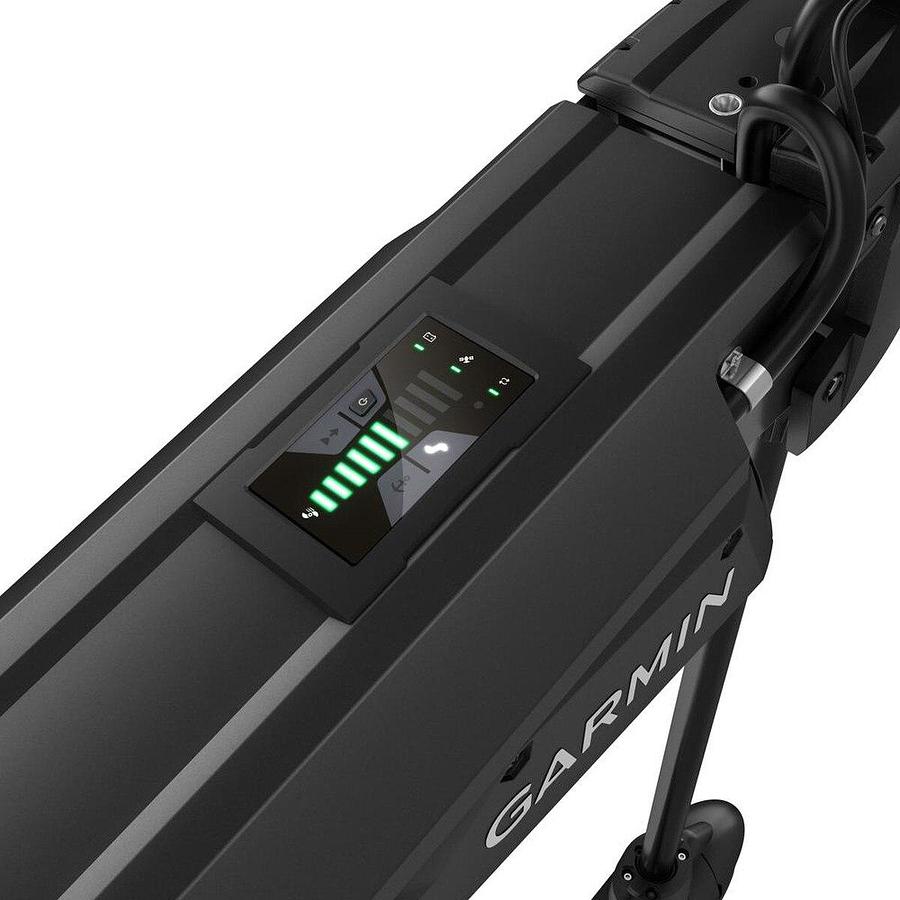

Lighted indicator on the shaft cap lets you see motor direction in low light

Manual reverse prop spin lets you easily blow off weeds when necessary

Saltwater durable with advanced corrosion protection

Fish with force with Force(R) Pro, the trolling motor with legendary power and performance. With its scissor-style mount and choice of 50 in or 57 in shaft lengths, it's designed specifically for bass boats. See everything around your boat with brilliant high-definition scanning sonar with the included all-in-one GT56UHD transducer. And once you've found the spot, stay put with our most precise anchor lock technology, now featuring reverse prop spin and calm-water cable unwrap to reduce motor activity. Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control. You can also use your integrated chartplotter to draw a route, and the trolling motor will automatically navigate while you fish. The lighted indicator on the trolling motor shaft cap means you can fish in low light and always know what direction you're headed.

Specifications
Color

Black
For use in	freshwater, brackish water and saltwater
Mount style	scissor-style mount
Max thrust	100 lbs per ISO 13342 using high efficiency propeller at 36 / 80 lbs per ISO 13342 using high efficiency propeller at 24 V
Voltage	24 V or 36 V
Electric steering	Yes
Lift-assist	dual gas springs
Built-in heading sensor	Yes
Built-in GPS	Yes (dual frequency GPS)
Warranty	3-year, limited lifetime on shaft
Water rating	IPX7
Mounting location	Bow
Wireless remote	Yes (included)
Foot pedal compatible	Yes (included)
Battery indicator	Yes
Variable speed control	Yes (20 steps)
Lighted direction indicator	Yes
Deck stabilizer	Yes (included)
Quatix remote control supported	Yes
Manual reverse control	Yes
Sonar Features
Frequencies supported	Traditional: High-wide CHIRP (150-240 kHz)ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
Transmit power	Traditional: 350 WClearVu/SideVu: 500 W
Maximum depth	CHIRP sonar: 800 feet freshwaterClearVu: 400 feetSideVu: 500 feet
Depth/speed/temperature	depth and temperature
Number of pins	12-pin (orange connector)
Autopilot Features
Route following	Yes
Anchor lock	Yes
Smart Anchor Lock features	Yes
Anchor lock jog	Yes
Heading hold	Yes
Cruise control	Yes
Gesture features	Yes (manual+, heading hold+, jog+)
Foot Pedal Features
Dimensions	12 L x 9 in W x 4 1/2 in H
Wireless communication	Yes
Power installation	12 V/24 V/36 V wired or battery powered (2 AA)
AA battery life	1 full season
Water rating	IPX7
Adjustable pedal resistance	Yes
Remote Features
Display size	1.2 in (30.2 mm) diameter
Display resolution	240 x 240 pixels
Display type	color
