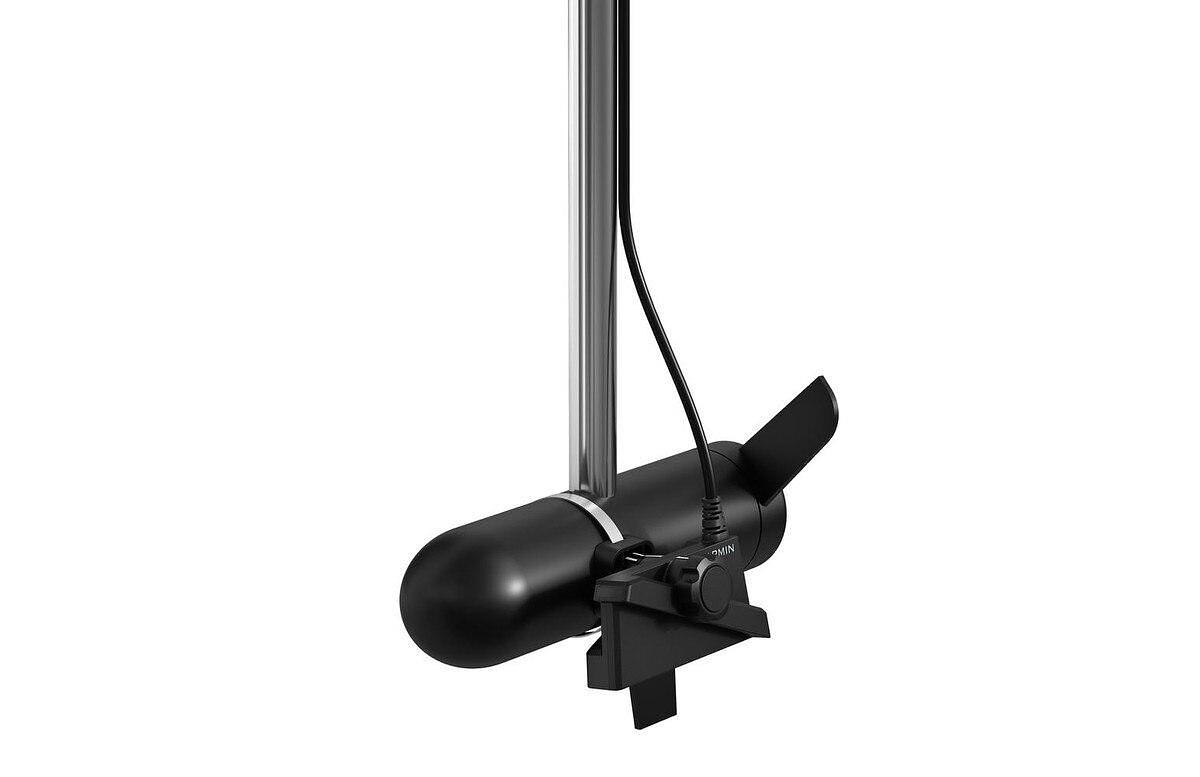

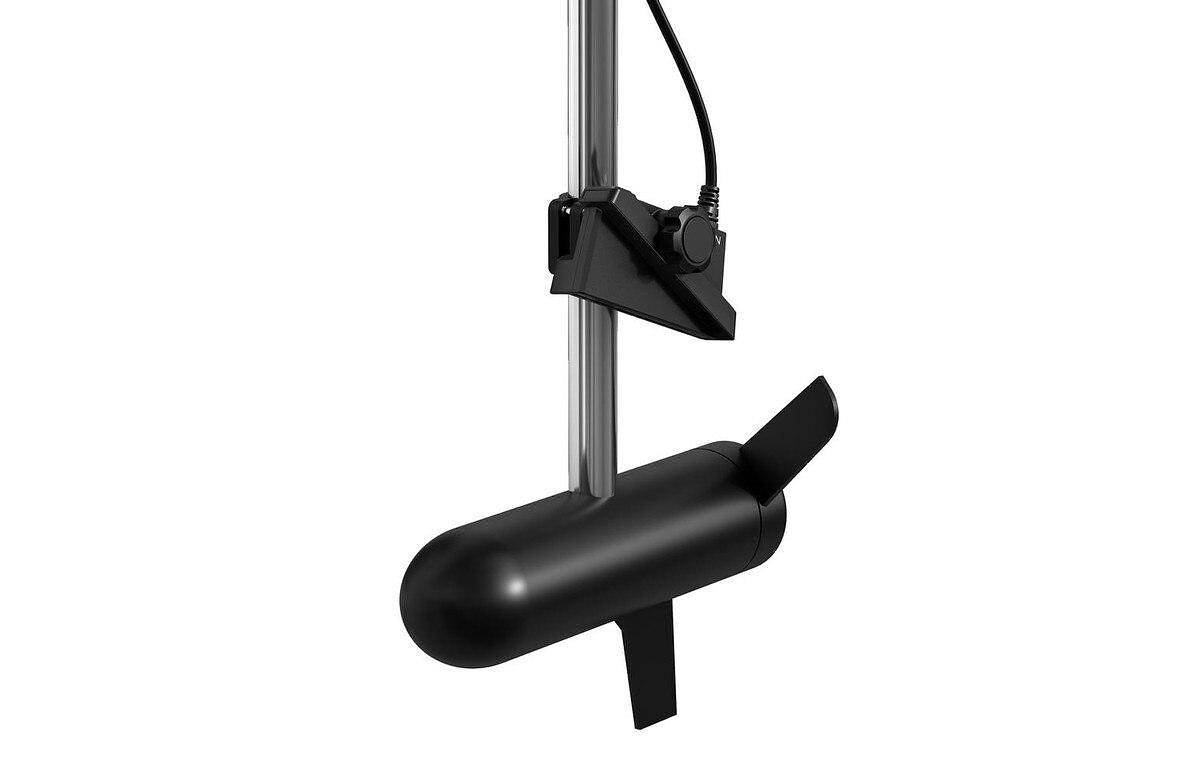

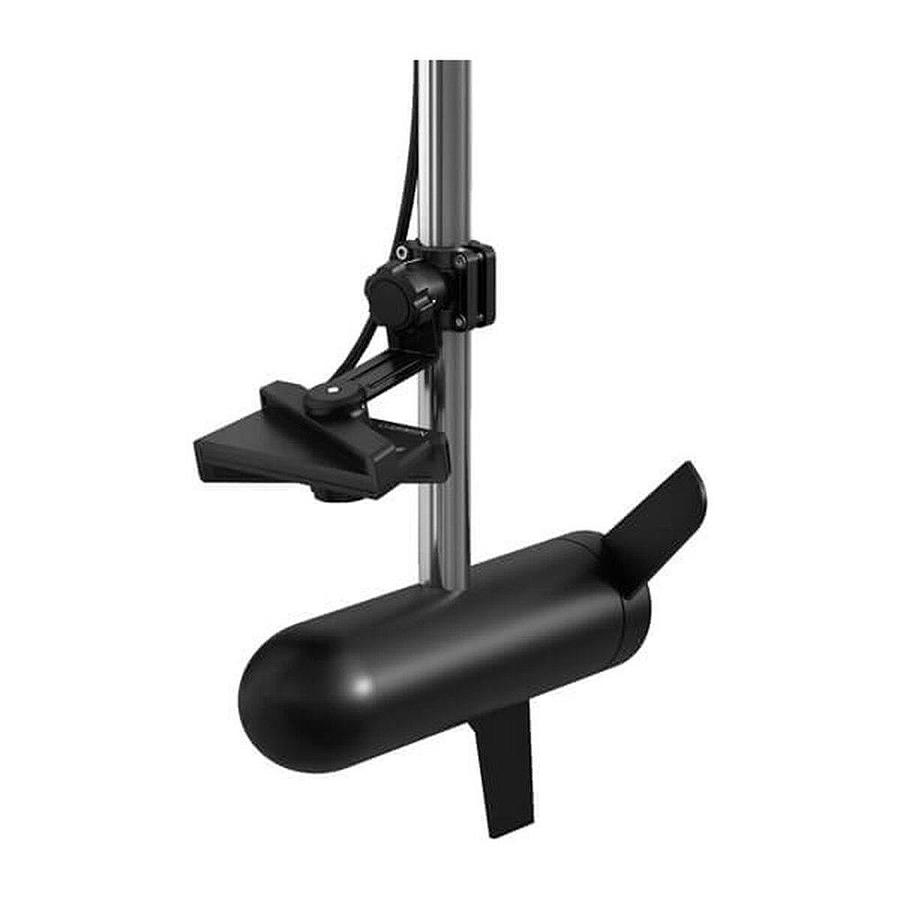

Garmin LVS34 Transducer Replacement for LiveScope Plus Transom/Trolling Motor Mount

Garmin LVS34 Transducer for Panoptix Livescop Plus

Model: 010-02706-10

See images clearly with improved screen clarity, transducer sensitivity and target separation.

Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.

Upgrade your current LiveScope System black box (GLSTM 10 sonar module) with just a new transducer.

Get maximum contrast and clarity in your images with vivid color palettes.

Don't miss a thing with supported Forward, Down and Perspective modes and necessary mount.

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.

REAL-TIME IMAGES - Real-time sonar ensures that your live images are as accurate as possible

CLEAR VISION - See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

IMAGE STABILIZATION - A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOR PALETTES - Choose from seven vivid color options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity.

Specifications
DIMENSION

6.4 in x 3.1 in x 1.9 in (16.2 x 3.1 x 4.8 cm)
WEIGHT	2.25 lbs (1.02 kg)
WATERPROOF	WATERPROOF
WATERPROOF	Operating: 0 C to 40 C
Sonar Features & Specifications
FREQUENCY	530 - 1,100 kHz
MAXDEPTH	Down and Forward: 200 feet (61.0 m)
Connections
CONNECTIONS GARMIN MARINE NETWORK PORTS	1 (small connector)
Electrical Features
POWER INPUT	10-32 V
POWER USAGE	21 W typical, 58 W max
TRANSMIT POWER	500 W
FUSE	7.5 A
COMPASS-SAFE DISTANCE	4 (0.1 m)
Additional
Minimum depth	3 feet (0.91 m)
Sonar type	Live
Beamwidth	20 deg x 135 deg
Transducer cable length	20 ft
Transducer number of pins	21

What's in the Box:

Panoptix LVS34 transducer

Perspective mount

Trolling motor barrel mount

Trolling motor barrel mount

Documentation

"
