Garmin GHC50 Marine Autopilot Control Display

Garmin GHCTM 50 Marine Autopilot Instrument

Model: 010-02731-00

A 5 in touchscreen interface with a bright display. Call it navigating with a simple touch.

Sleek. That's the look you get with the instrument's edge-to-edge glass design.

Share settings with your Garmin MFDs, and watch your integrated system come to life.

From the Garmin Marine Network (GMN) to wireless connectivity1, there are many ways to connect to your autopilot.

Control your boat your way with wired or wireless remote-controlled options.

When you're ready to discover paradise, the GHC 50 autopilot instrument helps you navigate with ease - wherever the waters take you.

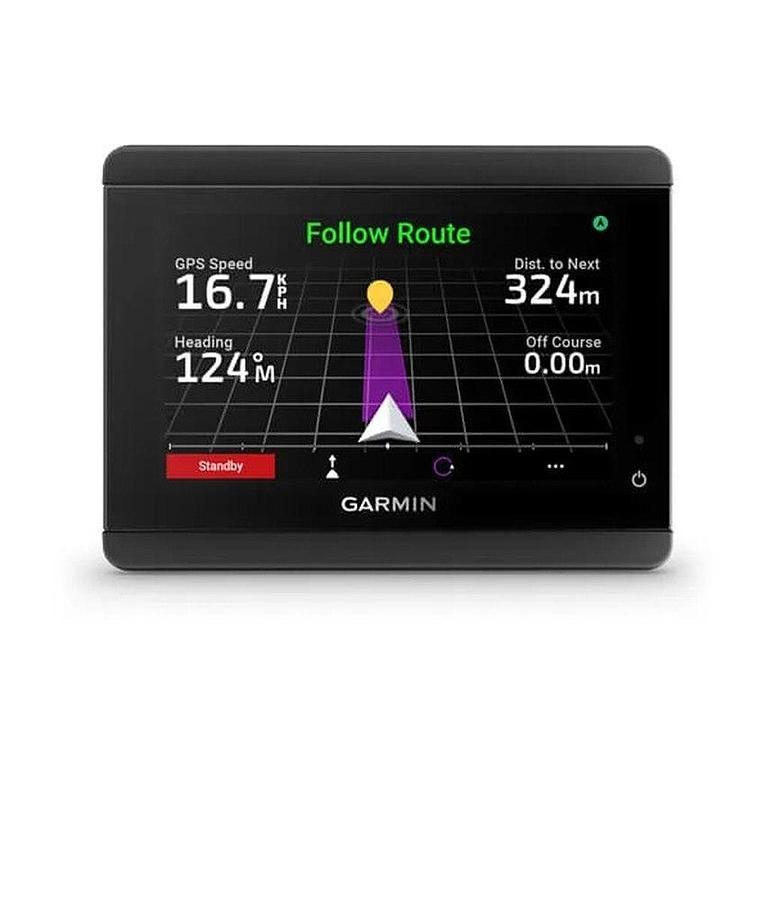

The bright 5 in WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.

With a premium industrial design and edge-to-edge glass display, the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP(R) chartplotters, creating a stunning look for your helm.

The choice is yours - control your autopilot instrument via wire or a wireless remote for a navigation experience that works best for you.

If you have multiple compatible Garmin devices on your boat, you can share information among them for a more integrated marine system.

GHC 50 works with all GHPTM Reactor autopilots, select quatix(R) multisport marine smartwatches, the Garmin autopilot remote and GRIDTM 20 remote.

If used as a stand-alone autopilot, wireless connectivity only provides software updates; use the Garmin Marine Network for sharing settings and other connected features

Specifications

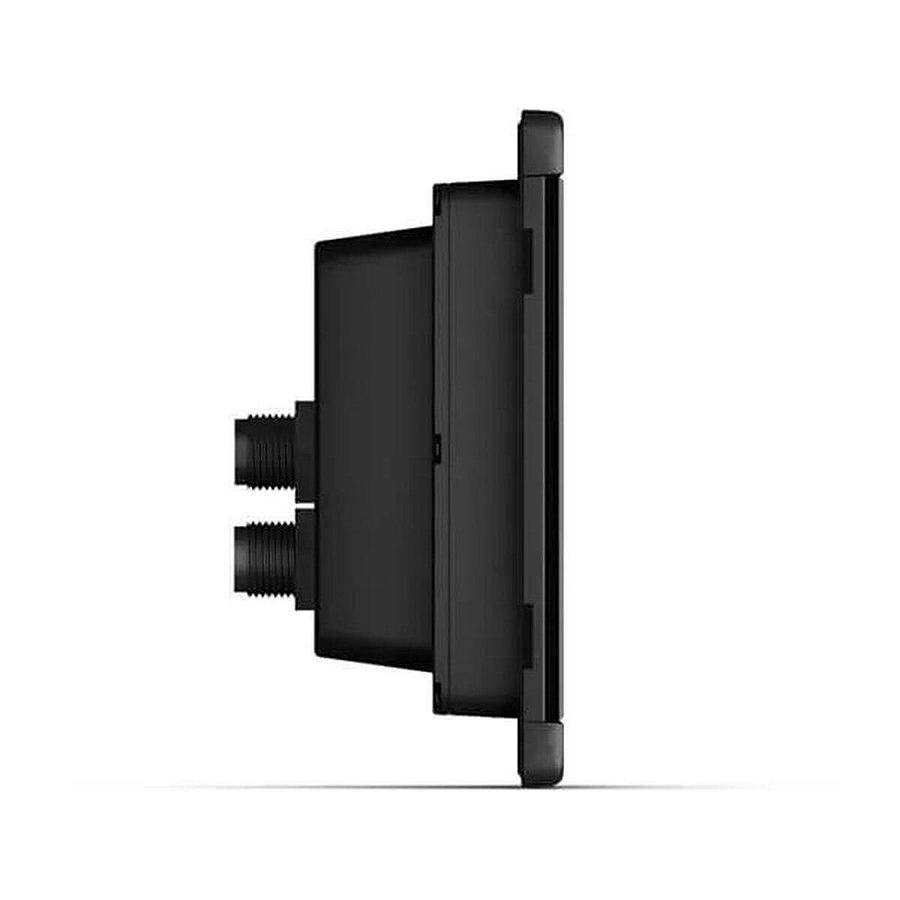

Dimensions

4.13 in x 4.51 in x 2.01 in (105 x 140 x 51 mm)
Touchscreen	yes
Display resolution	800 x 480
Display type	WVGA
Weight	11.57 oz (328 g)
Water Rating	IPX7
Mounting options	Flat or flush

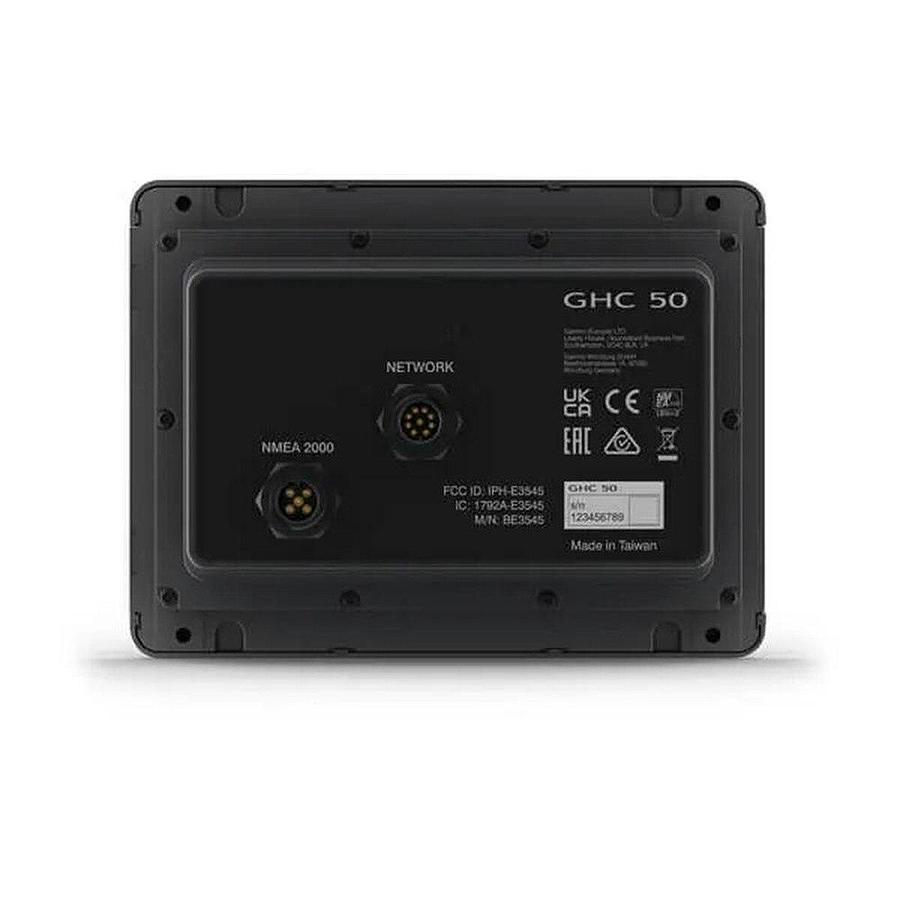

Connections
NMEA 2000 ports	1
Garmin Marine Network ports	1
ANT+ (Connectivity)	Yes
Garmin Wi-Fi Network (local connection)	yes
Electrical Features
Power input	9 to 32 Vdc
Typical current draw at 12 VDC	220 mA
Maximum current draw at 12 VDC	400 mA
Maximum power usage at 10 VDC	4.9 W

What's in the Box:

GHCTM 50

Black trim piece snap cover

Protective cover

Flush mount gasket and hardware

Garmin Marine Network cable

Garmin Marine Network adapter cable

NMEA 2000(R) drop cable

NMEA 2000 T-connectors and terminators

Documentation

InstallationManual

FlushTemplate

OwnersManual
