Garmin Striker Vivid 9sv 9in Fishfinder GPS Track Plotter With GT52

Garmin STRIKERTM Vivid 9sv with GT52 Transducer

Model: 010-02554-00

The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.

What a view. Use the included transducer to get CHIRP traditional, ClearVü and SideVü sonars.

Never lose a hot spot again. Use waypoint marking to find your way back.

What's under the water's surface looks pretty good as 1 in contours, just saying.

Wi-Fi(R) connection1 on land opens up a world of possibilities on the water.

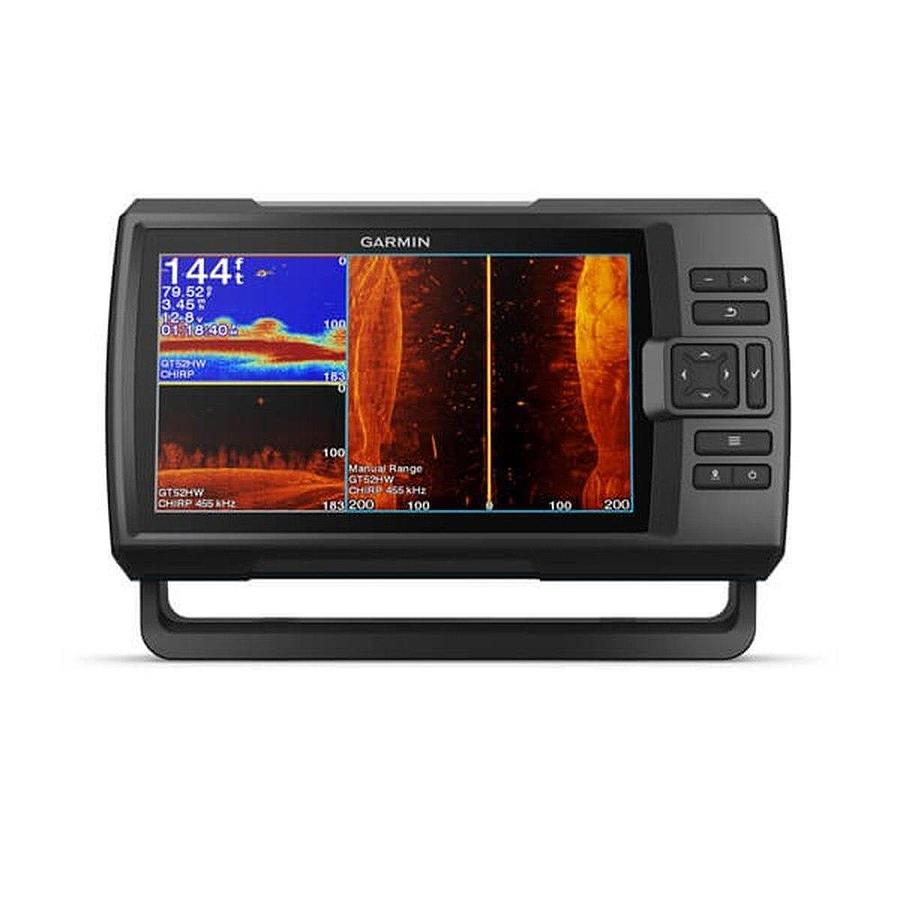

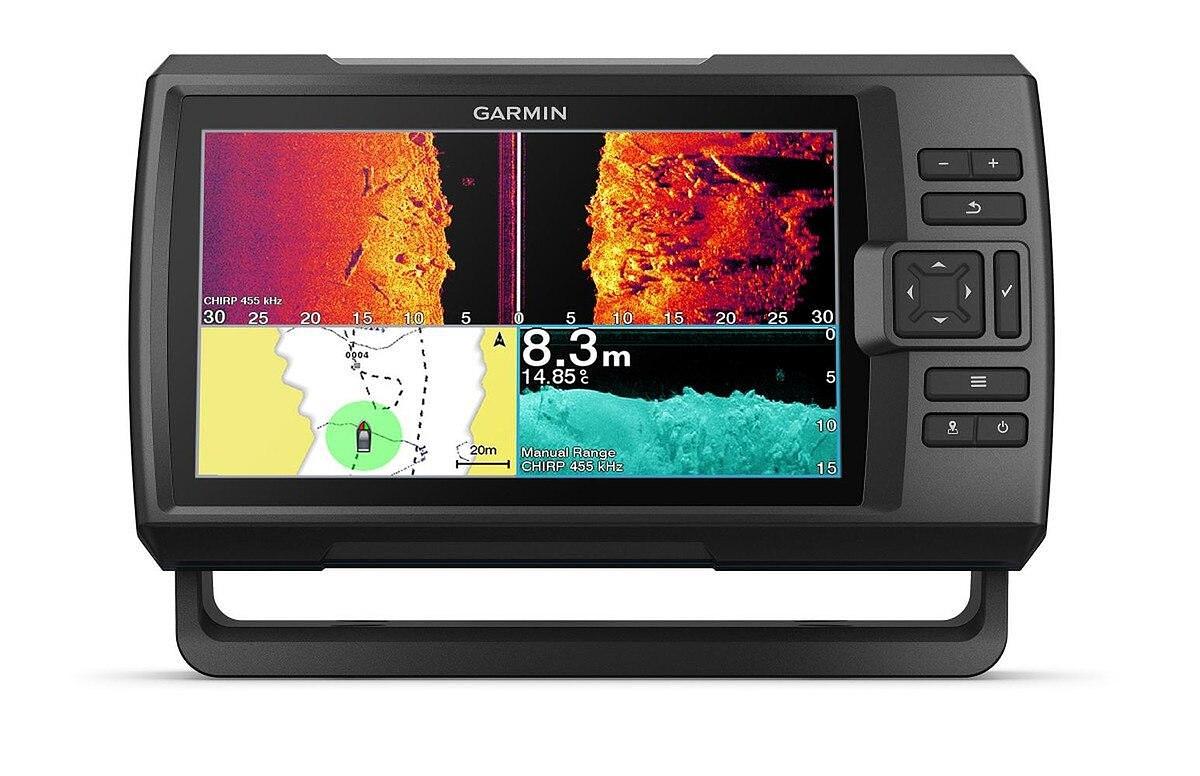

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9 in fishfinder.

Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

Plan and create routes and view your boat's speed on your fishfinder using high-sensitivity GPS.

Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1 feet contours.

Connect to the ActiveCaptain(R) app * to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin QuickdrawTM Community.

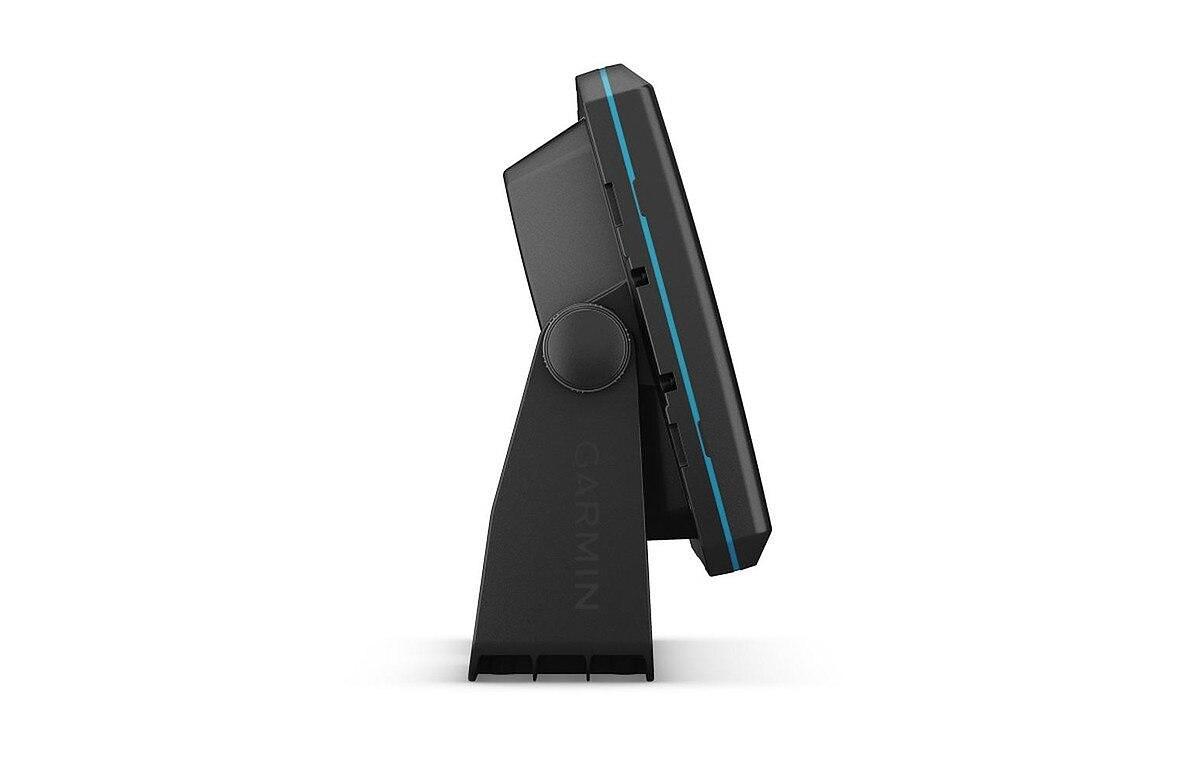

The STRIKER Vivid 7sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

* Requires ActiveCaptain app on your compatible smartphone paired to the STRIKER Vivid 7sv fishfinder; see Garmin.com/ble

Specifications
PHYSICAL DIMENSIONS

11.1 in x 6.5 in x 2.4 in (28.2 x 16.5 x 6.0 cm)
DISPLAY RESOLUTION	800 x 480 pixels
DISPLAY TYPE	WVGA color
WEIGHT	2.4 lbs (1.1 kg)
WATER RATING	IPX7
TRANSMIT POWER	500 W (RMS)
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE	Yes
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE	Yes
FREQUENCIES SUPPORTED	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)	Yes
WATER TEMPERATURE LOG AND GRAPH	Yes
Fishfinder Features
SPLIT-SCREEN ZOOM	Yes
ULTRASCROLL(R) (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)	Yes
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)	Yes
AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)	Yes
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)	Yes
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)	Yes
WATER TEMPERATURE SENSOR INCLUDED	Yes
Additional

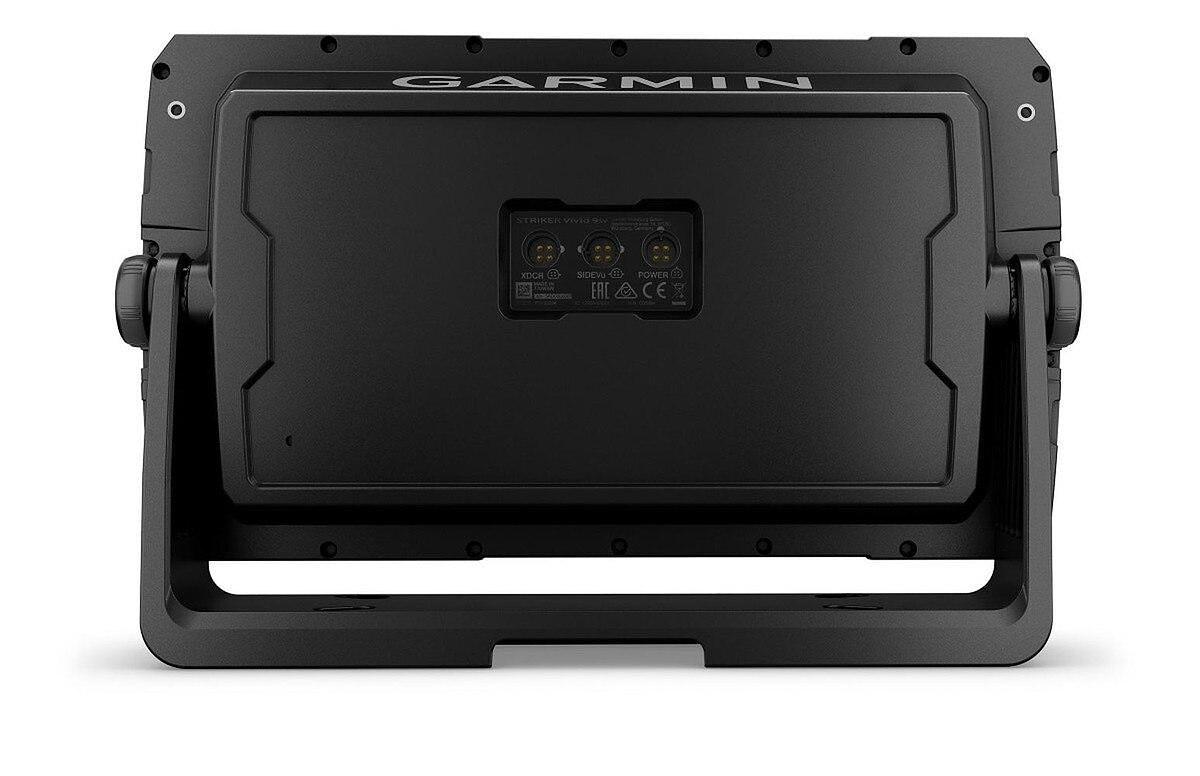

One 4-pin transducer port	Yes
One 4-pin SideVü transducer port	Yes
Wireless Connectivity	Yes
Quickdraw Contours	Yes
Integrated GPS	Yes
Mark Waypoints	Yes
Course over Ground (COG)	Yes
Current draw @ 12V	0.75A

What's in the Box:

STRIKER Vivid 9sv fishfinder

GT52HW-TM transducer

Power/data cable

12-pin to dual 4-pin transducer adapter cable

Tilt/swivel mount

Hardware

Garmin bumper sticker

Documentation

OwnersManual

InstallationManual
