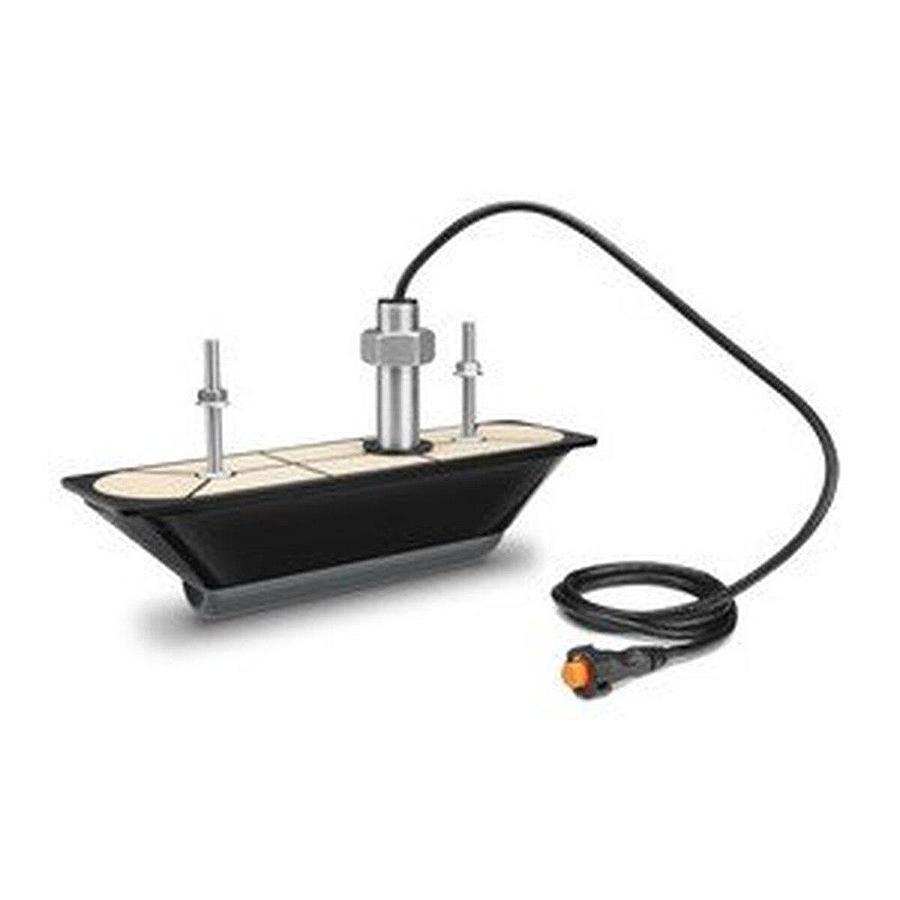

Garmin GT30-TH Thru Hull Scanning Transducer

Garmin GT30-TH Thru Hull

Scanning Transducer

Model: 010-01961-10

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem, this 12-pin thru-hull transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.

The transducer with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz1; for hull deadrises less than 5 degrees. Pair it with your GCVTM 10 scanning sonar module.

Includes transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications
ClearVü/SideVü CHIRP

455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power
ClearVü/SideVü	500 W
Beamwidth
ClearVü	1.4 degx53 deg @ 455 kHz and 0.8 degx30 deg @ 800 kHz
SideVü	1.1 degx53 deg @ 455 kHZ and 0.7 degx30 deg @ 800 kHz
Maximum depth
ClearVü	750 ft
SideVü	500 ft.
Depth/Speed/Temperature	Depth and Temperature
Number of pins	12-pin
Cable length	5 ft. + 30 ft. y-extension cable
Supported deadrise/Transom angles	Up to 25 deg deadrise
