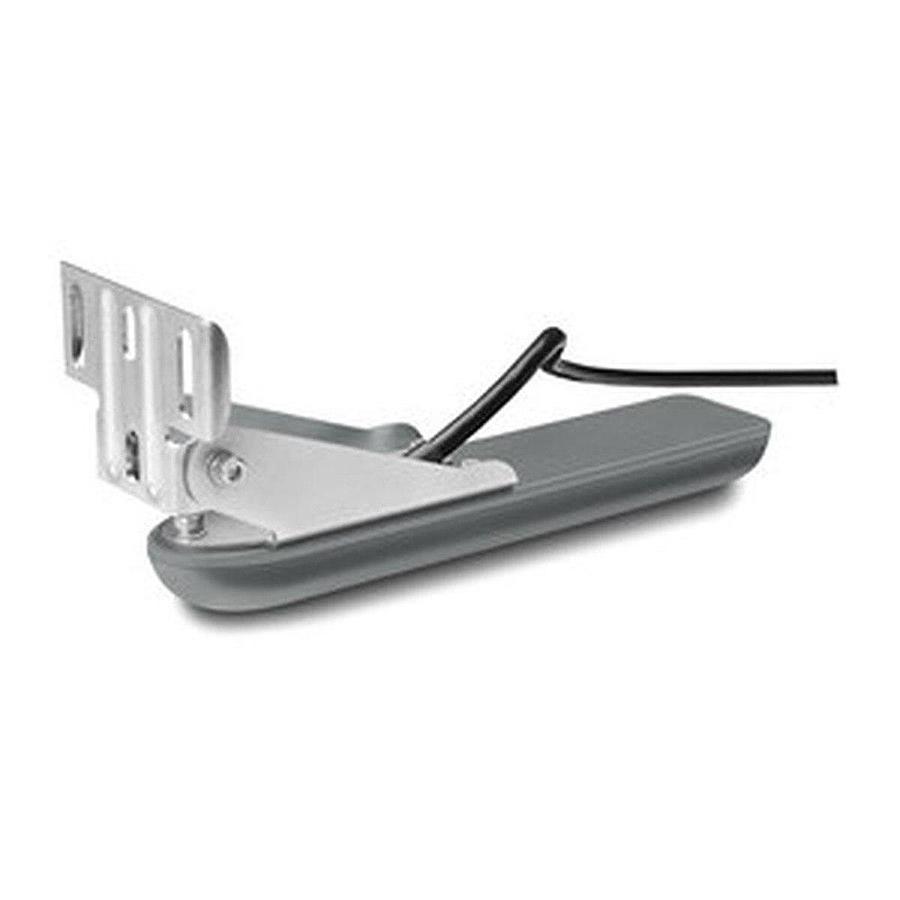

Garmin GT30-TM Transom Sidevu/Downvu Transducer

Garmin GT30-TM Transom

Sidevu/Downvu Transducer

Model: 010-01961-00

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mount transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.

The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of 455/800 kHz; and a 0 to 70 transom angle. Pair it with your GCVTM 10 black box sonar.

Transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications
ClearVü/SideVü CHIRP

455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power
ClearVü/SideVü	500 W
Beamwidth
ClearVü	1.4 degx53 deg @ 455 kHz and 0.8 degx30 deg @ 800 kHz
SideVü	1.1 degx53 deg @ 455 kHZ and 0.7 degx30 deg @ 800 kHz
Maximum depth
ClearVü	750 ft
SideVü	500 ft.
Depth/Speed/Temperature	Depth and Temperature
Number of pins	12-pin
Cable length	20 ft.
Supported deadrise/Transom angles	0 deg-70 deg degree transom
