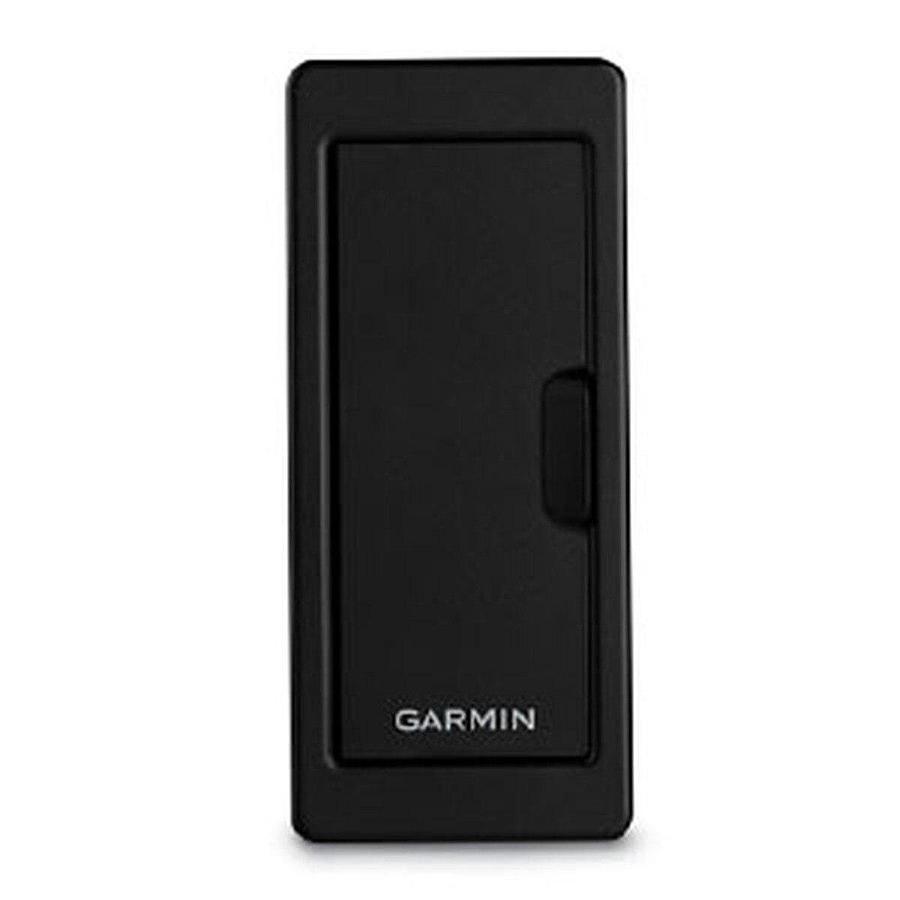

Garmin Card Reader

$219.99
or
Call +1 631-728-9200

Description

Provide convenient remote mounting and a single access point for 2 SDTM card slots for mapping with our Garmin Card Reader. A waterproof, magnetic door allows the card reader to be mounted horizontally or vertically - and you can add multiple card readers for additional access points.

  • Dimensions (W×H×D): 2 1/8 in x 4 7/8 in x 3 3/16 in (54.3 x 124.1 x 81.2 mm)
  • Weight: 6.3 oz. (178.6 g)
  • Temperature range: From 5 deg to 158 degF (from -15 deg to 70 degC)
  • Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
  • Input power: 10-35 Vdc
  • Fuse: 7.5 A, 42 V fast-acting
  • Maximum power usage at 10 Vdc: 2.4 W
  • Typical current draw at 12 Vdc: 80 mA
  • Maximum current draw at 12 Vdc: 240 mA
  • Compass-safe distance: 36 in (915 mm)
    • What's in the Box:
  • Garmin Card Reader
  • Mounting hardware
  • Power cable
  • Network cable (6 ft)
  • Documentation

    • Specifications

    ManufacturerWintron Electronics
    ConditionNew
    Stock NumberGAR0100102300
