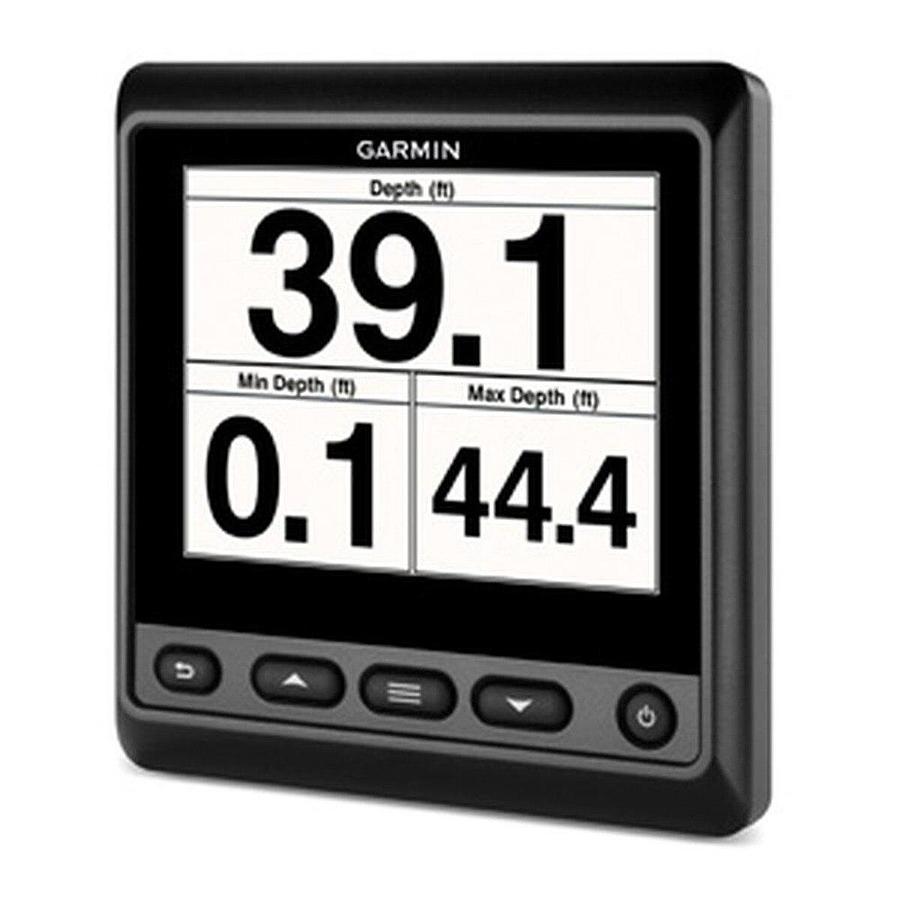

Garmin GMI20 Color Instrument Display NMEA 2000 Compatible

$499.99

Description

Perfectly Designed for Power and Sail Vessels

  • Marine instrument display clearly shows depth, speed, wind and 100+ marine and vessel parameters
  • Large, bright 4 in color glass-bonded lens display with anti-glare finish
  • Easy to read from a distance and 170 degree viewing angle
  • Enhanced night time readability with backlight dimmer and full color or new red/black or green/black color schemes
  • Enhanced daylight readability with new high contrast color option
  • The GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100+ marine and vessel parameters, its large, bright 4 in color display with extra large digits is easy to read at a distance and 170 degree viewing angle.

    A glass-bonded finish lens prevents fogging and increases contrast. Daylight readability is enhanced with a high contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control. Screens can be set to auto-scroll, cycling between pages automatically without your having to do a thing. This is especially advantageous to sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel, plus several other user-specified profiles. Power is supplied by the NMEA 2000(R) network.

    In addition, the GMI 20 also features a dedicated race timer that counts down and counts up, with an internal beeper. Included are 2 trim snap piece cover options which allow you to match the GMI 20 with the new GPSMAP(R) 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters

  • Dimensions without sun cover (H×W×D): 110 x 115 x 30 mm (4.33 in x 4.53 in x 1.18 in)
  • Dimensions with sun cover (H×W×D): 115 x 120 x 35.5 mm (4.53 in x 4.72 in x 1.40 in)
  • Weight without sun cover: 247 g (8.71 oz)
  • Weight with sun cover: 283 g (9.98 oz)
  • Temperature range: From 5 deg to 158 deg F (from -15 deg to 70 deg C)
  • Compass-safe distance: 209 mm (8.25 in)
  • Case material: Polycarbonate, waterproof to IPX7
  • Power usage: 2.5 W max
  • Unit max. voltage: 32 Vdc
  • NMEA 2000(R) input voltage: 9-16 Vdc
  • NMEA 2000 load equivalency number (LEN): 6 (300 mA at 9 Vdc)
  • In the box:

  • GMITM 20
  • Black trim piece snap cover
  • Silver/black trim piece snap cover
  • Protective cover
  • Flush mount gasket and hardware
  • NMEA 2000(R) power cable
  • NMEA 2000 drop cable
  • NMEA 2000 T-connectors and terminators
  • Documentation
  • OwnersManual
  • FlushTemplate
  • InstallationManual
  • DataSheet
  • Specifications

    ManufacturerWintron Electronics
    ConditionNew
    Stock NumberGAR0100114000
