Fusion Apollo MS-WB675 Hideaway Entertainment System

Fusion Apollo MS-WB675 Marine Hideaway Stereo

Model: 010-02346-50

Compact hideaway design means you don't sacrifice valuable dash space

Separately control and customize up to four audio zones with Multi-ZoneTM Technology

Integrated audio control with your Fusion wired remotes and compatible Garmin MFDs or smartwatches

Connect via Ethernet to your wireless network router, Garmin MFD or ApolloTM Series stereo network to enjoy audio streaming and over-the-air updates via Wi-Fi(R) technology

Stream premium quality audio from your favorite music apps via AirPlay(R) 2 software1 from Apple(R)

Amplify the moment, and maximize dash space with the Fusion Apollo WB675 marine hideaway stereo. This compact marine stereo offers Multi-ZoneTM Technology that controls up to four separate audio zones. While the Apollo WB675 stereo is small enough to fit most helm sizes or simply be tucked out of sight with its compact design, it still offers superior quality audio. Create custom audio profiles for each zone, and control the stereo with your Fusion wired remotes and compatible Garmin MFDs or smartwatches.

Specifications

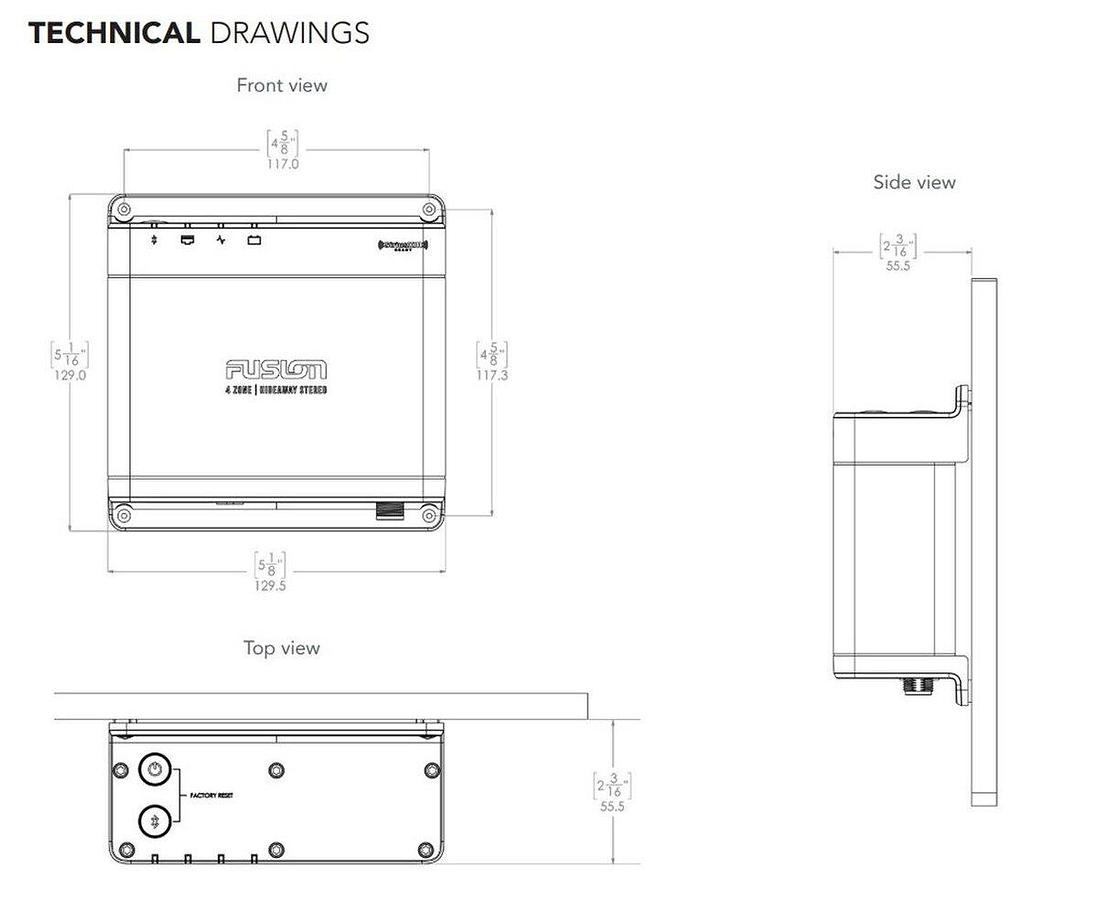

Physical dimensions (HxWxD)

5.1 x 5.1 in x 2.2 in (130 x 130 x 56 mm)
Weight	16.75 oz (475 g)
Power input	10.8-16 VDC
Operating temperature range	32-122 degrees F (0-50 degrees C)
Current (max)	15 A
NMEA 2000(R) network LEN	1 (50 mA)
BLUETOOTH(R) technology wireless range	Up to 30 feet (10 m)
ANT(R) connectivity wireless range	Up to 10 feet (3 m)
Wireless frequencies/protocols	BLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance	5.9 in (150 mm)
Stereo Features
Built-in amplifier	Class-D (2 ohm stereo-stable)
Peak power	280 watts
Built-in amplifier	Class-D (2 ohm stereo-stable)
Rated power output (2 ohm)	43 watts RMS x 4 @ 14.4 V input < 10% THD
Rated power output (4 ohm)	26 watts RMS x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing	yes (with preconfigured DSP profiles)
PartyBusTM-Network capabilities	yes (wired)
Fusion-LinkTM control	yes (with MFD
