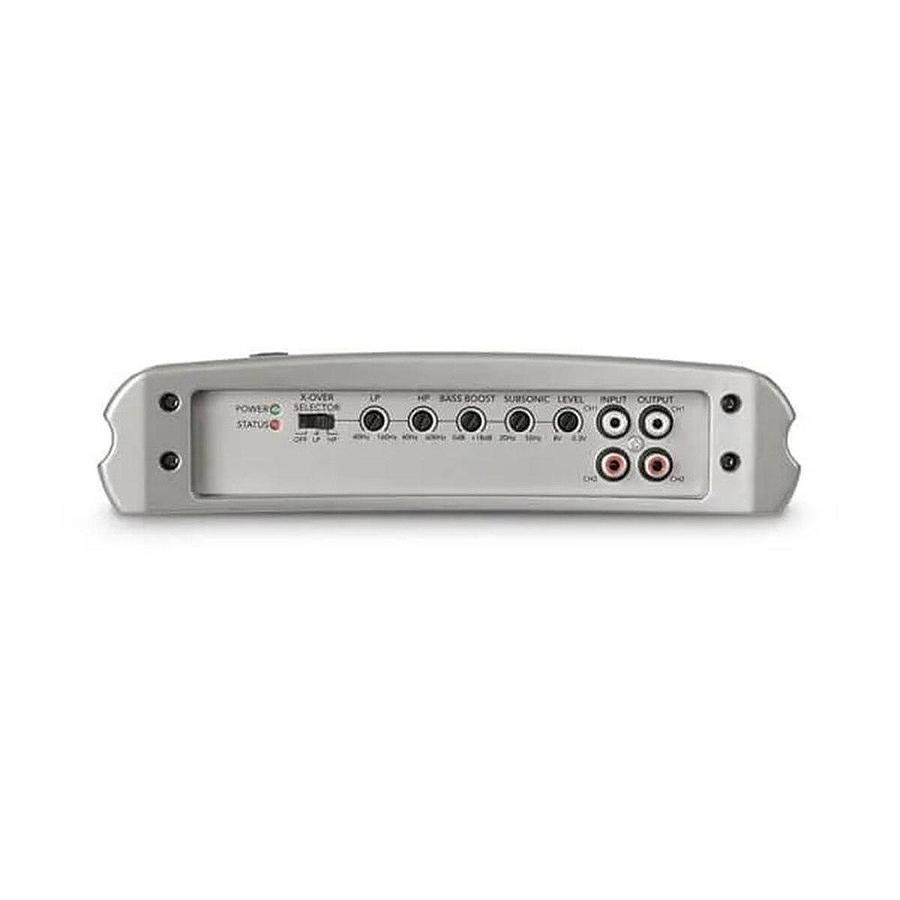

Fusion MS-AM402 Amplifier 2 Channel 400 Watts

Fusion MS-ASM402 2 Channel Marine Amplifier

Model: 010-01499-00
UPC: 07537591392471

Class AB Design - The 400 Watt 2-Ohm stable (per channel) design ensures clean and powerful amplification of the input signal, enough to rock the boat.

Conformal Coated Circuitry - Provides added protection from salt air and moisture to ensure maximum product life.

RCA Line Out - A pass through RCA output enables linking of multiple amplifiers for enhanced system performance

2 Channels - Capable of powering 2 speakers, a sub (bridged) or 4 speakers in parallel.

Marien Grade Chassis - Stainless steel end caps and bottom plate provide a stunning finish with added environmental protection.

Heat Sink Technology - Transfers heat more efficiently and offers more thermal stability for maximum componentreliability.

Specifications
Peak Power

400 Watts
Rated Power	14.4 Volt Power Output Specification 65 Watts RMS x 2 @ 4 Ohm 1% THD+N 100 Watts RMS x 2 @ 2 Ohm 1% THD+N 200 Watts RMS x 1 @ 4 Ohm Bridged 1% THD+N
Signal to noise	>95dB
Seperation	>60dB
Input sensitivity	300mV - 8V
LP variable crossover	40Hz - 160Hz @ 12dB/octave
HP variable crossover	40Hz - 600Hz @ 12dB/octave
Variable bass boost	0 - + 18dB @ 45Hz
Variable subsonic filter	20Hz - 55Hz @ 18dB/octave
Input impedance	20k?
Damping factor	>200
T.H.D.	0.05%
Fuse ratings	1 x 25amp
Dimensions	296mm L x 230mm W x 53mm H (11-2/3 in L x 9 in Wx 2-1/6 in H)

What's in the Box:

Fusion AM Series Marine Amplifie400-Watt 2 Channel Marine Amplifier

Documentation

Dimensions

OwnersManual
