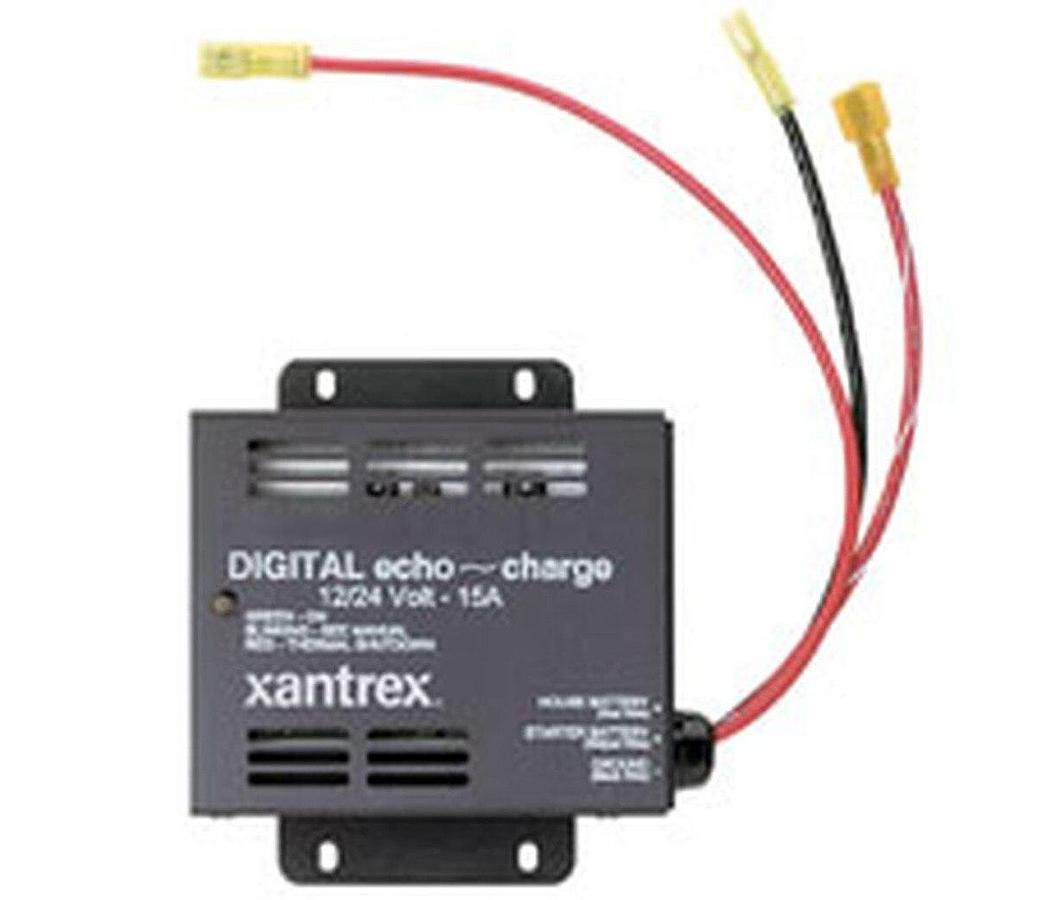

Xantrex Echo Charge 12/24VOLT

Xantrex Echo Charge Auxiliary Charger

Model: 82-0123-01

15 A maximum charge current

Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)

Automatically switches on/off without affecting the in-house battery bank or over-charging

Utilizes excess current from the primary charging source

Built-in thermal and over-current circuits

Reverse polarity protection

Easy three wire installation

Xantrex' digital echo~charge (part#82-0123-01) is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echo~charge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echo~charge is limited to 15 amps.

Specifications
Switch ON voltage (12 VDC mode)

13.0 VDC
Switch ON voltage (24 VDC mode)	26.0 VDC
Output amps	15.0 A (maximum)
Voltage limiting (12 VDC mode)	14.4 VDC ±1%
Voltage limiting (24 VDC mode)	28.8 VDC ±1%
Dimensions (HxWxD)	5.5 x 4.5 x 1.25 in
