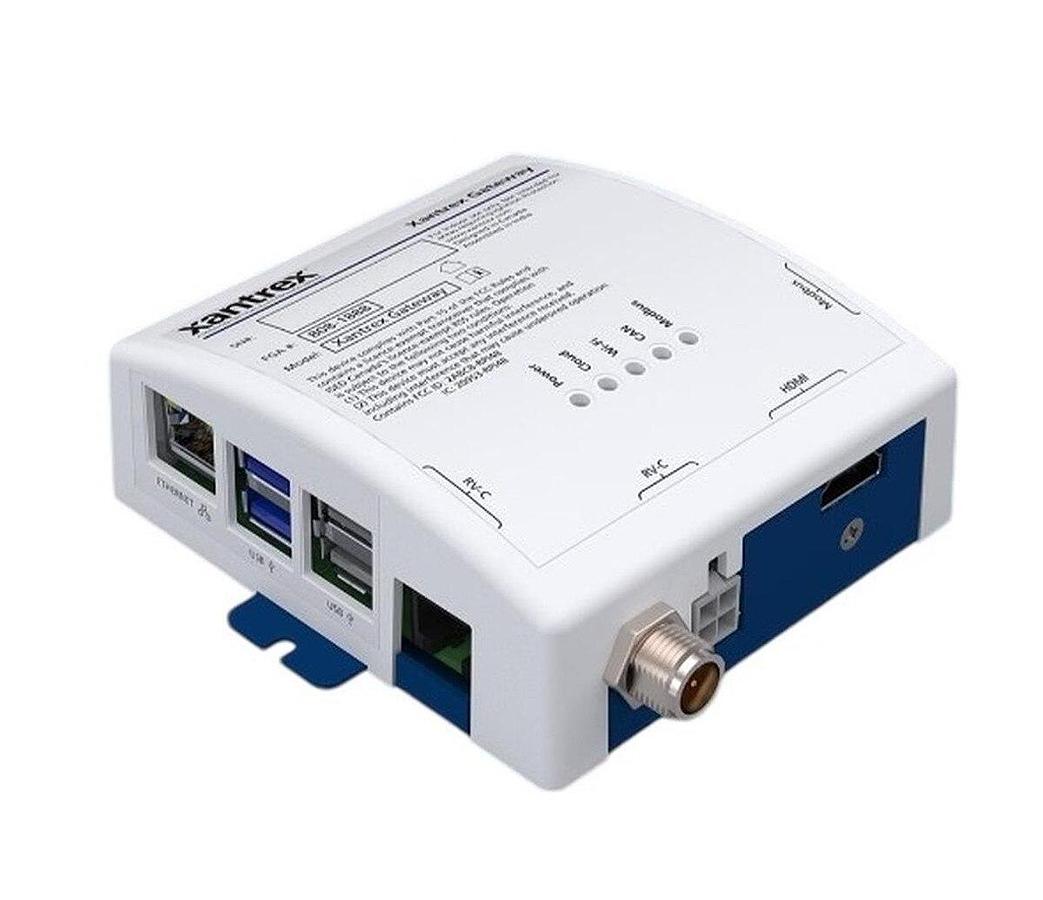

Xantrex Gateway Communication Device

Xantrex Gateway Communication Device

Model: 808-1888

Real-time update on the app

Replace multiple displays with one

Error alerts to monitor performance

Coordinated system control

No more compatibility issues or complex setups. Xantrex Gateway gives you power at your fingertips to integrate, monitor, and control all your essential components - batteries, inverter/charger, and solar controller into one seamless system for effortless operation.

Xantrex offers a complete energy system that includes easy to use connectivity. The Xantrex gateway provides a coordinated view and easy drill-down access to control and monitor your system as-a-whole rather than single separate components. Remote monitoring with the WiFi and Bluetooth capabilities makes your life easier than ever before.

Specifications
Input Power Terminals

2-Pin 16-24 AWG with flying lead and screw down terminal block
Input Voltage Range (SELV)	9-58 Vdc
Power Consumption	6.5 W excluding USB outputs
RV-C	RJ-45, 4-Pin Molex style connector
CAN	Micro-C Male
Modbus RS-485	RJ-45
HDMI	Standard
USB	2 x USB 2.0, 2 x USB 3.0
Wireless	Bluetooth, WiFi, WiFi Access Point
Housing / Mounting System	ABS Plastic, Wall-mount: 2-screw
IP Rating / Mounting Location	IP 20, NEMA Type 1, Indoor only
Temperature	Operating: -4-122 degrees F (-20-50 degrees C) - Storage: -40-185 degrees F (-40-85 degrees C)
Humidity	Less Than 95 percent, non-condensing
Dimensions (L x W x D)	4.5 x 4.3 x 1.5in (114 x 111 x 38 mm)
Weight	0.6 lb (300 g)
