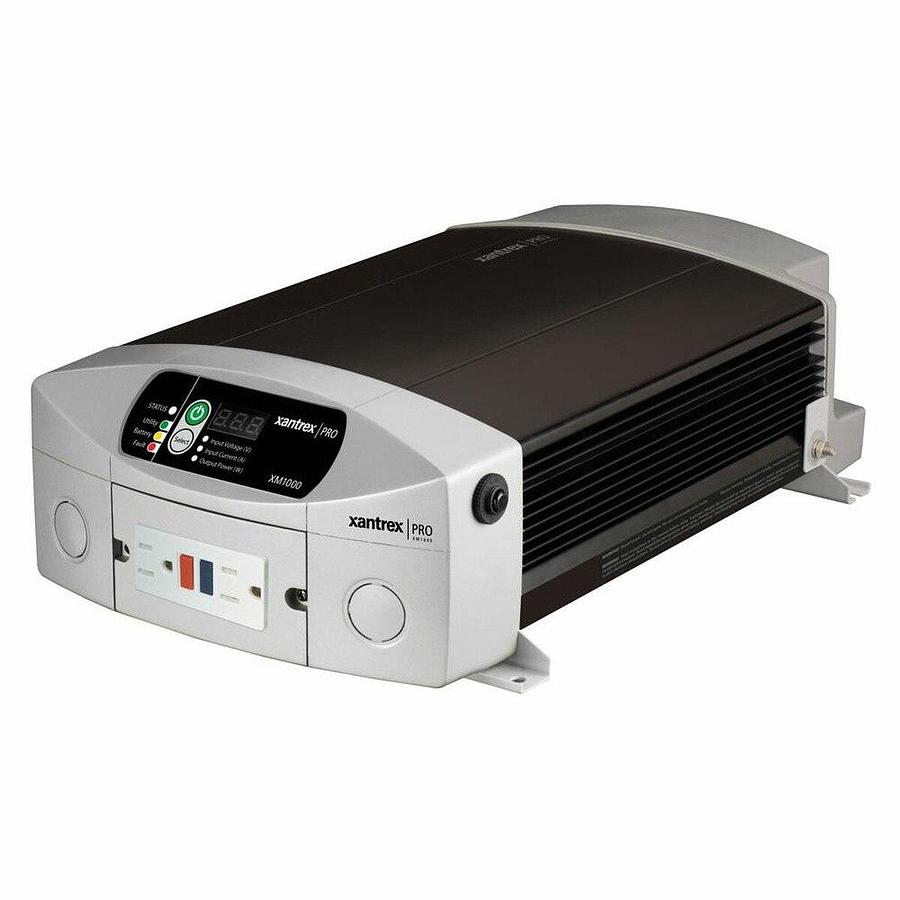

Xantrex XM1000 Inverter 1000 Watt Modified Sinewave

The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available.

Both 1000 and 1800W models are designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions.

Performance Features

1000/1800W inverter easily powers TVs, small appliances, and other electronics

Built-in 15A circuit breaker to protect GFCI connected loads

Up to 25A pass through for hardwired loads

Digital remote control displays power output, AC source and battery voltage

Detachable remote control can be mounted wherever convenient

Conformal coated electronics provide moisture resistance

Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included)

Protection Features

Battery over-voltage and under-voltage protection

Over temperature shutdown

Automatic overload protection

Short-circuit protection

Ground fault protection

Output waveform Peak efficiency No load power draw Power draw in standby mode Input operating voltage range Transfer relay rating Transfer time Operating temperature range Recommended DC fuse Dimensions (H x W x D) Weight (lbs) Part numbers Warranty <font face="Verdana" size="1 in>Note: Specifications subject to change without notice.

Electrical Specifications
	Maximum continuous power	1000 W	1800 W
	Output current (continuous)	8.3 A	15 A
	Output frequency	60 Hz +/- 1 Hz	60 Hz +/- 1Hz
Modified sine wave	Modified sine wave
88%	88%
< 6 W	< 6 W
< 2 W	< 2 W
11.0-15.5 VDC	11.0-15.5 VDC
25 A	25 A
<35 milliseconds	<35 milliseconds
0 degC - 40 degC	0 degC - 40 degC
AC receptacles	2	2
150 A	250 A
4 x 8.3 x 13 in (103 x 211 x 329mm)	4 x 8.3 x 15.5 in (103 x 211 x 393mm)
7.5	9.5
806-1010	806-1810
1 year	1 year
