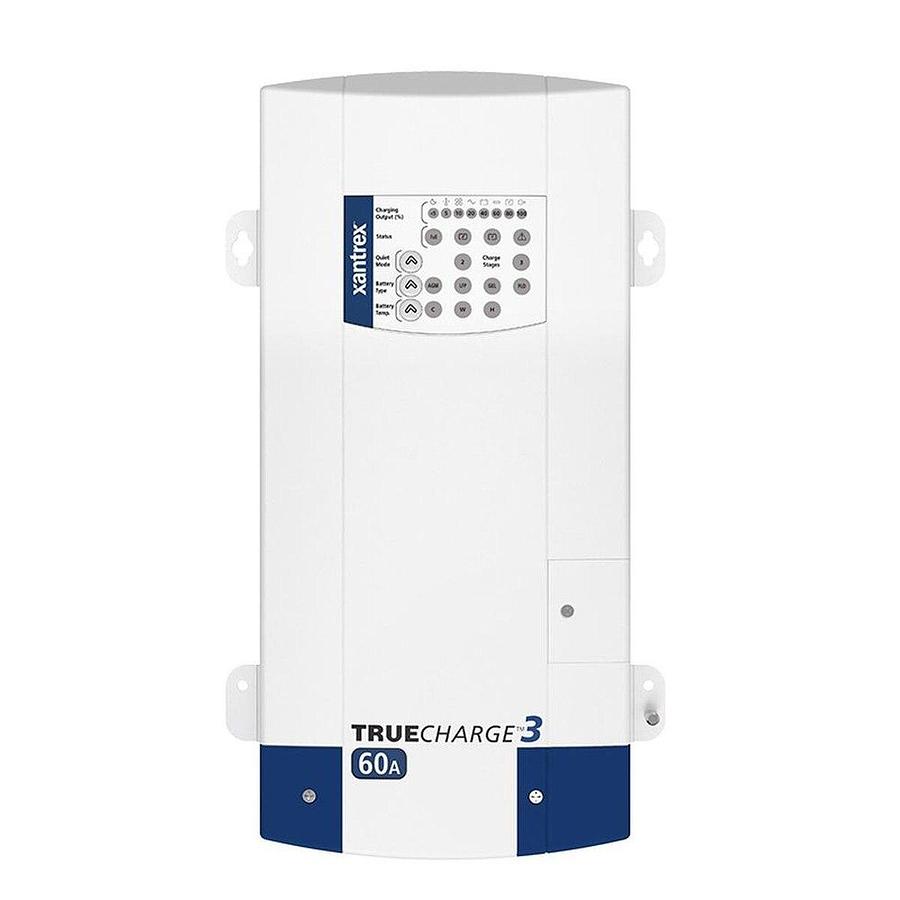

Xantrex Truecharge3 60 Amp 3 Bank 12v Charger

Xantrex Truecharge3 60 Amp 3 Bank 12v Charger

Model: 804-1260-10

Lithium-ion battery compatible

Automatic 3-stage battery charger

Parallel stack up to 2 chargers

Circuit breaker protection

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient, power factor corrected multistage charging. Thanks to their inherent drip-proof design characteristics, they can be mounted in multiple positions. Unlike it's predecessors, TRUEcharge3 is Lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90-265 Vac, 47-63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 12 V models can be augmented with an optional remote panel. Each models comes with built-in protection against surges and spikes on the AC power line.

Specifications
Output current (nominal)

60 A
Charge	14.2 - 15.5 Vdc
Float	13.4 - 13.8 Vdc
Equalize	16 V
DC output connections	Three
AC input voltage	90-265 Vac; 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal
Temperature compensation	Three settings
Charger efficiency	Greater Than 80 percent
Battery type	Gel, Flooded, AGM, Lithium-Ion
Minimum recommended battery bank size	120 Ah
Operating temperature	0-6degrees C (32-140degrees F)
Storage temperature	-40-80degrees C (-40-176degrees F)
Battery connection	Three positive terminals, One negative terminal
Weight	9.9 lb (4.5 kg)
Warranty	Two year
Dimensions	90 x 170 x 340mm (3.5 x 6.7 x 13.4in)
