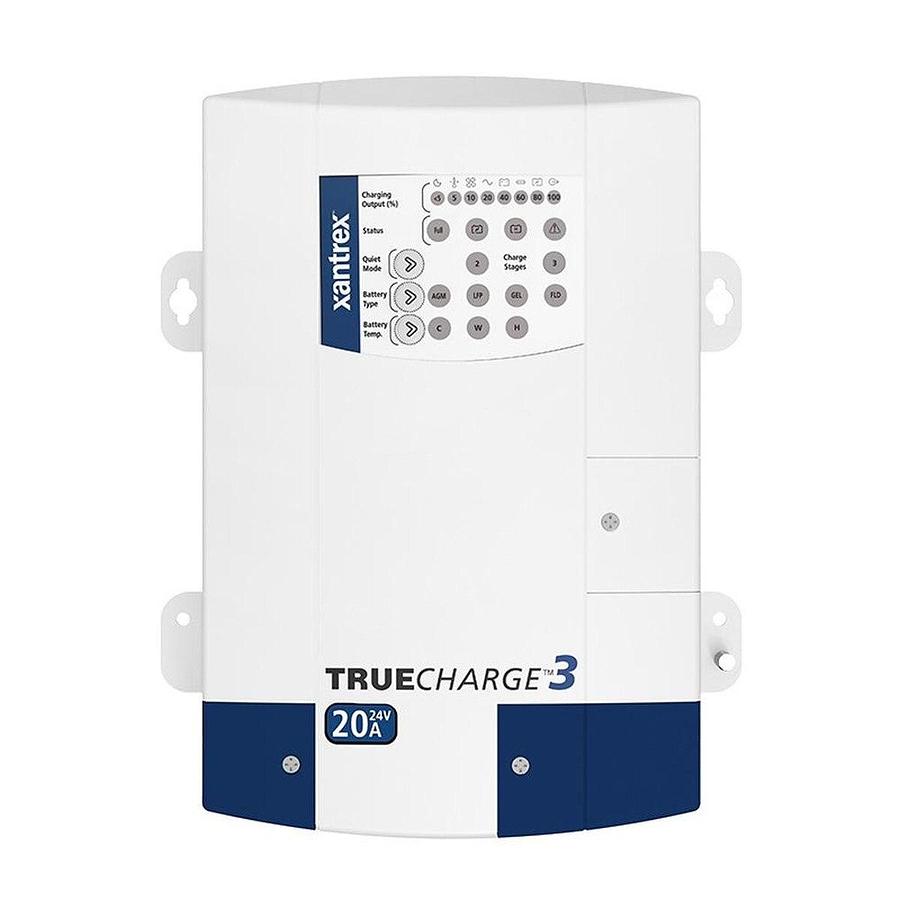

Xantrex Truecharge3 20 Amp 3 Bank 24v Charger

Xantrex Truecharge3 20 Amp 3 Bank 24v Charger

Model: 804-2420-10

Lithium-ion battery compatible

Automatic 3-stage battery charger

Parallel stack up to 2 chargers

Circuit breaker protection

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient, power factor corrected multistage charging. Thanks to their inherent drip-proof design characteristics, these chargers can be mounted in multiple positions. Unlike it's predecessors, TRUEcharge3 is Lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90-265 Vac, 47-63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be augmented with an optional remote panel. Each models comes with built-in protection against surges and spikes on the AC power line

Specifications
Output current (nominal)

20 A
Charge	28.4 - 31.0 Vdc
Float	26.8 - 27.6 Vdc
Equalize	32 Vdc
DC output connections	Three
AC input voltage	90-265; Vac 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal
Temperature compensation	Three settings
Charger efficiency	Greater Than 80 percent
Battery type	Gel, Flooded, AGM, Lithium-Ion
Minimum recommended battery bank size	40 Ah
Operating temperature	0-60 degrees C (32-140 degrees F)
Storage temperature	-40-8 degrees C (-40-176 degrees F)
Weight	4.8 lb (2.2 kg)
Warranty	Two year
Dimensions	2.8 x 6.7 x 9.8in (70 x 170 x 250 mm)
