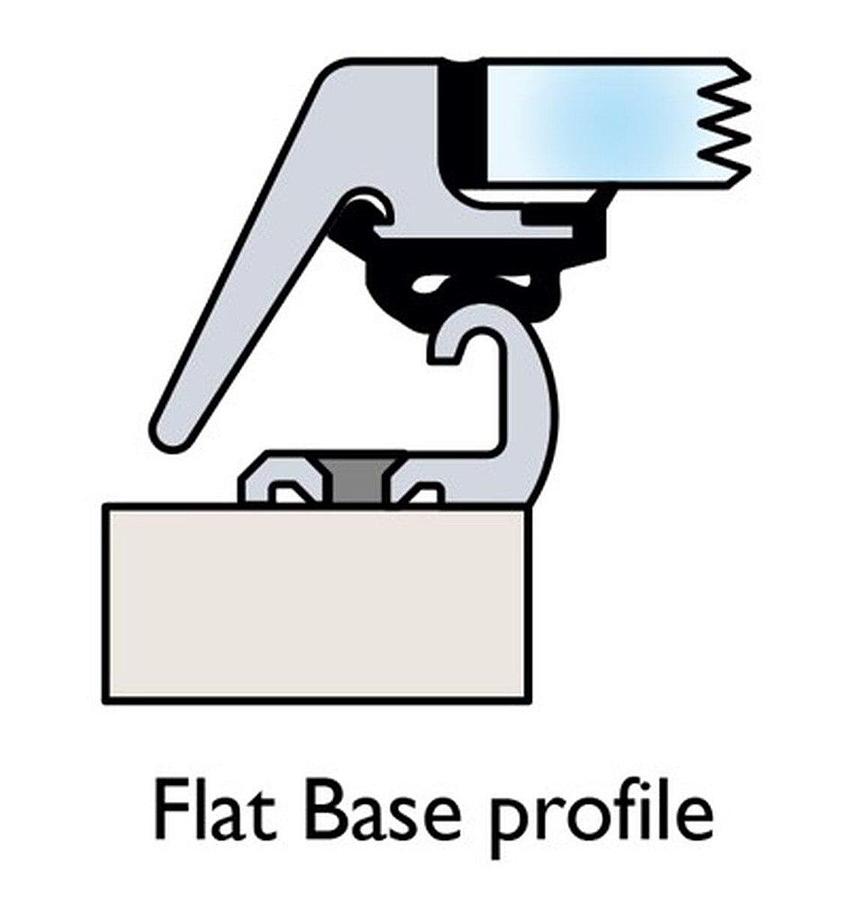

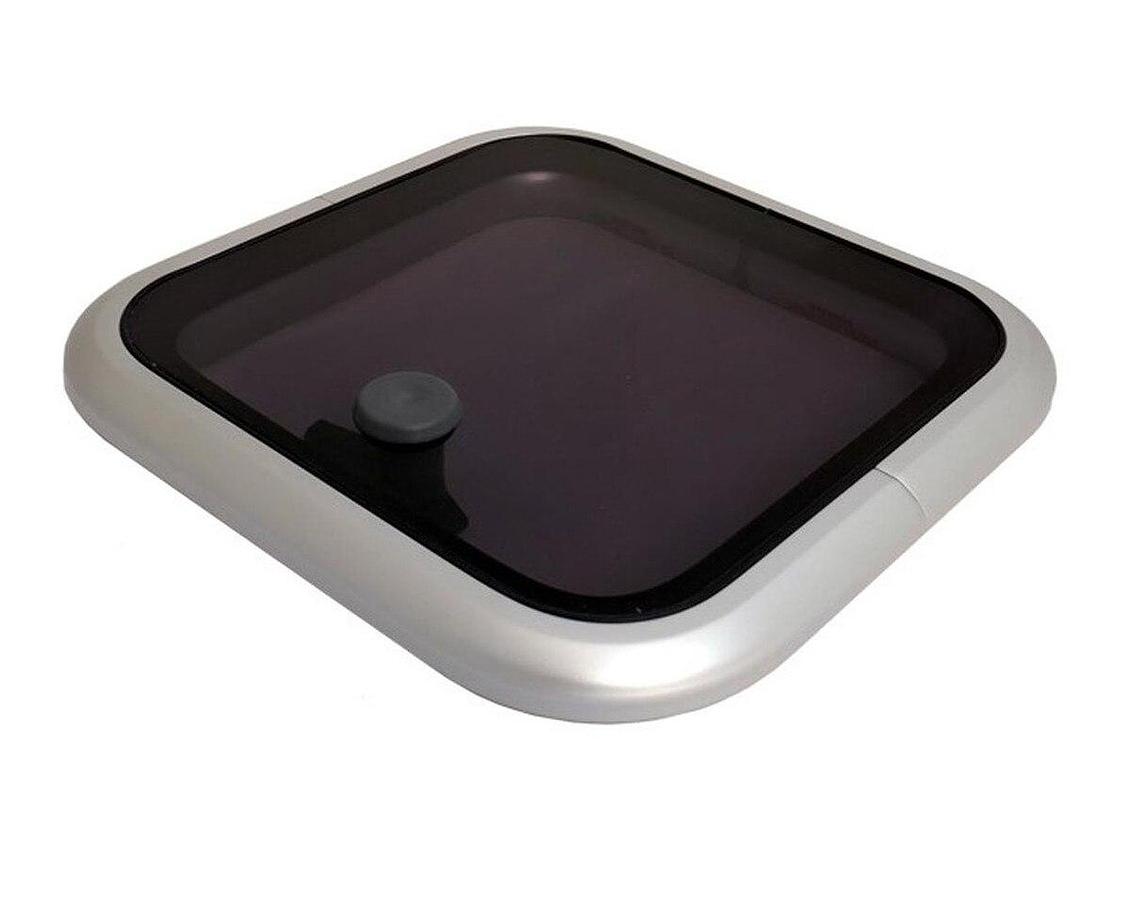

Lewmar Size 10 Ocean Series Hatch Flat Base

Fit to a flat surface with a maximum tolerance of +/- 1mm.

Fastening size at hinge section use (M6 / 1/4 in).

Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Flat base hatches cannot be used with Trim kits or Roller shades

Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
Flat Base	Smoke Grey	5.77	3/8

Dimensions

<table cellpadding="0 in style="border-collapse: collapse" border="1 in> Length X (in)Width Y (in)Height Z (in)Radii R (in)Hinge Length HX (in)Hinge Width HY (in)Cut-Out Length Flat X1 (in)Cut-Out Width Flat Y1 (in)Cut-Out Radii Flat R1 (in) 12 3/412 3/41 9/162 15/163/165 7/1610 1/1610 1/161 9/16
