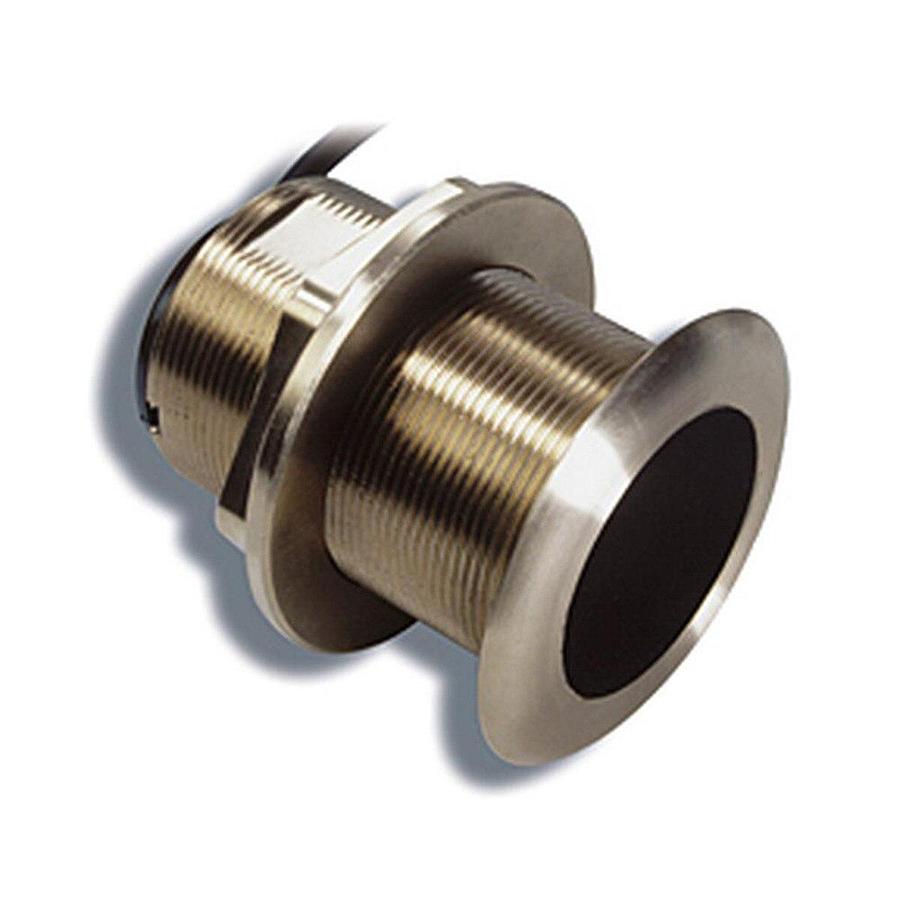

Sitex B60-20ES 50/200 600W 20D Tilted Element Depth/Temp

$500

or

Features

Fixed 20 deg tilted version for 16 deg to 24 deg hull deadrise

Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise

Engineered for center-console and trailered boats

Low-profile protrusion below the hull

No affect on your boats running performance

Bronze or stainless steel housings available

Arrow on cap points toward keel when installed

Built-in temperature sensor

50/200 kHz-A
Number of Elements and Configuration
Beam Width (@-3 dB)	45 deg	12 deg
RMS Power (W)	600 W	600 W
TVR	155 dB	164 dB
RVR	-174 dB	-184 dB
FOM*	-31	-21
Q	28	31

DataSheet
