Shadow Caster SCM-ZC-KIT Multi-Zone Lighting Controller

Shadow-Caster SCM-ZC-Kit Marine LED Multi-Zone Lighting Controller

Model: SCM-ZC-Kit

Control Up to 4 Zones of Standard 4 or 5 wire RGB or Shadow-Caster Lights

Quickly Adjust and Change Color and Brightness of Connected Lights

Control Multiple Configurations of Color-Changing Patterns and Modes

Includes 3.5 mm Audio Input for easy Lights and Music Synchronization

Supports Up to 500 Watts of RGB Lighting

Includes IP65-Rated Push-Button Head Unit

2-Year Warranty

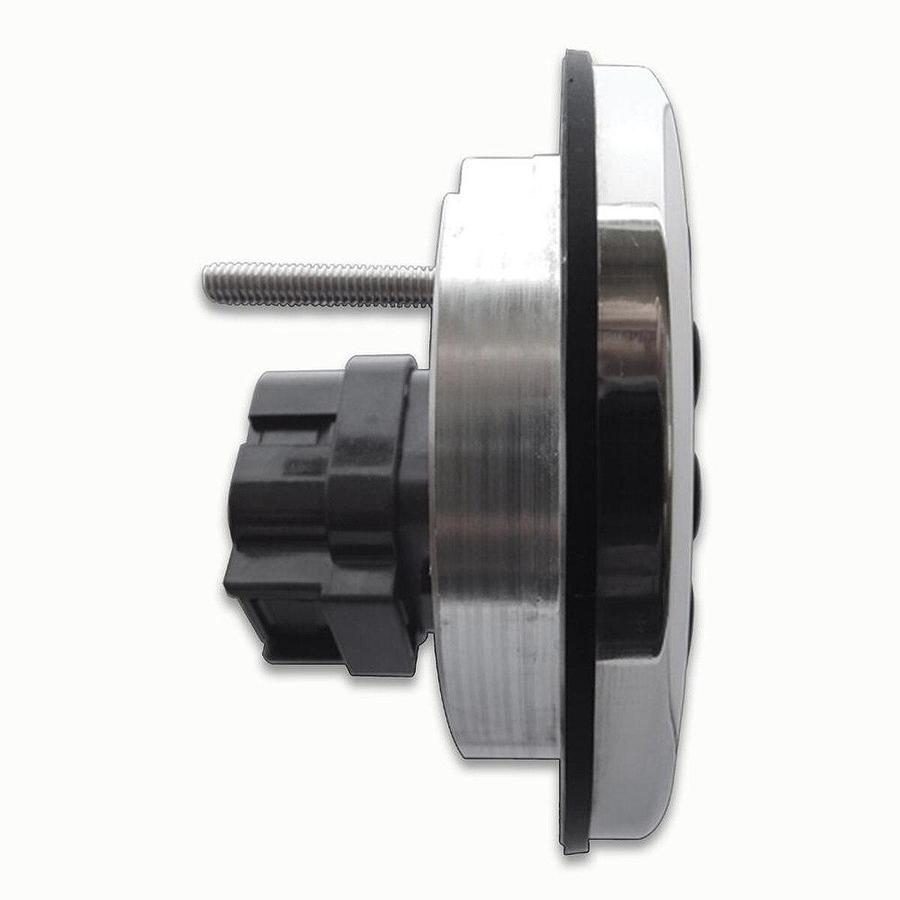

UV stabilized polycarbonate cover with stainless steel bezel

Machined aluminum rear housing

IP65-Rated

Supports up to 500 watts of LED lights

16 Illuminated silicone buttons

4 Independent Zones

Shadow-Net Enabled

Made in the USA

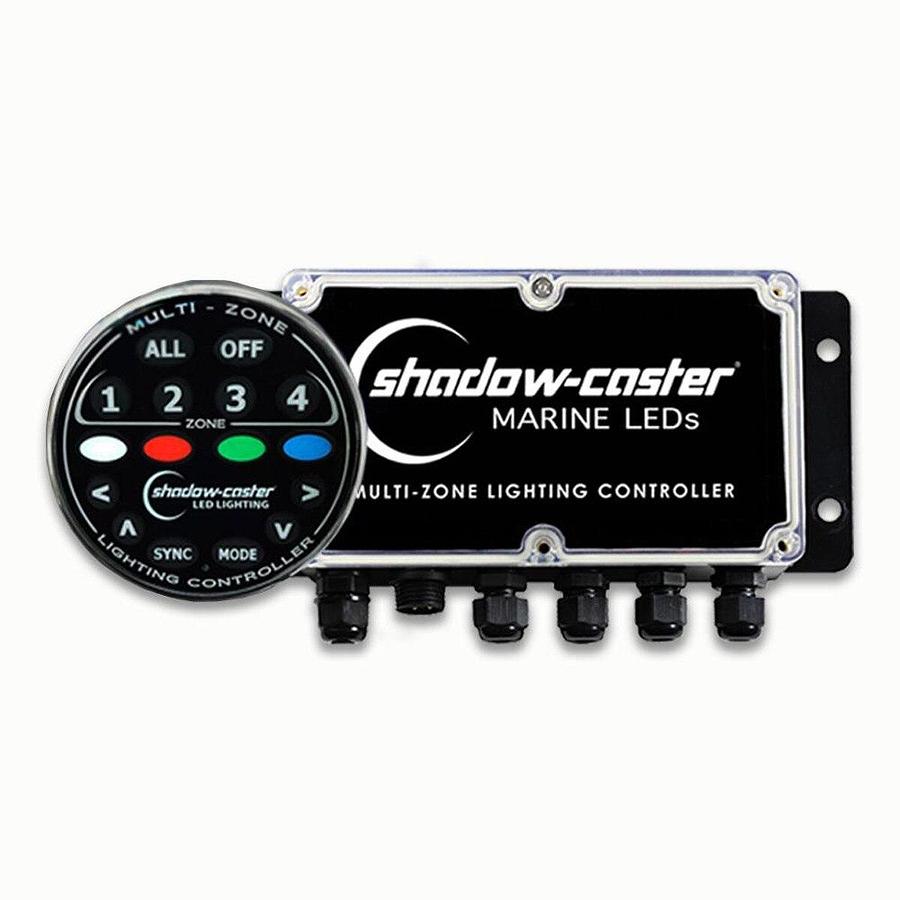

The Shadow-Caster Zone Controller allows a user the ability to seamlessly control up to 4 zones of lighting independently, or synchronize zones together for a clean, uniform look. Easily switch colors, adjust brightness, or synchronize lights with music. The SCM-ZC-Kit comes with a remote push button head unit for easy push-button control

Specifications
Size 3.625 in outside diameter X 0.5 in Height (92 x 13mm)

3.625 in outside diameter X 0.5 in Height (92 x 13mm)
Operating Voltage	10 - 30 volts DC
