Shadow Caster SCM-PD4CH 4 Channel Power Relay with Shadow-Net Control

Shadow Caster SCM-PD4CH 4 Channel Power Relay with Shadow-Net Control

Model: SCM-PD4CH

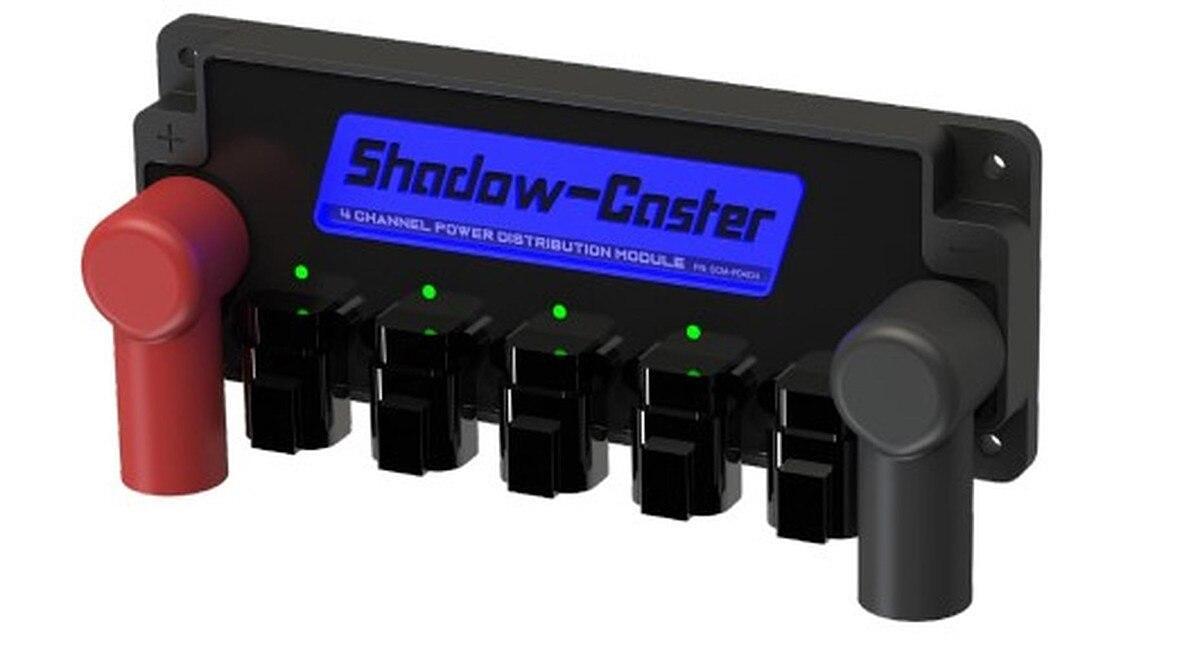

Compact remote power control box

Green and red LED indicates the statusof each output channel

Individual digital overcurrent protectionfor each channel

Compatible with Shadow-CasterTM singleand multi-color lights

Recommended when installing two ormore underwater lights

Can be used with a helm mountedswitch or with no switch when using acompatible Shadow-NETTM controller

Blue LED Backlight indicates powerstate

Compatible with 12 or 24V systems

Up to 10 amps per channel

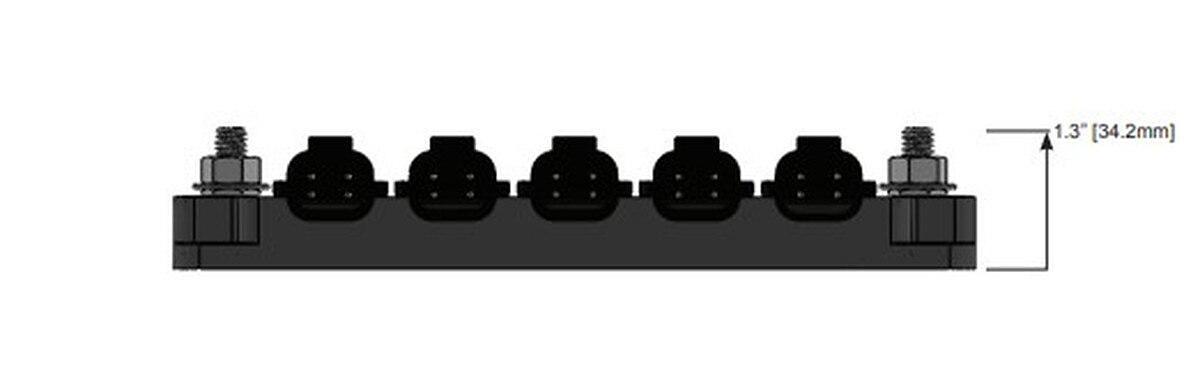

5/16 in power lugs

IP67 washdown rated enclosure

The SCM-PD4CH is a 4-position power distribution module that provides a convenient way to connect and power to four Shadow-CasterTM underwater lights. Digital overcurrent protection for each output insures safe operation of multiple lights and provides an easy way to manage the current needs of multiple light installations. The SCM-PD4CH is housed in a compact IP67 enclosure box that is ideal for mounting in bilge and wet locations.

What's in the Box:

4 channel power control box

Mounting hardware 4 #8 PH SS x.5 in

Prewired mating connectors

Standard 3 year warranty

InstallationManual

DataSheet
