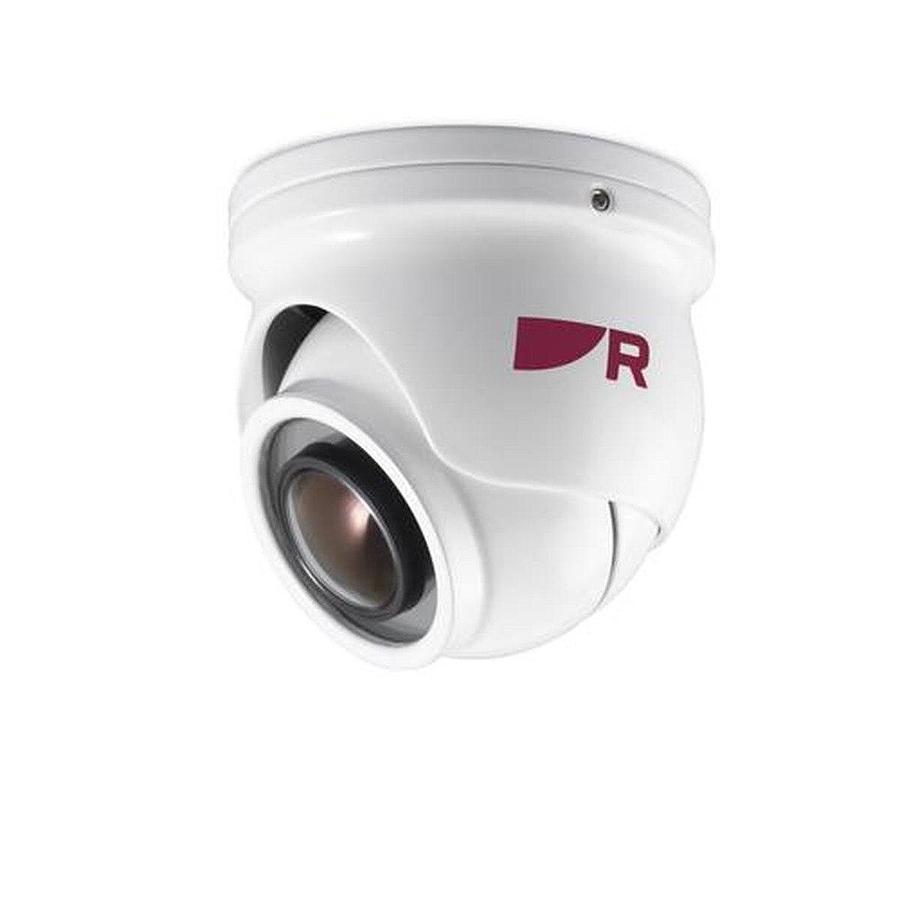

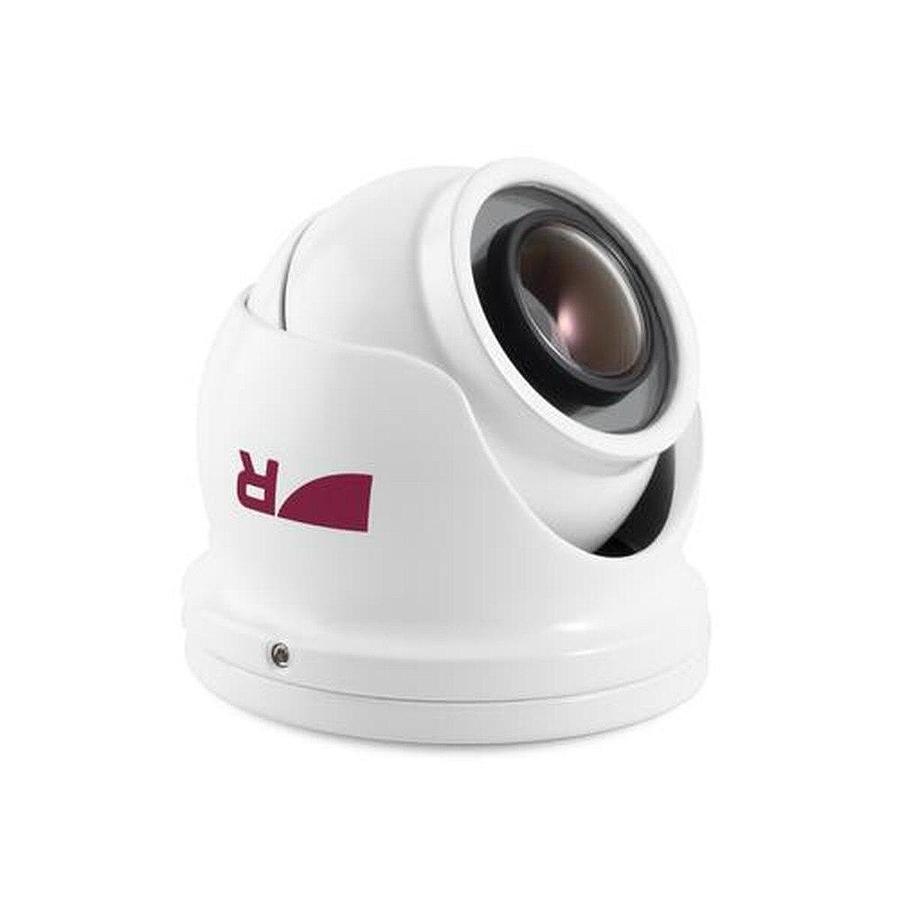

Raymarine CAM300 Eyeball CCTV Day and Night Video IP Camera

Raymarine CAM300 Video Camera

Model: E70660

View up to 4 CAM300 video streams simultaneously on single Axiom display

3MP CMOS sensor delivers up to 1080p resolution

Ultra-compact size blends seamlessly with your vessel

Built-in infrared emitters for excellent near-field low light visibility up to 33 ft (10 meters)

Image flip and invert functions for ball-up/ball-down installation and reverse video system applications

Easy to install with either direct 12-volt connection or single cable Power over Ethernet (POE

Rugged IP66 enclosure for below and above deck marine installations

The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transformsAxiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine theCAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints and chart objects on the Axiomvideo display.

Specifications
Nominal supply voltage

12 V DC
Operating voltage range	10.8 V DC to 15.6 V DC
Power consumption	1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON)
Power connection	C power cable or POE (Power over Ethernet)
ENVIRONMENTAL SPECIFICATION
Operating temperature	-30C to +60C (-22 degF to 140 degF)
Waterproof rating	IP66
PHYSICAL SPECIFICATION
Dimensions	Base diameter: 59.5 mm (2.34 in), Height: 52.9 mm (2.08 in)
Weight	0.420 kg (0.926 lbs)
VIDEO
Video Processing	H.264 Codec / Dual Stream
Illumination	6 x 850nm Infrared - 10 meter range
Frame Rate	25 fps
Resolutions	2304 x 1296 (3MP) Max
ONVIF Conformance	Profile S
Sensor / DSP	1/4 in CMOS Sensor
Field of View	1.8mm Standard (160 deg HFOV x 130 deg VFOV)
COMPATIBILITY
Axiom display compatibilty	Units running LightHouse 4.2 or later

What's in the Box:

CAM300 - includes an approximate 670 mm (2.2 ft) fitted cable, featuring an RJ45 (male) and power connector

Mounting screws (3 x)

Documentation

Hex wrench (Allen key)

Waterproof gasket
