Description

Raymarine i60 Instrument Displays Stylish displays for sailboaters!

The new i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats.

Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Features
  • Large analogue dials
  • Red backlighting for improved visibility
  • SeaTalk and SeaTalkng interfaces
  • NMEA2000 (compatible) interface
  • Built-in transducer interface
  • 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
  • Large controls for ease of use at sea
  • Low power consumption
  • Multiple data source support eliminates potential data conflicts
  • Front mounted design for simple installation
    • Raymarine i60 Instrument Displays

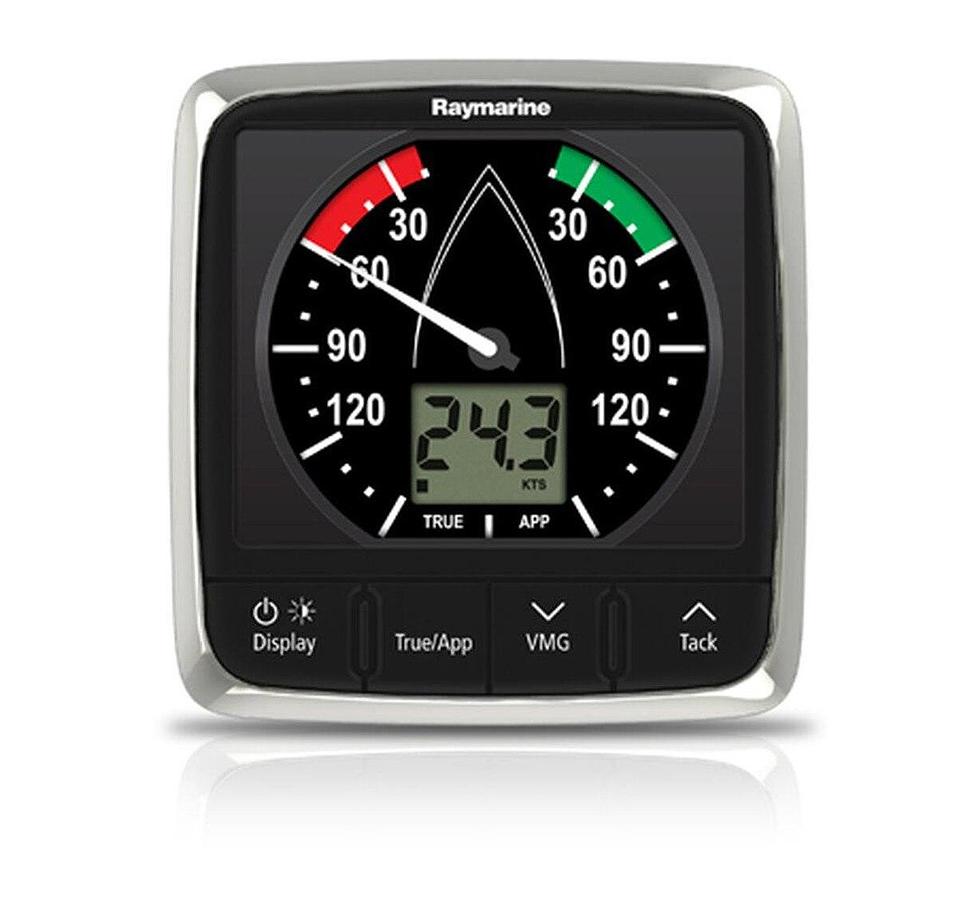

    Raymarine i60 Wind Instrument Display
  • Analogue and digital data
  • Calculates apparent (relative) and true wind speed/angle (true wind requires SeaTalk speed through water data)
    • Raymarine i60 Close Hauled Wind Instrument Display
  • Magnified 20 deg - 60 deg display
  • The perfect instrument when a single degree can make all the difference

    • i60 Wind

    i60 Close Haul Wind

    E70061

    E70062

    12V DC
    Operating Voltage

    Range

    		 10 - 16V DC
    Power Consumption typically <1W (display only) and 2.4W maximum with transducer connected
    Current Consumption 45 to 65mA (display only) and 200mA maximum with transducer connected
    Operating Temperature Range -20 degC to +55 degC
    Storage Temperature -30 degC to +70 degC
    Relative Humidity up to 93%
    Waterproofing Standard IPX6
    Connections2 x SeaTalkng and transducers
    ConformanceEurope 2004/108/EC

  • FlushTemplate
  • OwnersManual

    • Specifications

    ManufacturerWintron Electronics
    ConditionNew
    Stock NumberRAYE70061

    Documents
