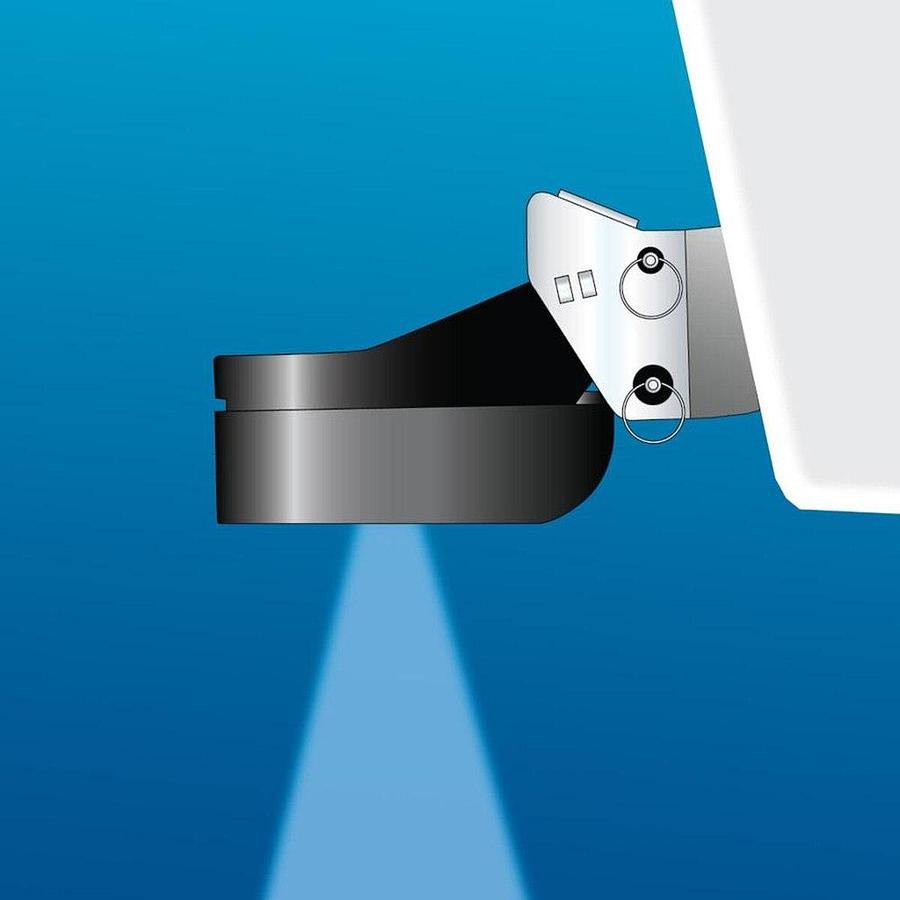

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount

Model: A80804

Depth and fast-response water-temperature sensing

1 kW of power

High frequency: 150 to 250 kHz - Constant 25 deg beamwidth - Maximum depth of 152 m (500 feet)

100 kHz of total bandwidth from one transducer

Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth

Stainless steel bracket for installation on outboard or inboard/outboard powered boats

Recommended for use on planing and displacement hulls

SEALCASTTM, seamless, urethane housing for long life in the water

Also available as thru-hull TiltedTM Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts

Patented Xducer ID(R) technology

Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25 deg beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500 feet).

Specifications
Power Rating

1 kW
Transom Angle	3 deg to 21 deg
Functions	Depth, Temperature
Max Vessel LOA	Up to 10 m (33 feet)
Acoustic Window	Urethane
Common Use	Leisure/Yachting, Fishing
Freq Hi Wide	150-250 kHz
High-Wide Beamwidth	25 deg
Housing	Urethane/Stainless Bracket
Hull Material	Compatible w/ all hull materials
Max Depth	150 m (500 feet)
Mounting Style	Transom
Retractable housing	No
Single or Dual Frequency	CHIRP-Ready Single-Band
Tilted Element	No
Weight:	4.2 kg (9.2 lb.)

Dimensions
