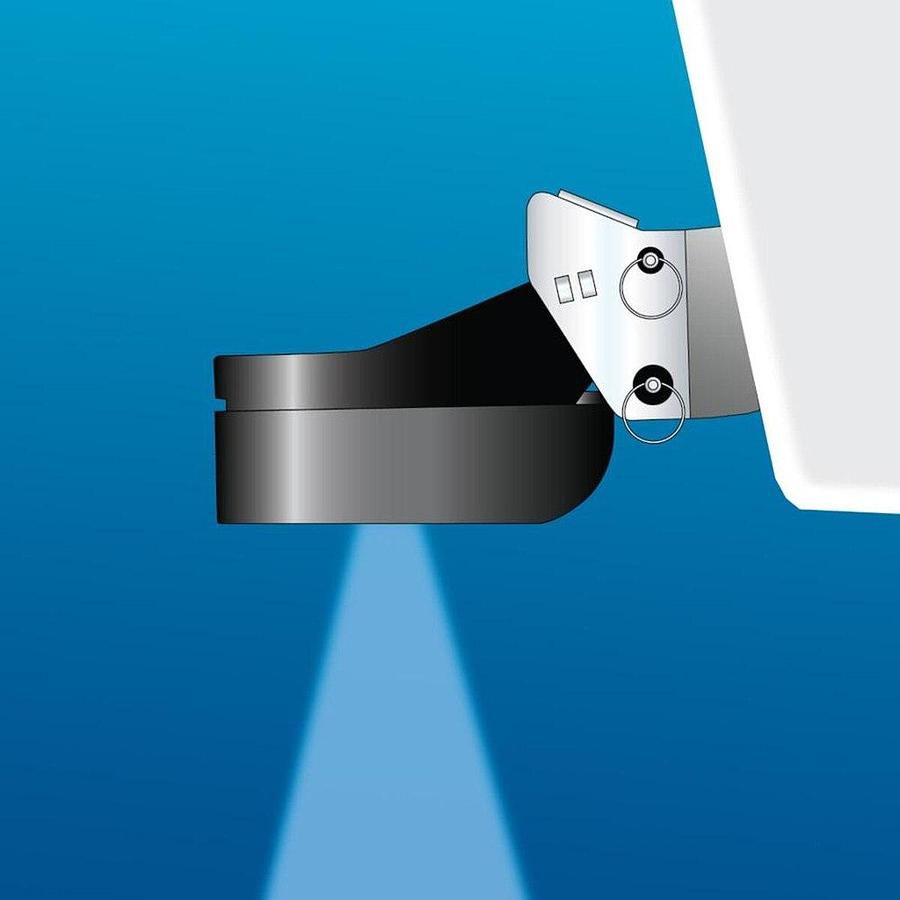

Raymarine TM185MW 1Kw Depth and Temperature CHIRP Transom Mount

Raymarine TM185MW 1Kw Depth and Temperature CHIRP Transom Mount

Model: A80803

Depth and fast-response water-temperature sensor

1 kW with depth tracking down to 400 m (1,300 feet)

Medium frequency: 60-100 kHz - 57 deg to 73 deg beamwidth (port/starboard) - 16 deg average fore/aft

40 kHz of total bandwidth from one transducer

Medium frequency for superior mid-depth performance and excellent fish-target separation

Simple installation on transom of the boat

Great performance at boat speeds below 30 knots

Easy maintenance and low-cost replacement

Exclusive Xducer ID(R) technology

AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar's new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60?100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR's most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

Specifications
Power Rating

1 kW
Transom Angle	2 deg to 22 deg
Functions	Depth, Temperature
Acoustic Window	Urethane
Cable-Length	9 m (30 feet)
Common Use	Leisure/Yachting, Fishing
Country of Origin	USA
Freq Med Wide	60-100 kHz
Housing	Urethane/Stainless Bracket
Hull Material	Compatible w/ all hull materials
Max Depth	400 m (1300 feet)
Medium Frequency	60-100 kHz
Medium-Wide Beamwidth	57 deg to 73 deg beam p/s 16 deg average f/a
Mounting Style	Transom
Power Rating	1 kW
Retractable housing	No
Single or Dual Frequency	CHIRP-Ready Single-Band
Tilted Element	No
Weight	4.2 kg (9.2 lb.)
