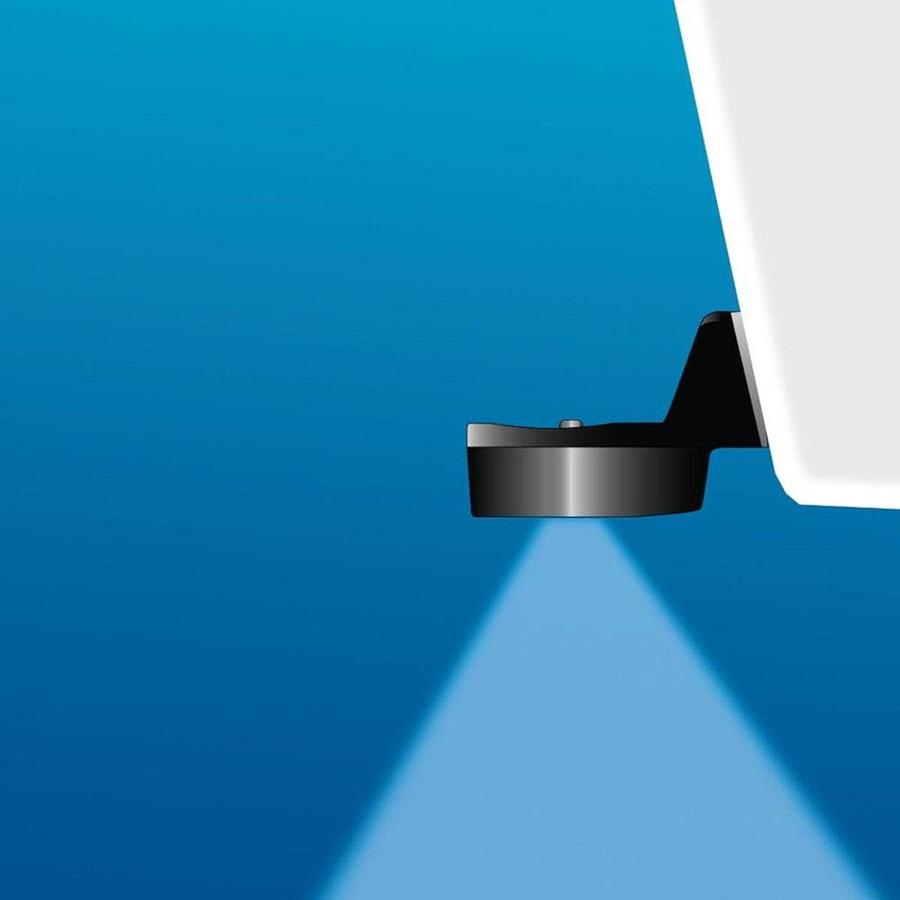

Raymarine TM1150M 1Kw Depth and Temperature CHIRP Transom Mount

Raymarine TM1150M 1Kw Depth and Temperature Depth and Temperature

Model: A80806

Depth and fast-response water-temperature sensing

300 W of power with a maximum depth of 183 m (600 feet)

Medium frequency: 95 to 155 kHz - 26 deg to 17 deg beamwidth put more energy on targets for great target separation

60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing

Plastic release bracket protects housing from frontal impact

Recommended for outboard or inboard/outboard powered boats

Recommended for planing hulls

Also available as a thru-hull (B150M) mount

Patented Xducer ID(R) technology

Airmar's TM150M delivers a great combination of shallow and mid-depth performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600 feet) with ultra-clear target resolution. Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish-ideal for freshwater, inshore, or coastal fishing in shallow to medium depths. The TM150M is an excellent choice for freshwater and saltwater boats up to 8 m (25 feet).

Specifications
Power Rating

300 W
Transom Angle	3 deg to 20 deg
Functions	Depth, Temperature
Max Vessel LOA	Up to 8 m (26 feet)
Common Use	Leisure/Yachting, Fishing
Housing	Urethane
Max Depth	183 m (600 feet)
Medium Frequency	95-155 kHz
Medium Frequency Beamwidth	26 deg-17 deg
Mounting Style	Transom
Retractable housing	No
Single or Dual Frequency	CHIRP-Ready Single-Band
Tilted Element	No
Weight	0.45 kg (1.0 lb.)

DataSheet

InsallationManual

Dimensions
