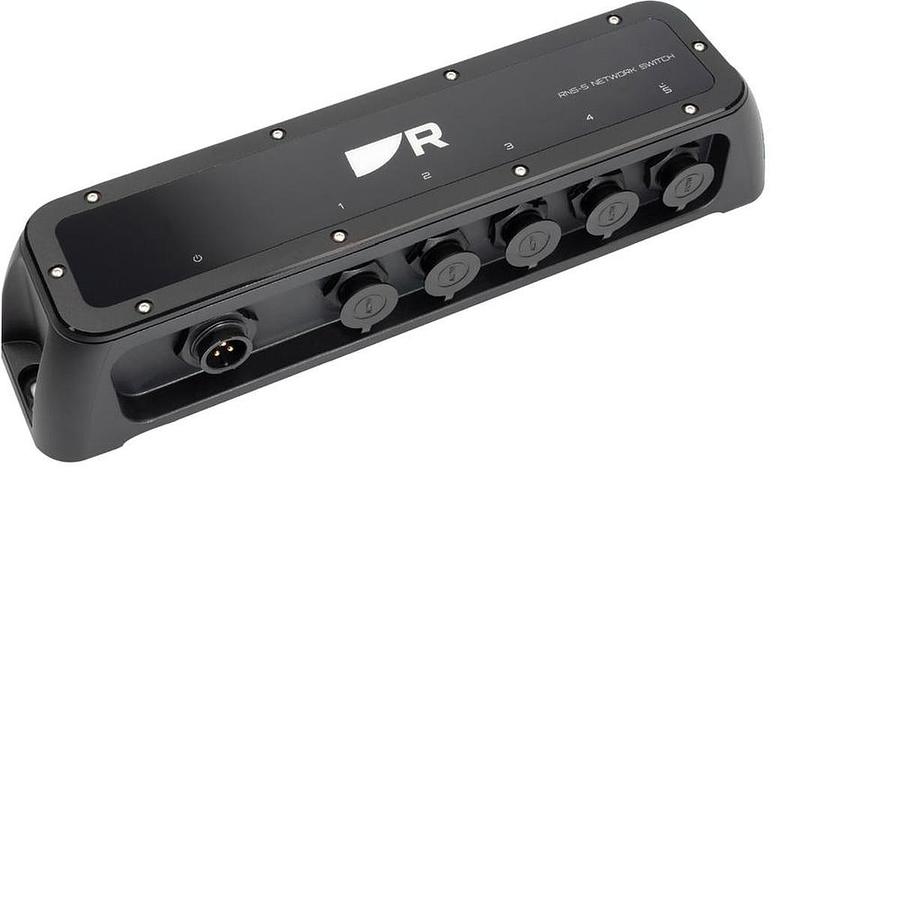

Raymarine RNS-5 Network Swtich

Raymarine RNS-5 5 Port raynet network Switch

Model: A80731

5 RayNet Ethernet gigabit ports for fast and reliable connectivity

Rugged IPX6 and IPX7 construction

Reliable, waterproof RayNet connector Ethernet cable ports

Designed for simple bulkhead mounting

LED power and network port status indicators

Unmanaged- simply plug and play with Raymarine devices

No complicated setup or configuration

The RNS-5 network switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.

Specifications
Nominal supply voltage

12 or 24 V dc
Operating voltage range	9 to 32 V dc
Power Consumption	<2.5 watts <600mA @12V
ENVIRONMENTAL SPECIFICATION
Operating temperature range	-25 degC (-13 degF) to + 55 degC (131 degF)
Storage temperature range	-30 degC (-22 degF) to + 70 degC (158 degF)
Humidity	up to 93% @ 40 degC (104 degF)
Water ingress protection	IPx6
PHYSICAL SPECIFICATION
Dimensions (w x h x d)	286 mm (11.26 in) x 69 mm (2.72 in) x 55 mm (2.17 in)
Weight	.36 Kg (.79 lbs)
NETWORK
Protocals	RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable
Connection Speed	1 Gigabit
Number of Ports	5

What's in the Box:

Raymarine RNS-5 Network Swtich

DataSheet
