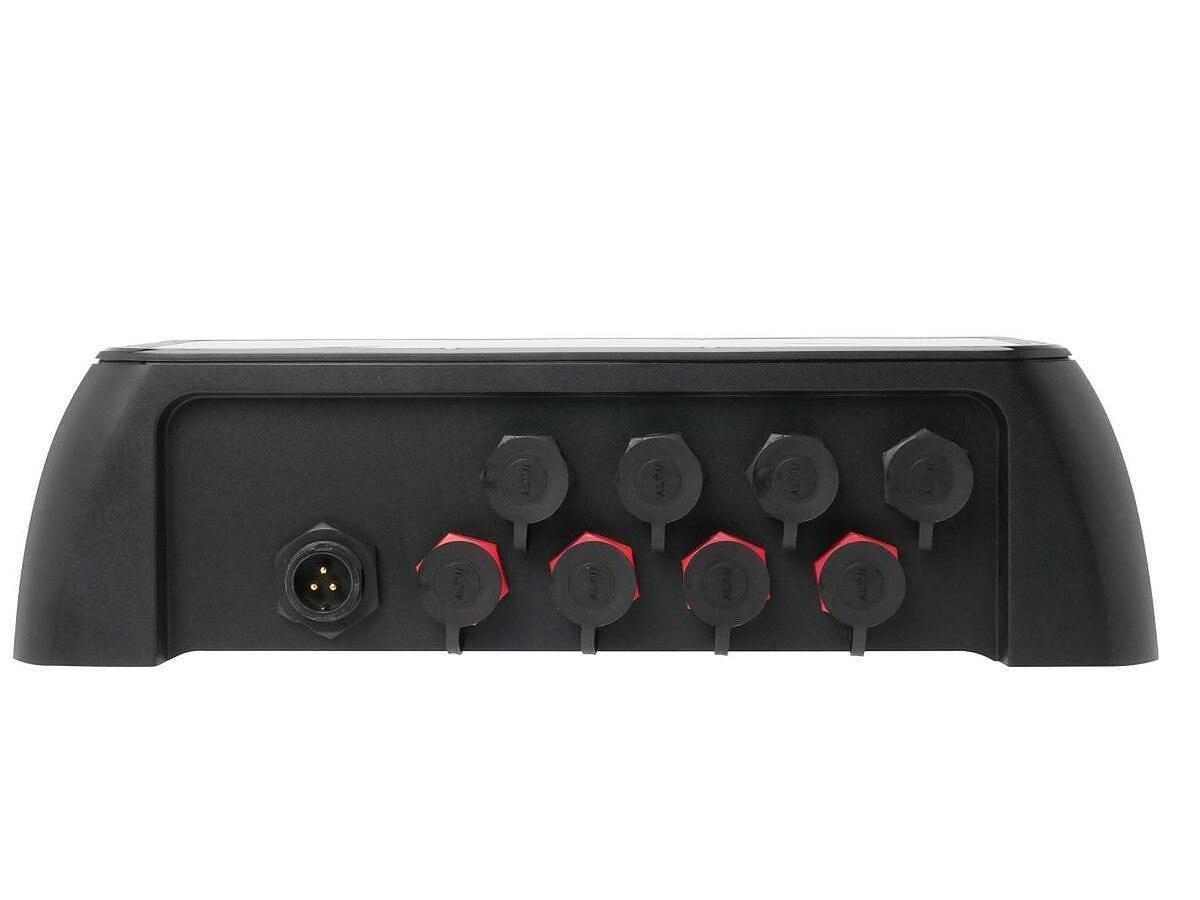

Raymarine RNS-8 8-Port Gigabit Network Switch

Raymarine RNS-8 8-Port Gigabit Network Switch

Model: A80732

8 RayNet Ethernet gigabit ports for fast and reliable connectivity

4 dedicated Power-Over-Ethernet (POE) ports for powering camerasand remotes

Rugged IPX6/IPX7 construction

Reliable, waterproof RayNet connector Ethernet cable ports

Designed for simple bulkhead mounting

LED power and network port status indicators

Unmanaged- simply plug and play with Raymarine devices.

Remote diagnostics and performance monitoring via web browser

For extended networks, up to 8 RNS-8 switches can be daisy-chainedtogether

The RNS-8 network switch is a premium network switch for integrated Raymarine chartplotter systems. Use the RNS-8 to integrate Axiom displays with radars, sonar modules, and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras andRMK-10 remote keypads. The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Multiple RNS-8 switchescan be daisy-chained together for larger systems. The RNS-8 is simple to install and requires no complicated setup.

Specifications
Nominal supply voltage

12 or 24 V dc
Operating voltage range	9 to 32 V dc
Power Consumption	160 W (Maximum) @ 12 V dc
Connectivity	3-pin male connector common with RNS-5 (1.5m power cable included)
ENVIRONMENTAL SPECIFICATION
Operating temperature range	-25 degC (-13 degF) to + 55 degC (131 degF)
Storage temperature range	-30 degC (-22 degF) to + 70 degC (158 degF)
Humidity	up to 93% @ 40 degC (104 degF)
Water ingress protection	IPx6 and IPX7
PHYSICAL SPECIFICATION
Dimensions (l x h x d)	Length: 287.63 mm (11.32 in).Height: 125.5 mm (4.94 in). Depth: 78 mm (3.07 in).
Weight	0.96 Kg (2.12 lbs)
NETWORKING
Protocols	RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable
Connection Speed	1 Gigabit
Number of Ports	8 x10 pin RayNet Connector'
POE (Power over Ethernet)	Yes. 4 POE ports support (lower, red nuts) PoE Classes 0 to 4, with 30 W maximum power availablefor each port
