Simrad HS75 GNSS Compass

Simrad HS75 GPS Compass

Model: 000-16143-001

NMEA 2000 certified

Supports GPS, GLONASS, Galileo, BeiDou, QZSS

Heading accuracy of 0.75 deg in a small form factor

SBAS

Fast start-up time

Dead-reckoning during temporary satellite outage

Plug and play with Simrad autopilot and radar systems

10 Hz heading and position update rate

Provides heading, position, SOG, COG, heave, pitch and roll

NMEA 2000 only

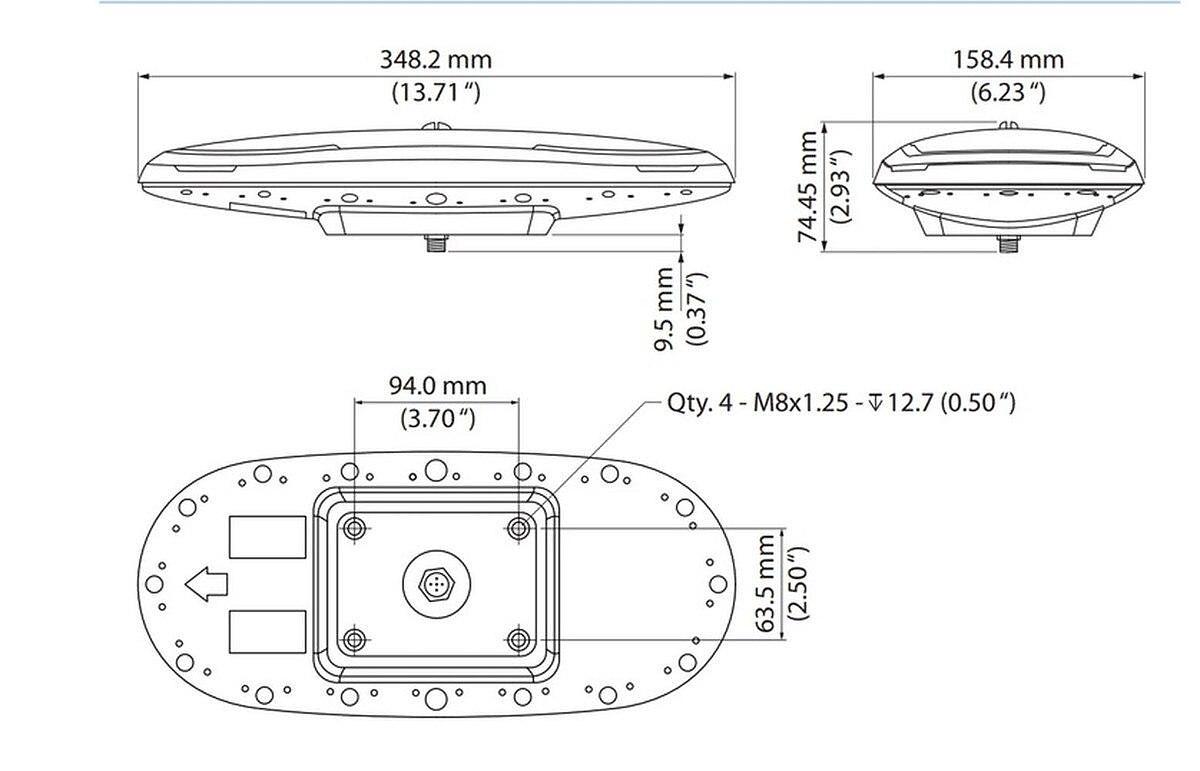

Mounts directly on flat surface

Mounting kits sold separately (000-15686-001 Pole Mount Bracket & 000-15687-001 Surface Mount Kit )

NMEA 2000 cable sold separately in different lengths

Well suited as autopilot heading source

Well suited as radar heading source

The HS75 GNSS Compass supports GPS, GLONASS, Galileo, QZSS, and BeiDou satellites. The GNSS antennas are separated by 20 cm (7.87 in) between phase centers, resulting in a heading performance of better than 0.75 deg RMS. The HS75 can provide heading and positioning updates at 10 Hz and delivers positioning accuracy of 0.6 m 95% of the time when using differential GPS corrections from Satellite Based Augmentation Systems (SBAS).

The six-axis rate sensor improves system performance and provides backup heading information in the event a GNSS heading is not available due to signal blockage. The sensor provides a substitute heading, accurate to within 1o per minute for up to three minutes.
