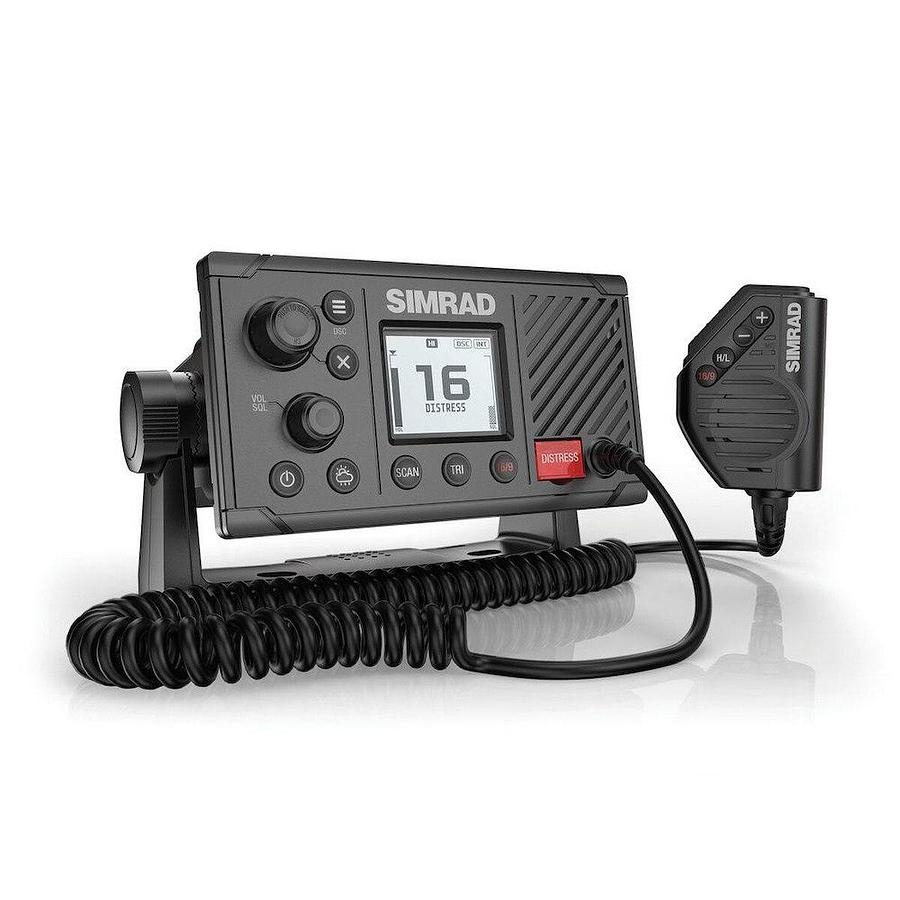

Simrad RS20S VHF With DSC

$423

or

Simrad RS20S VHF With DSC

Model: 00014491001

Built in GPS Antenna

Receive GPS data from a compatible GPS unit: SMA connector for optional external GPS antenna (000-13613-001)

Replaces the current RS12 entry level VHF

NMEA2000 connectivity for advanced functionality like backlight grouping when connected to Simrad MFD's

NMEA0183 connectivity

New front mountable mechanical design for easy installation

Low profile design to align with style of Simrad MFD's

Full inbuilt country specific channel banks

no requirement for LC programming or cloning

Specifications
Frequency Range: Transmit

156.025?157.425 MHz
Frequency Range: Receive	156.050?163.275 MHz
Number Of Channels	US / INT
Oscillate Mode	PLL
Modulation	FM(16KOG3E) DSC(16K0G2B)
Channel Spacing	25KHz
Frequency Stability	±5 PPM
Normal Working Voltage	+13.6 V DC
Minimum operating Voltage	≥10 V DC
Low battery detect Voltage	10.5 ± 0.5 V DC
Digital Selectivity Calling (DSC)	Class D
Intermediate Frequency : 1st	38.85/21.7 MHz
Intermediate Frequency : 2nd	450 KHz
Sensitivity : 12dB SINAD	≥-6 dBuV(EMF)
Squelch Sensitivity: at tight	≤ 6 dBuV(EMF)
Adjacent Channel Selectivity	≤70 dB
Intermodulation Response	≤68 dB
S/N at 3KHz Dev.	≥40 dB
Audio Output Power At THD 10%	≥2.5 W
Audio Distortion	≤10 %
Audio Response	+1 to -3dB of 6dB/octave from 300hz to 3kHz dB
Current Drain : Max Audio Power	≤1.5 A
Current Drain : Stand-By	≤0.5 A
2ND RX Sensitivity For 12dB SINAD	≤0 dBuV(EMF)
2ND RX bit error ratio@-107dBm	≤ 10-2
Frequency error	≤±1.5KHz
RF Power	Hi23W ± 2W :Lo 0.8W ± 0.2WHi23W ± 2W :Lo 0.8W ± 0.2W
Maximum DeviationMaximum Deviation	≤± 5 KHz
S/N at 3KHz Dev.	≥40 dB
Modulation Distortion ±3KHz	≤10 %
Audio Response at 1KHz Dev.	+1 to -3dB of 6dB/octave from 300hz to 3KHz
Spurious/Harmonic Emissions: Hi/LO	≤0.25uW
Modulation Sensitivity	≤15 mV
Current Drain At 12V DC	Hi Power ≤6A: Lo Power ≤1.5A
DSC TX deviation at 1.3K	2.6±0.26 KHz
DSC TX deviation at 2.1K	4.2±0.42KHz
ATIS TX deviation at 1.3 KHz	1.3±0.13 KHz
ATIS TX deviation at 2.1 KHz	2.1±0.21 KHz

What's in the Box:

RS20S VHF

Suncover

Mounting Bracket

Mounting Bracket Knobs

Fist Mic Clip

Flush Mount Kit

FlushTemplate

OwnersManual
