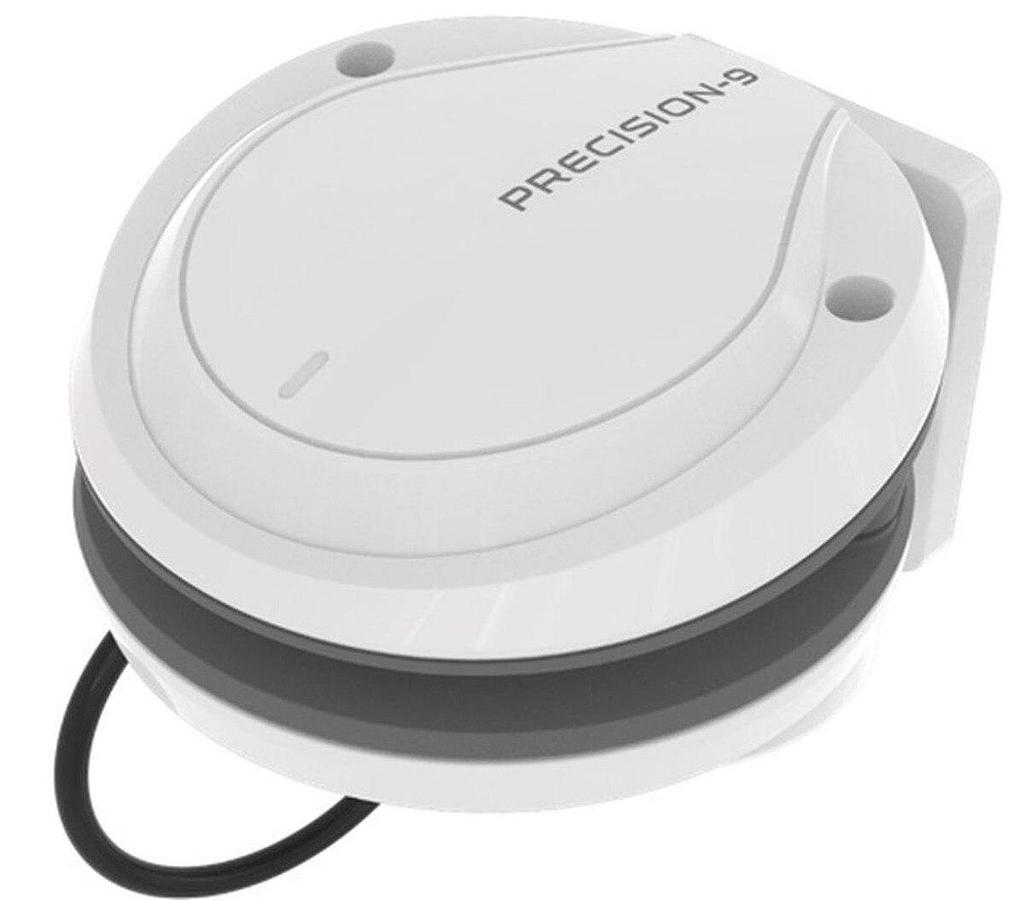

Simrad Precision 9 Compass

Simrad Precision 9 Compass

Model: 000-12607-001
UPC: 9420024145999

Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000(R)

Heading and ROT calculated using sensor data from 9 axes of rotation and motion

Accurate and reliable solid-state sensor technology

Heading accuracy of ±2 deg after calibration

Easily adjustable mounting bracket allows bulkhead or up-mast installation

IPX7 waterproof. Best in class.

Simple installation with a single NMEA 2000(R) connection

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

Specifications
Supply and Interface

8-16 V via NMEA 2000
Power consumption	0.4 W
NMEA 2000 Load Equivalence No. (LEN):	1
NMEA 2000 ports (input/output):	1
Calibration	Automatic (User Prompted)
Repeatability	± 1.0 deg (or better)
Roll/Pitch range	± 45 deg
Heading accuracy:	± 2 deg after calibration
Dynamic performance:	with random excitation of ± 10 deg at max 1 Hz: Heading error <2 deg: with heading step input of 90 deg at a rate of 10 deg/s Heading error 10 sec. after turn <2 deg
Environmental protection:	IPX7
Compass safe distance:	0.5 m (1.7 feet)
Temperature range operation:	-25 to +65 degC (-13 to +149 degF)
Temperature range Storage:	-30 to +70 degC - (-22 to +158 degF)
Dimensions	H: 36 mm (1.42 in), W & D: 119 mm (4.69 in)

What's in the Box:

Precision 9 Compass

N2K-T-RD - Micro-C T-connector

N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000(R) cable
