Simrad AC70 Autopilot Computer

Simrad AC70 Autopilot Computer

Model: 000-10186-001

AC70 Drive computer for rudder or propeller (i.e. Voith Schneider) for reversible motor or galvanic non-isolated solenoids.

Specifications
Power

12/24 V in
DRIVE	Output for Motor or solenoid command
DRIVE ENGAGE	Output for clutch/bypass valve or automode signal for oil flow valve etc
ALARM	Output for external alarm buzzer
NMEA 0183	in/out for IEC 61162-1, -2 and NMEA 0183
RUDDER	Input for frequency rudder feedback
REMOTE	Input for NFU steering lever
MODE	Input for external mode selector
SIMNET	Connection to CAN network

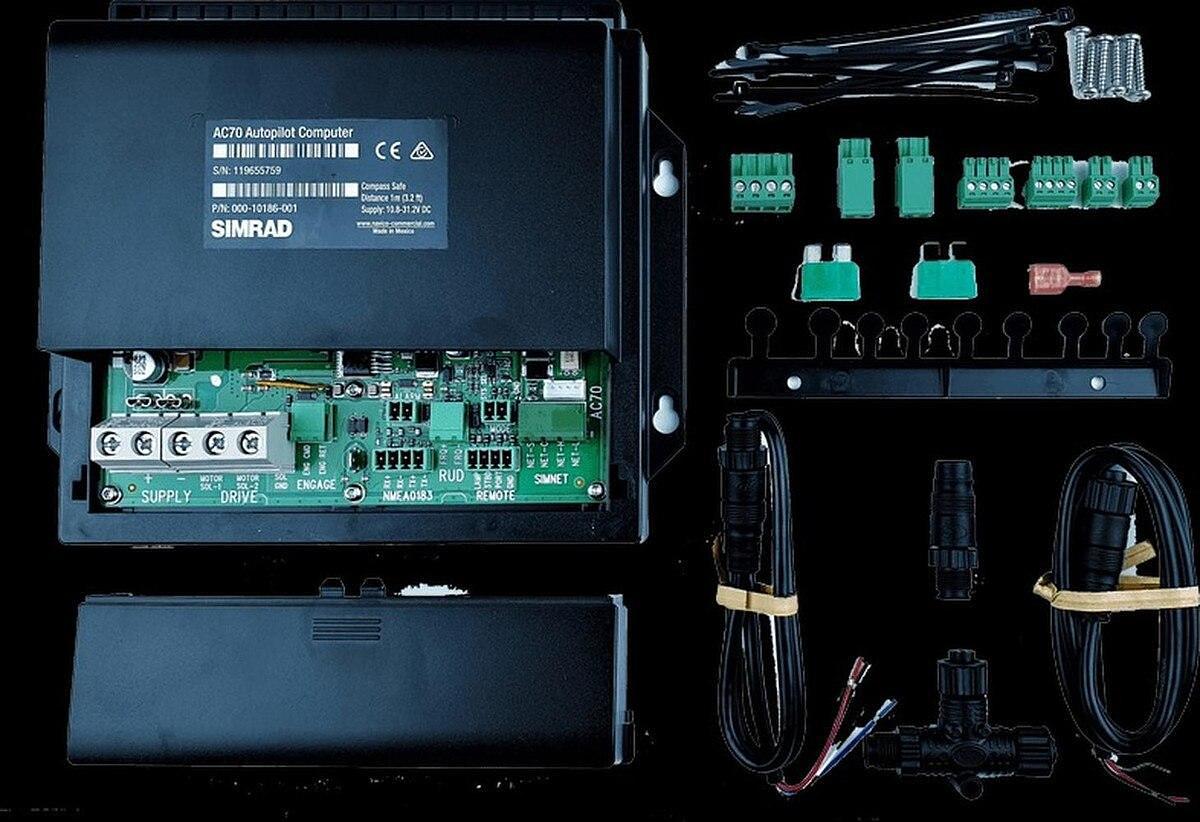

What's in the Box:

AC70 Course Computer

N2K Power Cable including 120 ohm Terminator

N2K Terminator Male

N2K Cable - 0.6m (2ft)

N2K T-Joiner
