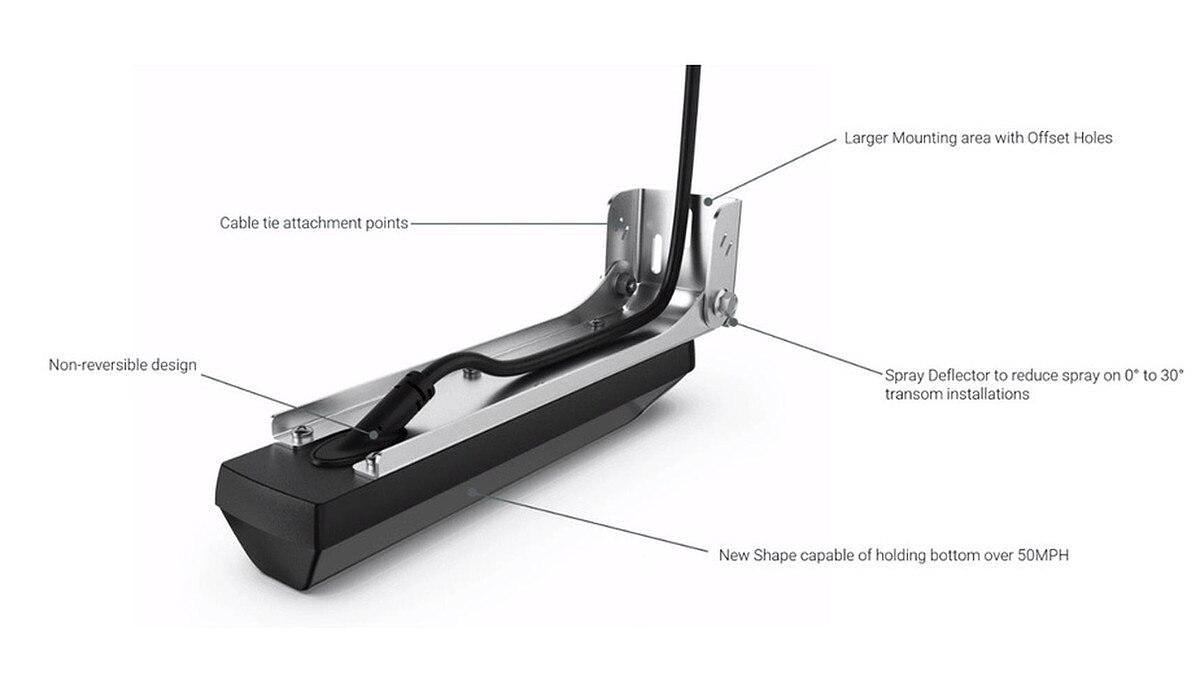

Lowrance Active Imaging HD3in1 Transducer

Lowrance Active ImagingTM HD 3-IN-1 Delivers CHIRP, SideScanTM and DownScan ImagingTM in one transducer. Comes with a 7.6m (25ft) cable with 9 pin connector

Model: 000-16062-001

MHz Scanning

High definition up to 1.2MHz SideScan and DownScan ImagingTM delivers the clearest images of fish and structure.

CHIRP Sonar

Experience superb clarity and target separation

New FishRevealTM View

Now available on SideScan* view, as well as DownScan ImagingTM.

Flexible Technology

Supports Medium and High CHIRP (83/200kHz) and 455/1.2MHz frequencies

Improved Clarity

Smart transducer design boosts your signal clarity.

Wide-Ranging Compatibility

Compatible with Lowrance HDS Pro. And, using an S3100 module, HDS LIVE, HDS Carbon and Elite FS.

Step up to the ultimate fishfinding clarity with new, high-definition Active ImagingTM HD sonar. Get the clearest images of fish and structure from Lowrance(R) CHIRP sonar, SideScan and DownScan ImagingTM, plus a new FishRevealTM SideScan* view, helping you identify fish targets on both sides of the boat, and beneath with DownScan FishReveal. *requires S3100 sonar module for Fish Reveal SideScan on HDS Pro Get game-changing clarity in the MHz range with new, ultra high-definition ActiveImagingTM HD.

Our clearest sonar ever, ActiveImagingTM HD delivers the highest-definition views of Lowrance(R) CHIRP, SideScan* and DownScan ImagingTM. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weed beds, ditches, drop-offs, and more

Get the best of CHIRP sonar and Imaging sonar on a single display with FishRevealTM. First introduced with DownScan ImagingTM, FishReveal is now available for the first time on SideScan*, making it quicker and easier to recognize fish targets alongside your boat. *The FishReveal SideScan view requires an optional S3100 sonar module

The ActiveImagingTM HD transducer not only delivers three key sonar technologies - Lowrance(R) CHIRP, SideScan, and DownScan ImagingTM - in one convenient package. It also features an all-new transducer design that boosts signal clarity and brings the underwater world to life on your screen.

*requires S3100 sonar module and relevant transducer on HDS Pro
