Lowrance Active Target Transducer Only

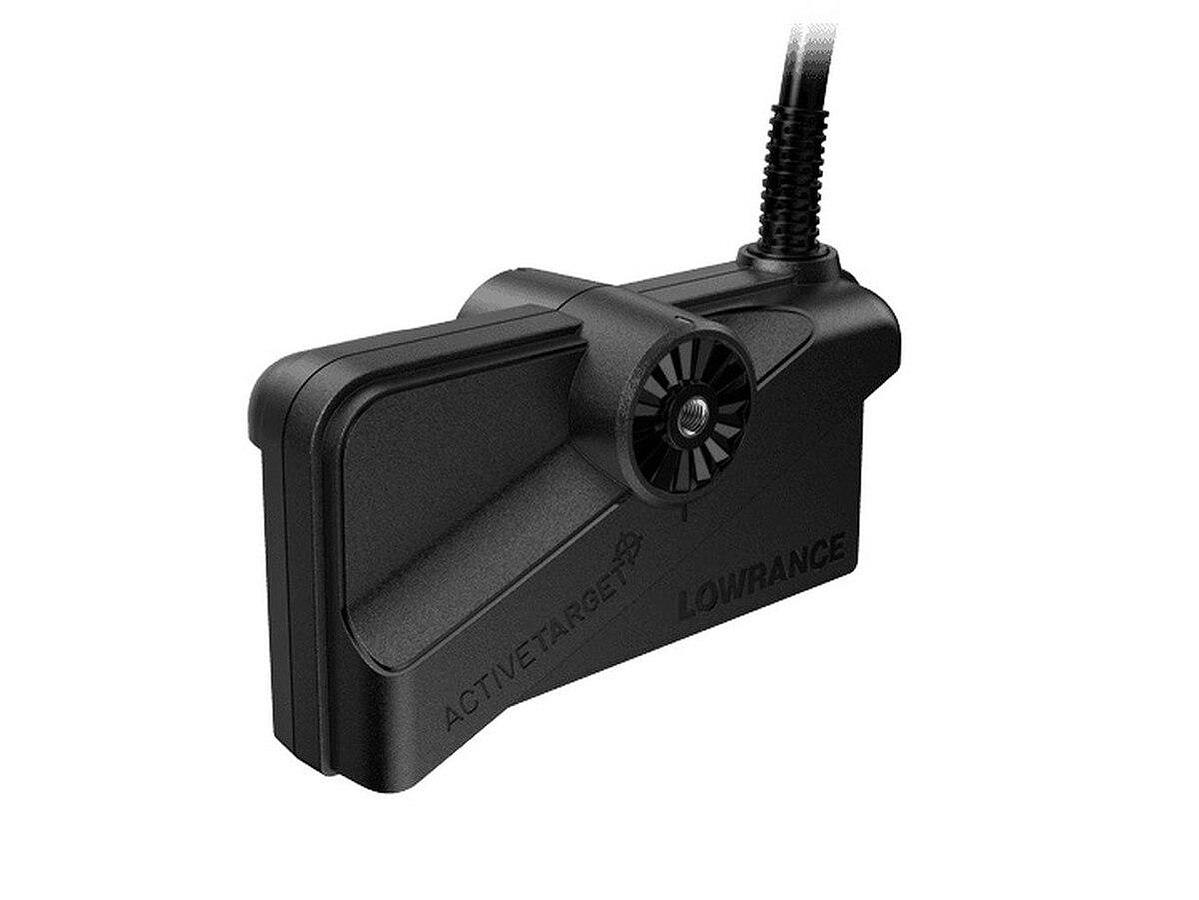

Lowrance ACTIVETARGET Transducer

Model: 000-15594-001

Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view - an ultra-wide, overhead view in front of your boat

See how fish are positioned in and around structure and watch them respond to your lure as it happens

High-resolution live images remove the guesswork from sonar interpretation

Know whether fish are active

Compatible with HDS LIVE, HDS Carbon and Elite FS

Watch high-resolution images of fish movements - tracking them as they swim in and around cover with ActiveTargetTM Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it's time to make an adjustment - information that is harder to get from traditional sonar or structure imaging.

Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.

ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fishfinder/chartplotters.

Specifications
Storage Temperature

-30 C To +70 C (-22 F To +158 F)
Water Temperature / Operating	0 C To +35 C (32 F To 95 F)

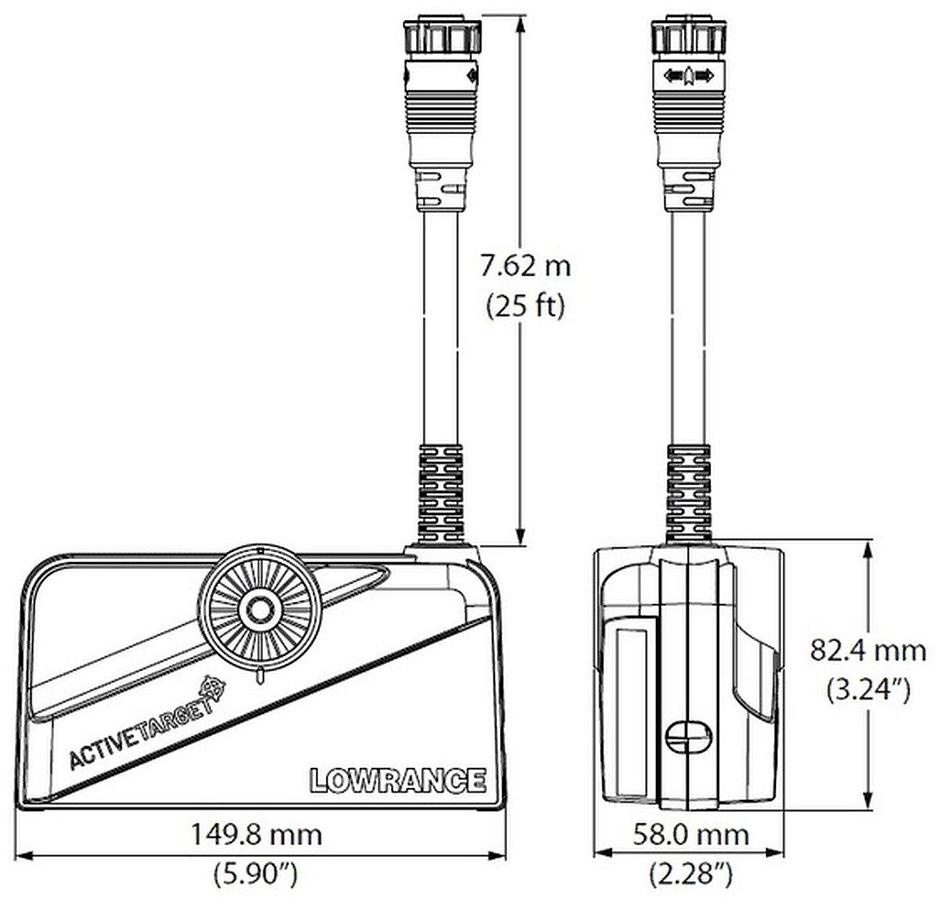

Physical
Weight	1.21 kg (2.67 lbs)
Cable Length	7.62 m (25 ft)
Mounting Options
Trolling Motor Shaft Mount	Included
Trolling Motor Forward/Down Mount	Included
Trolling Motor Scout Mount	Included
Transom Mount	Sold Separately
Beam Angle	18 Degrees x 135 Degrees

What's in the Box:

ACTIVETARGET Transducer

Trolling Motor Shaft Mount

Trolling Motor Forward/Down Mount

Trolling Motor Scout Mount
